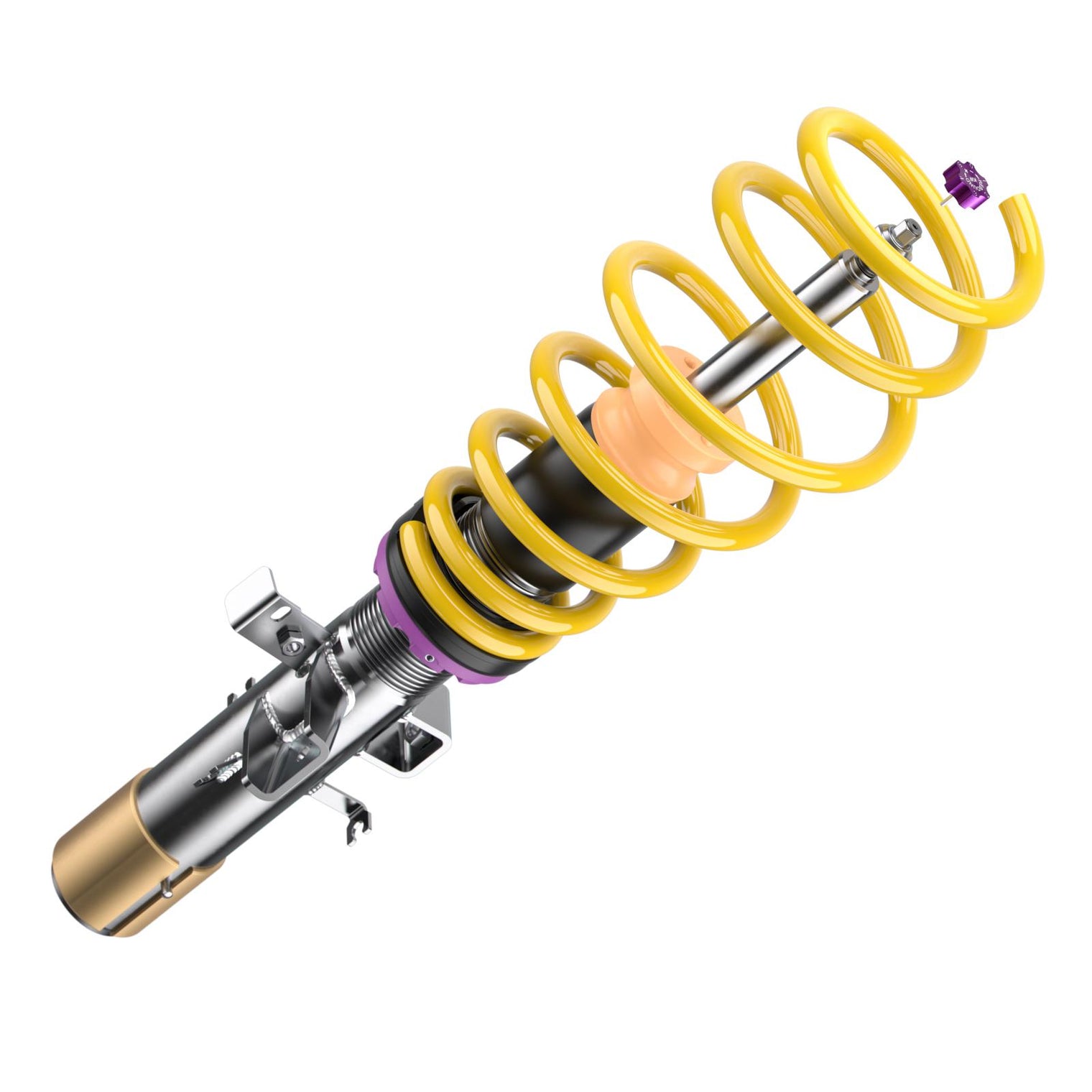

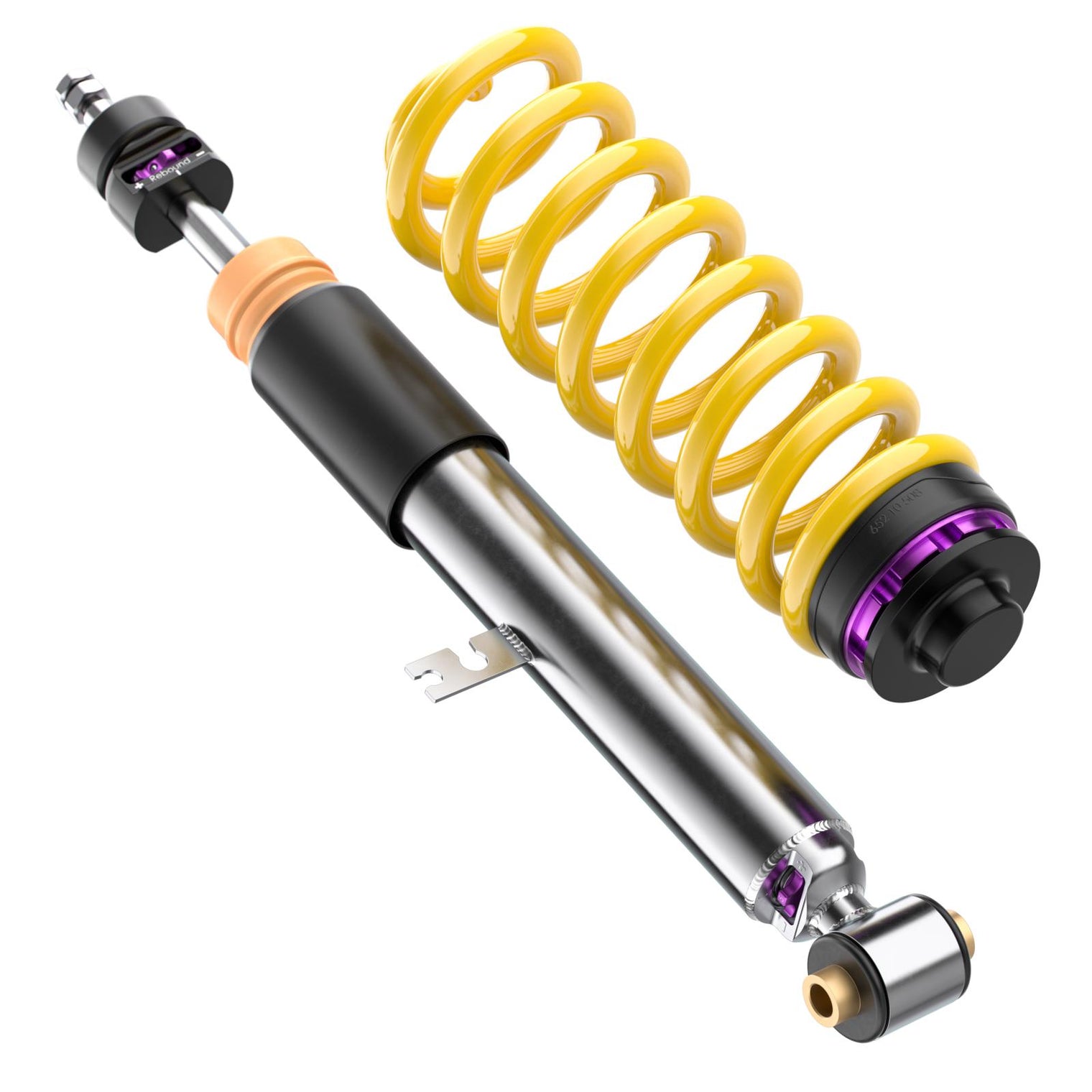

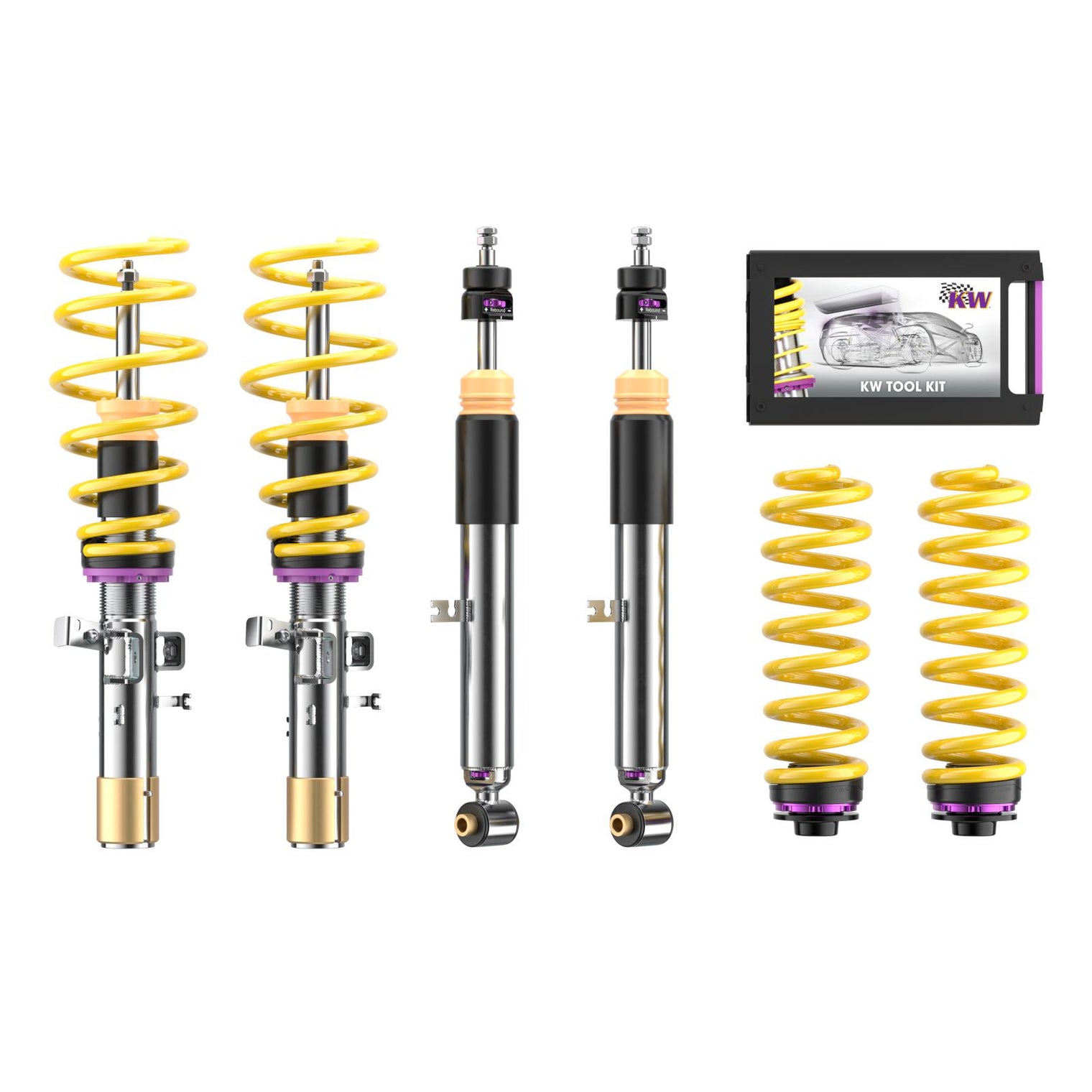

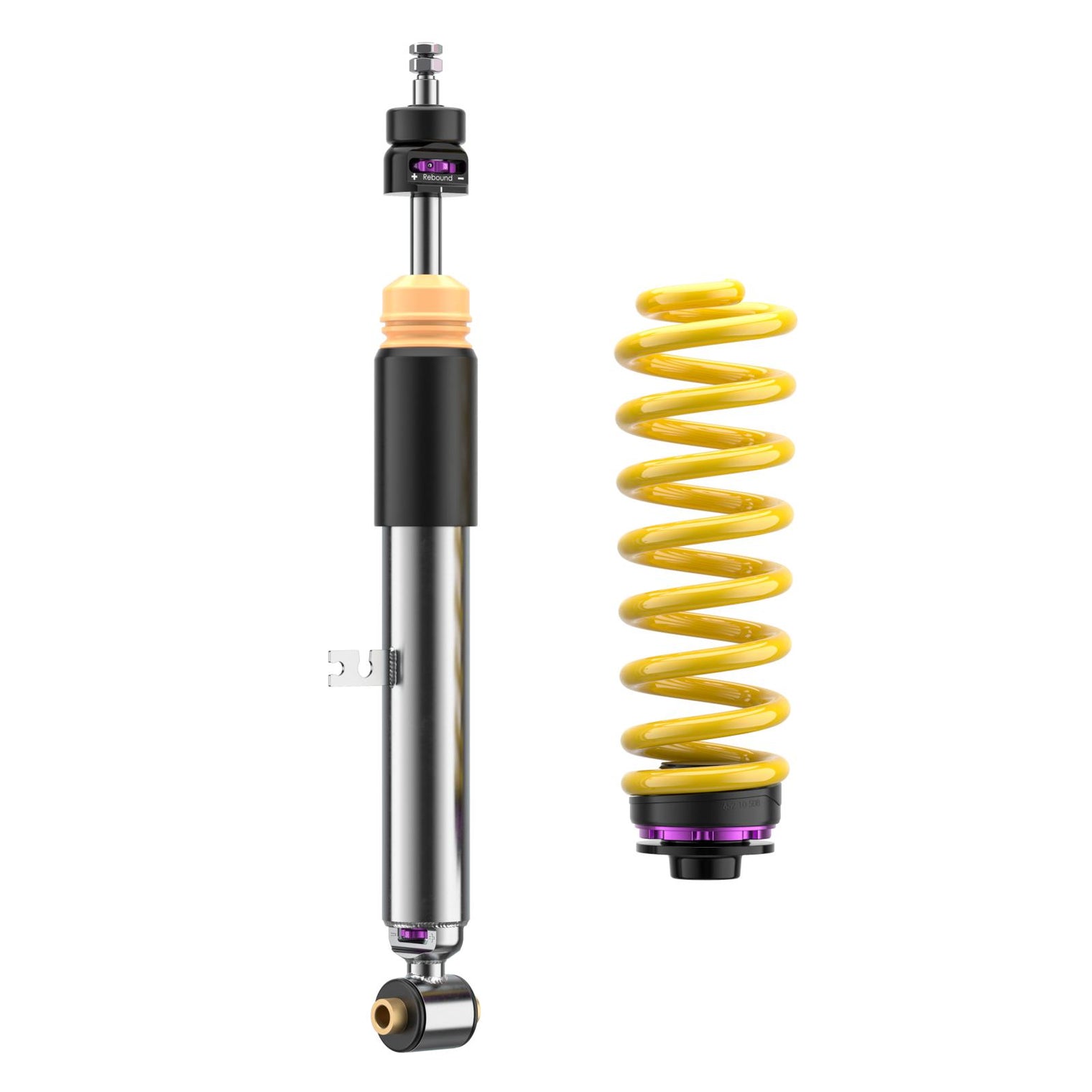

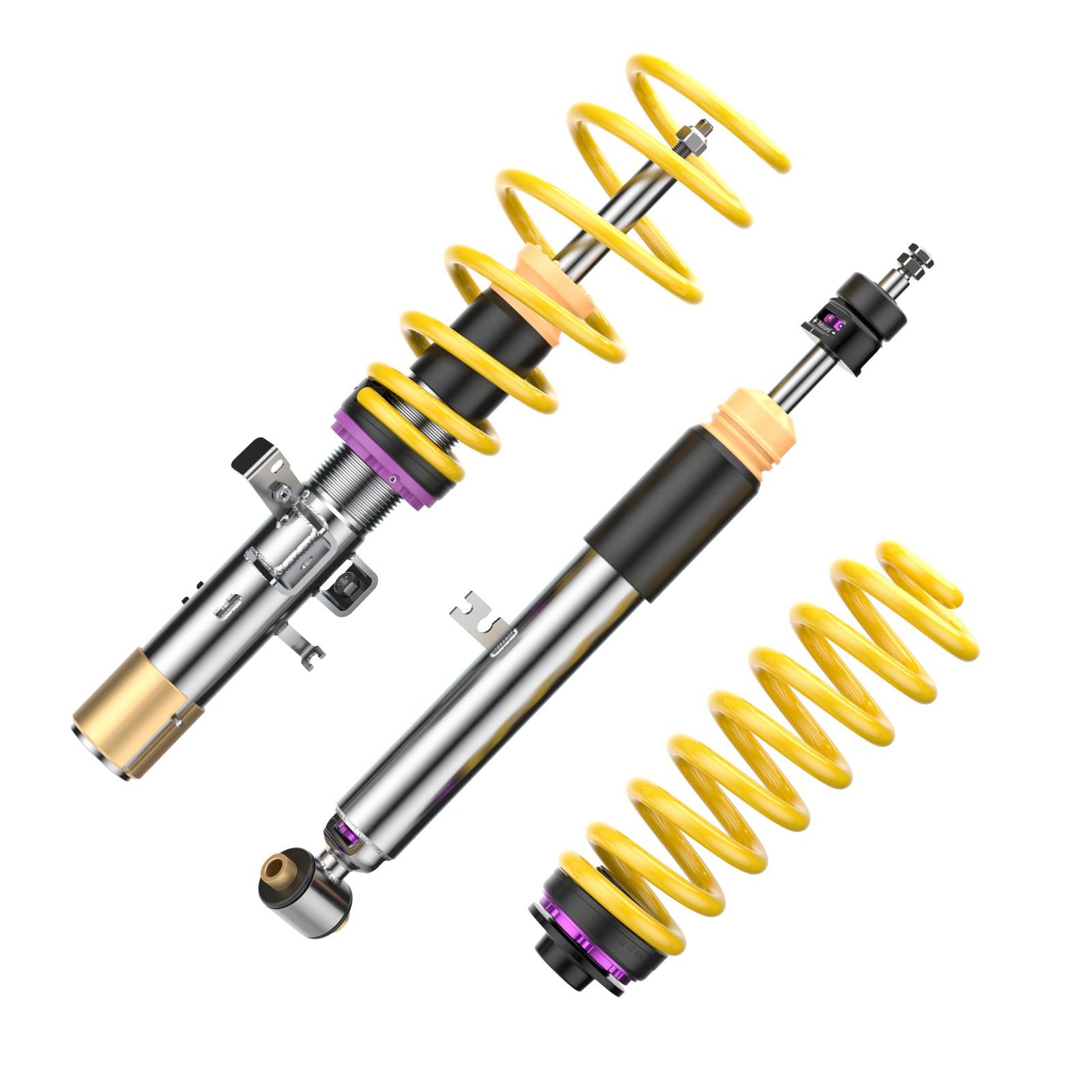

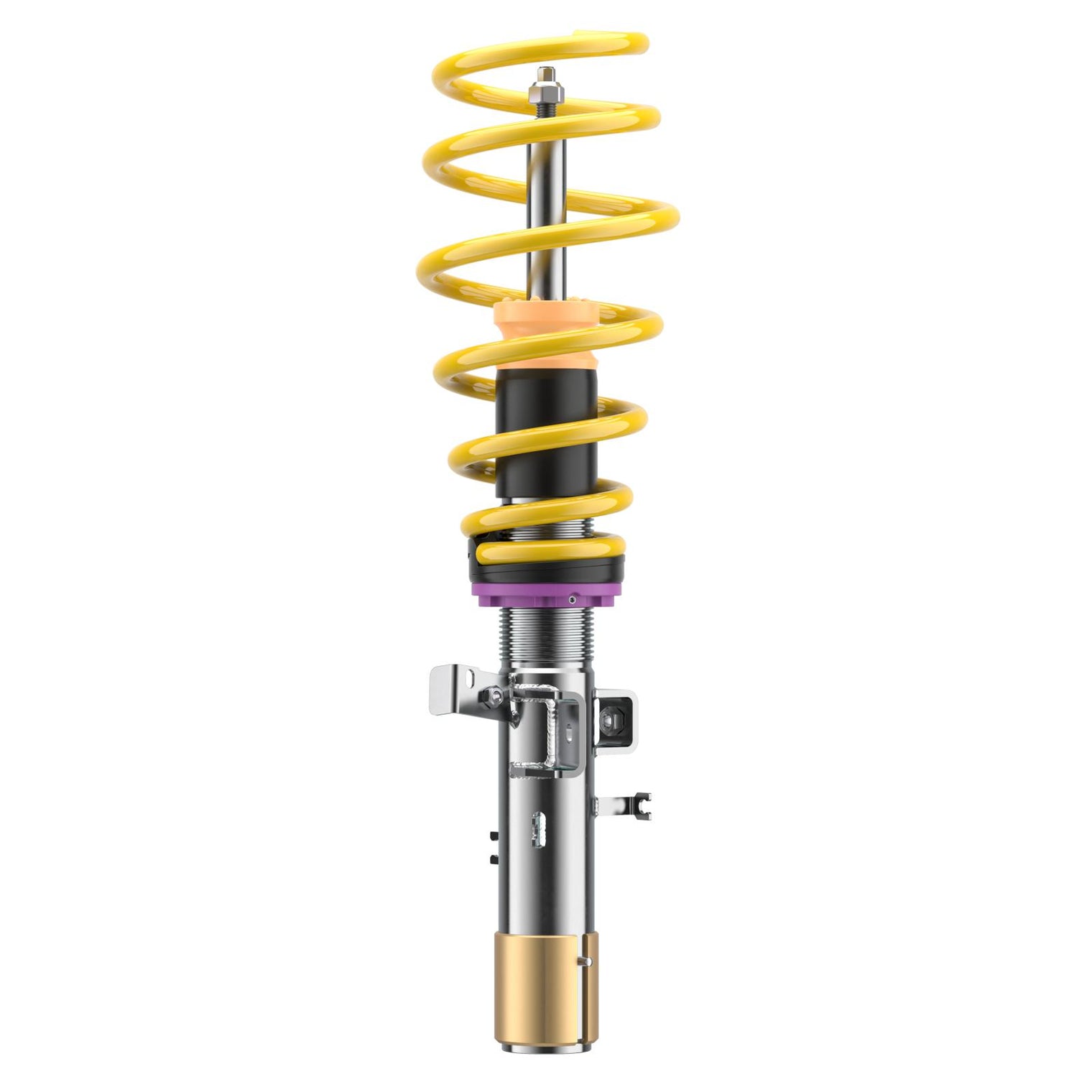

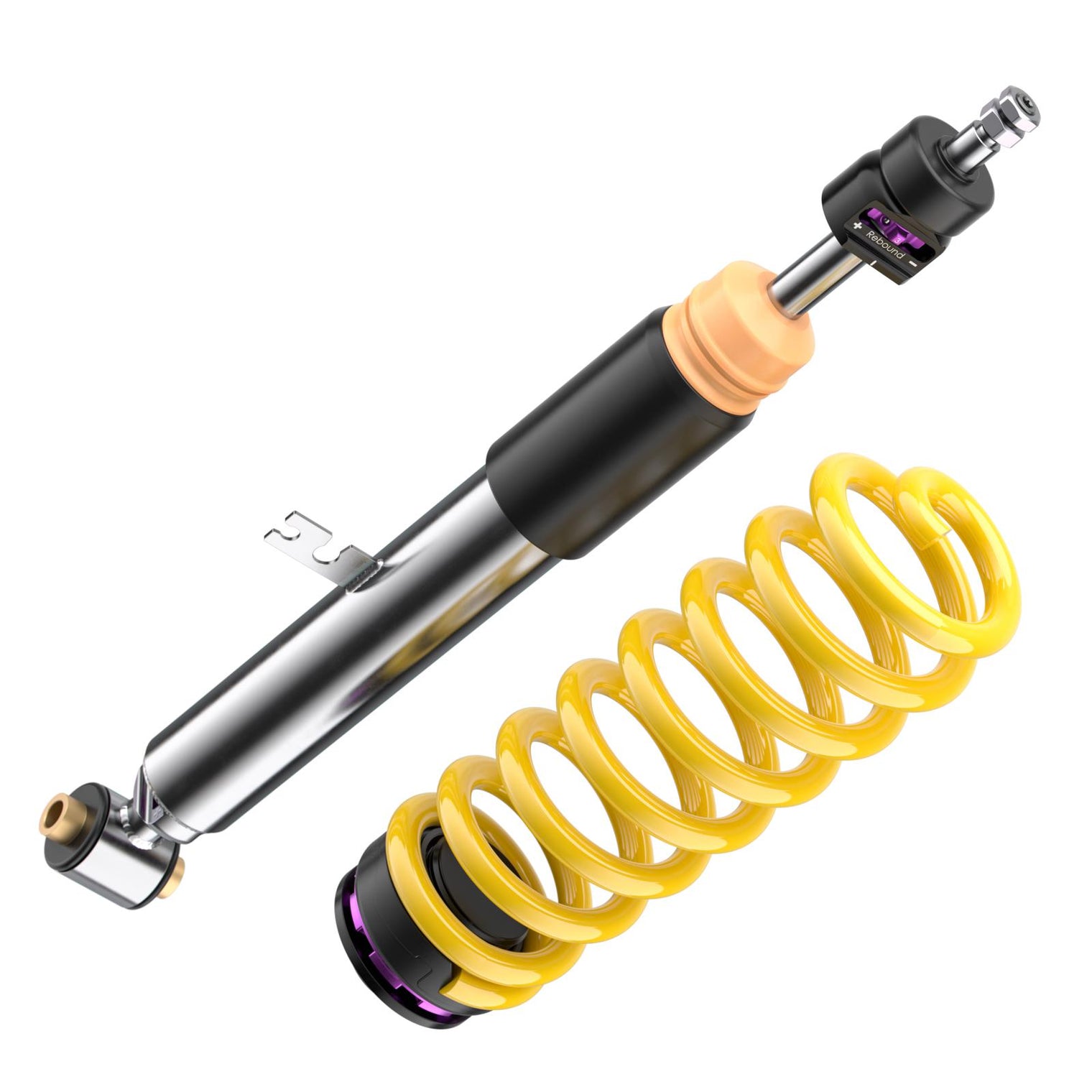

KW Suspensions - V3 Levelling Coilover Kit - Tesla Model 3 Highland

Invisible - but you can feel it! The KW Leveling suspensions are ideal for drivers who are not looking for maximum lowering, but seeking the driving dynamics and comfort of a KW Coilover suspension in combination with the almost original manufacturer’s series floor clearance.

The KW Leveling suspensions focus on the combination of increased driving dynamics and comfort in connection with a minimum lowering or, if desired, raising of the suspension. The KW Leveling suspensions are the ideal retrofit suspensions for frequent drivers on poorly developed roads or drivers that use their car mainly in metropolises and urban areas than have numerous speed bumps. The progressive suspension springs are designed to give their spring rate a plus in driving comfort. Accordingly, the KW Leveling suspensions have an adjustable, comfort-oriented basic damper tuning. If required, the KW leveling enables an adapted level regulation in the range of  5-20 mm.

The KW V3 Leveling suspension is the ideal retrofit option for drivers who are looking for everyday practicality, increased rolling comfort, and sportiness. The separately adjustable dampers in compression and rebound with their TVR-A and TVC-A technology allow extensive damper tuning. This makes it easy to additionally influence the steering behavior, directional stability, tire grip, and handling characteristics significantly for safe control at the limit and increased driving comfort.

Features

• Rebound and compression damping adjustable damper technology

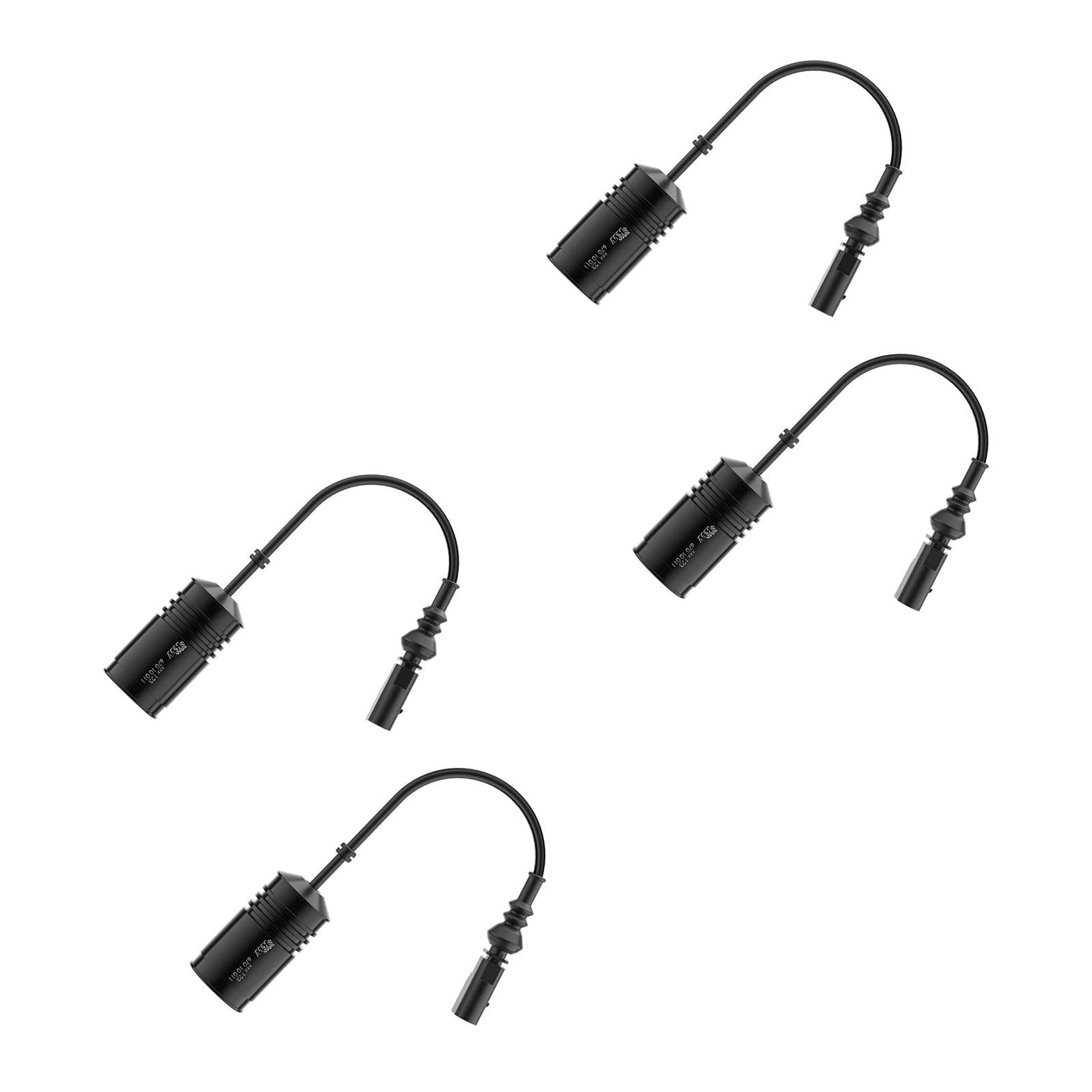

• KW EDC Code Isolators included
• Stainless steel technology "Inox-Line"
• Individual, continuous level regulation
• tested adjustment range
• High quality components for a long life
• Complete documentation for an easy handling
• Adjustable rebound damping with 16 exact clicks
• Adjustable compression damping with 12 exact clicks
• Unique, independent from each other working damping force adjustment

Features

• Independently adjustable dampening technology - rebound and compression dampening
• Front Lowering Range: 0"-0.75"
• Rear Lowering Range: 0"-0.75"
• Adjustable rebound dampening with 16 exact clicks
• Adjustable compression dampening with 12 exact clicks
• "inox-line" stainless steel technology
• Individual height adjustment
• German TUV-tested adjustment parameters
• High-quality components for long life
• Comprehensive documentation for ease of use
• Infinitely adjustable rebound dampening
• 14- level adjustable compression dampening
• Unique, independently functioning dampening power adjustment

TVR-A Technology
The two-stage, patented TVR-A (Twin Valve Rebound - Adjustable) technology enables a small volume of oil to flow through an adjustable, conically shaped, low-speed bypass during low damper speeds, while in the case of higher damper speeds, the main rebound stage valve opens allowing a larger volume of oil to flow. This provides a big improvement in terms of ride comfort without influencing the safety-relevant high-speed range. There are 16 precise clicks available for individual settings, so you can choose between more comfort or more body control.

TVC-A Technology
With 12 precise clicks, the KW Variant 3 coilovers utilize TVC-A (Twin Valve Compression - Adjustable) technology and can increase or decrease the flow of valve to achieve either more or less low speed compression dampening. During sudden high speed impulses the spring loaded needle valve and the spring loaded main valve open to their maximum valve cross section, acting as a digressive blow-off characteristic to avoid transmitting undesired forces through the suspension into the chassis. This provides a better platform for the vehicle body and at the same time offers more comfort than with conventional valve technology during high wheel acceleration. The dampers come preset to our baseline shock settings right out of the box providing an optimal starting place for your car while providing a wide adjustment window for true performance optimization.

Continuous Ride Height Adjustment
With KW Variant 3 coilovers you can achieve maximum lowering within an approved lowering range that ensures a proper functioning suspension with adequate travel after your car is lowered. Even after years of use you can easily adjust the ride height thanks to the dirt resistant trapezoid thread and composite adjustment collar.

 The Benchmark of Coilovers
As with all KW coilovers our engineers develop vehicle specific damper and spring specifications which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW Variant 3 coilover kit the driving experience is more dynamic and direct.

You are not buying a mass produced, generic coilover kit, a KW coilover has been developed specifically for your particular vehicle. As a manufacturer, KW uses only its own resources, high quality components and the damper technology that has all developed in-house. With the KW Variant 3 "inox-line" coilovers, rolling motion of the body will be reduced during compression giving you the benefit of more direct handling and confidence while driving.

Our Experience Means Your Driving Pleasure
For over 25 years, KW automotive has been the market leader and driving innovation as a manufacturer of individual suspension solutions for the road and in all types of motorsports. No matter where in the world, gearheads, automobile manufacturers and reputable tuners rely on our KW coilovers "Made in Germany".

Every KW coilover kit undergoes extensive stress testing before production and is developed and manufactured exclusively in our company headquarters in Fichtenberg, a small in town in Germany, to meet the high standards of our KW quality management. For us as a German manufacturer, it goes without saying that our KW coilover kits will exceed the original equipment manufacturer quality, and offer useful and innovative solutions. With an application list comprising more than 4,600 options KW guarantees an outstanding selection backed by our Limited Lifetime Warranty.

Features

• Independently adjustable dampening technology - rebound and compression dampening
• Front Lowering Range: 1.0" to 2.2"
• Rear Lowering Range: 1.0" to 2.0"
• Adjustable rebound dampening with 16 exact clicks
• Adjustable compression dampening with 12 exact clicks
• "inox-line" stainless steel technology
• Individual height adjustment
• German TUV-tested adjustment parameters
• High-quality components for long life
• Comprehensive documentation for ease of use
• Infinitely adjustable rebound dampening
• 14- level adjustable compression dampening
• Unique, independently functioning dampening power adjustment

Vehicles Supported
Tesla Model 3 Highland (AWD) Long Range & Performance
