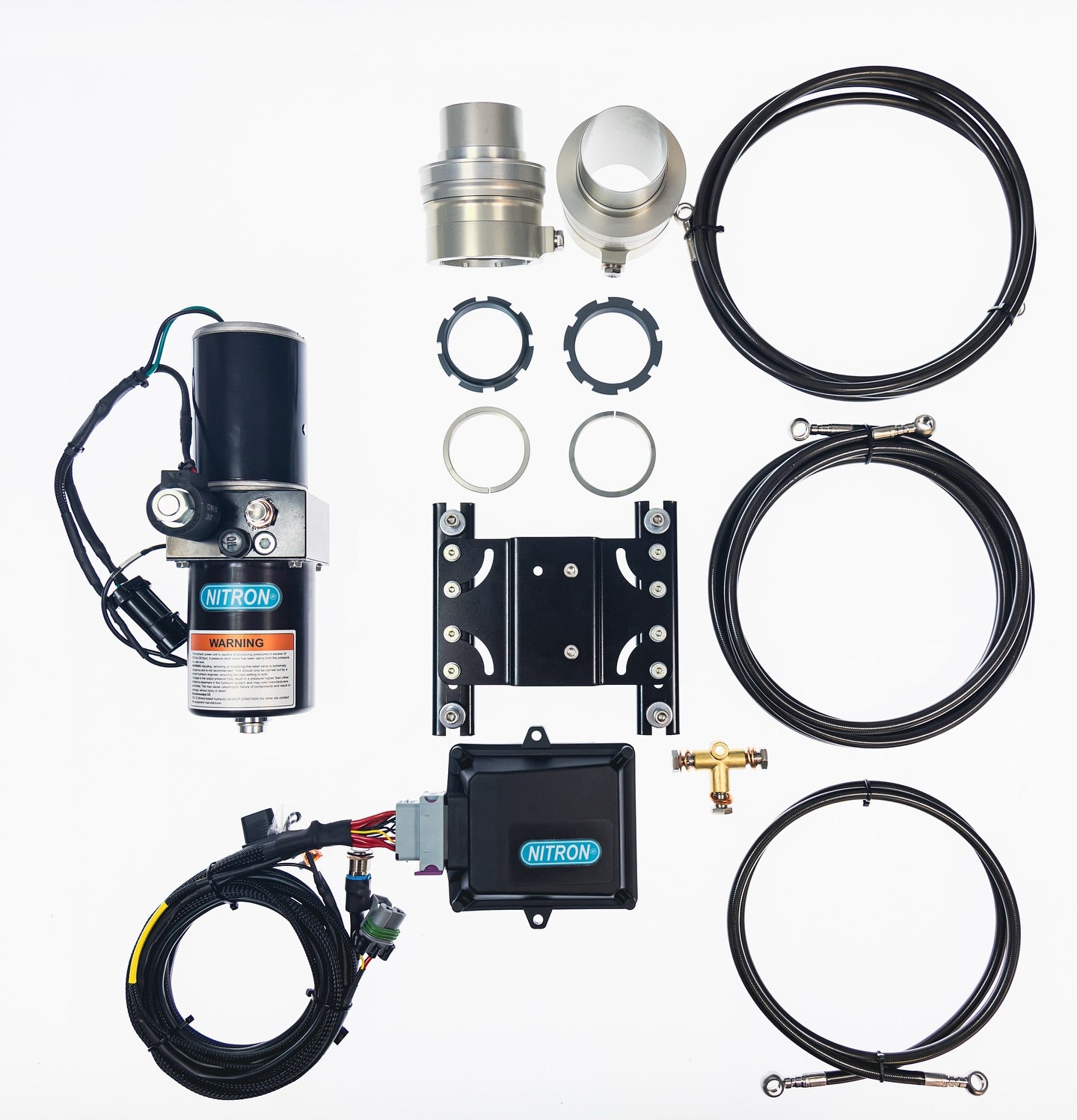

Nitron - Standalone Front Axle Lift (FAL) Upgrade - BMW/Toyota

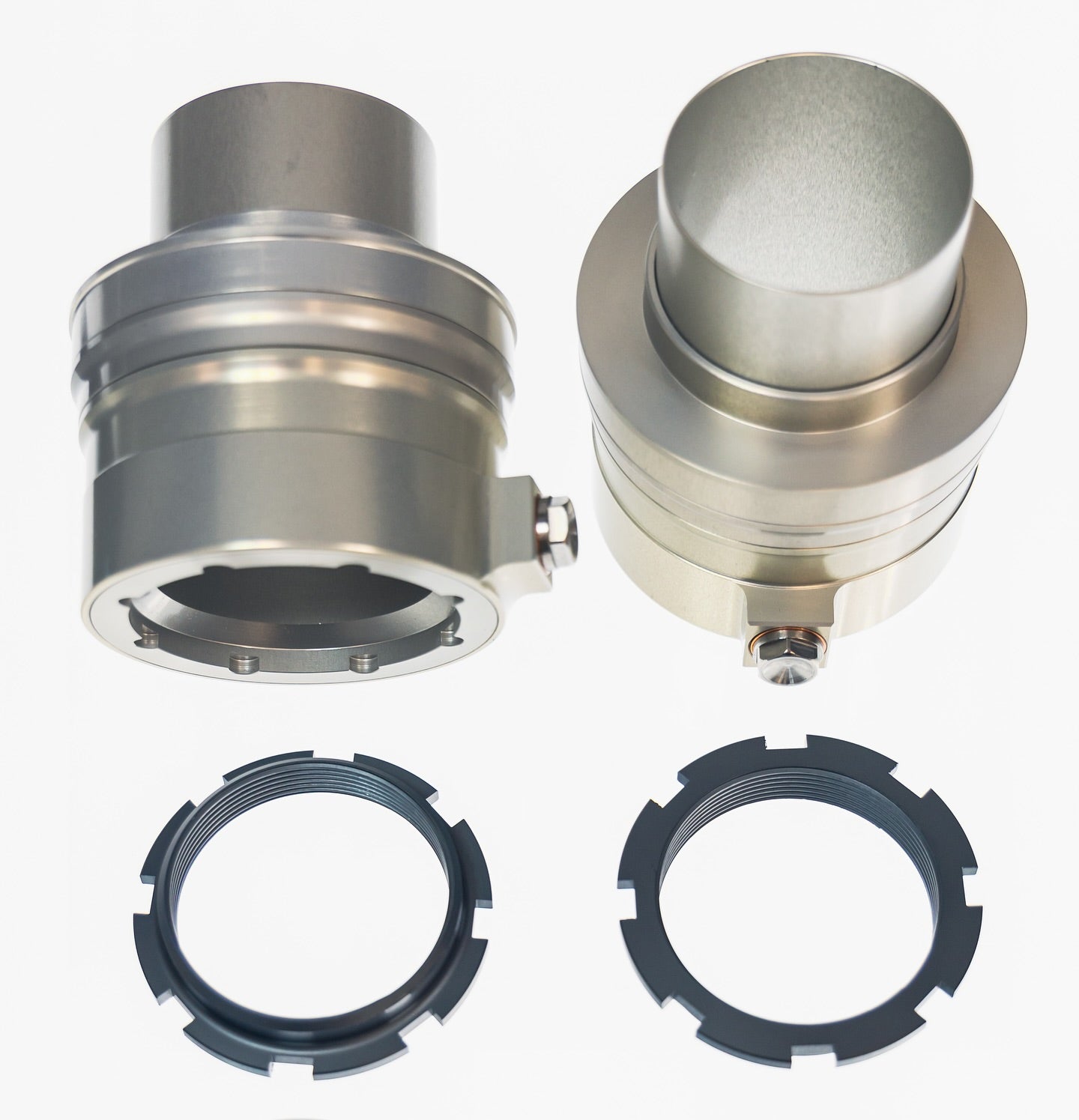

Nitron's Standalone Front Axle Lift (FAL) is a hydraulic based system fitted on the front axles and allows ~1" lifting of the vehicle. The hydraulic cylinder unit is located on top of the coilover body between the spring and spring perch. This allows for instant lift (within ~5 seconds) and operates completely independent of the shock/strut resulting in no unwanted additional suspension movement while driving. This allows vehicles with low ground clearance to clear obstacles (including driveways and trailer ramps) easily and can be activated from inside the vehicle via user-mounted switch.

Features

• Activate with a push of the button

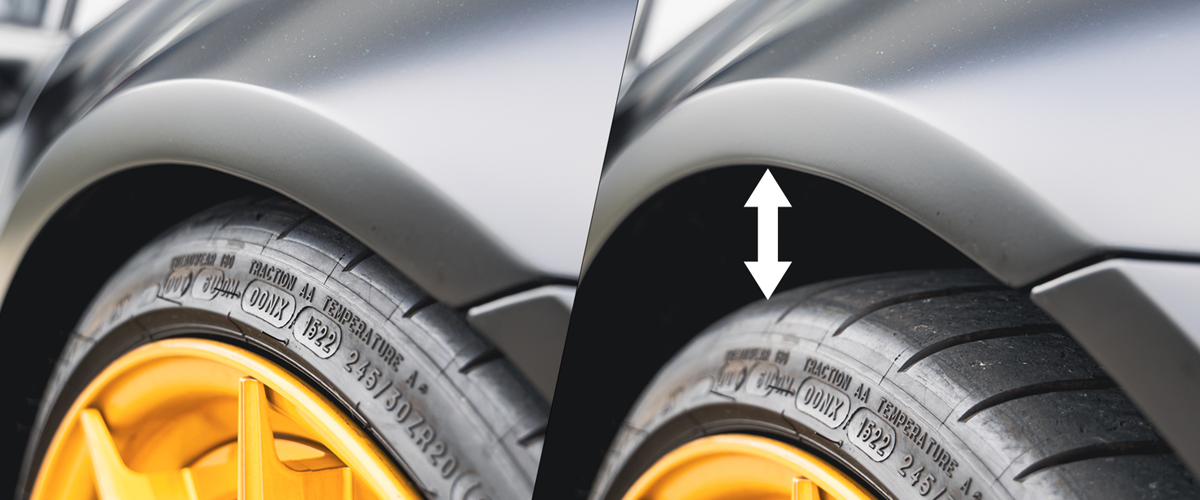

• 25mm lift at shock (lift height depends on application)
• Typical lift/lower time  in 3-5 seconds
• Audible in-cabin warning system
• Switch with built-in warning light
• Auto lower function
• Avoids damage caused by steep driveways and speed bumps
• Compatible with Nitron R1 and R3 coilover systems

Replacement springs are required for existing Nitron coilover systems, as stack height will change after installation.

Note: For integration with Nitron NTR R1/R3 & ER1/ER1 coilover systems only. Not tested or guaranteed to fit with non-Nitron coilover systems. Images used for illustration purposes only. Specific details, finishes and end fittings may differ from that shown.

Vehicles Supported
BMW F87 M2, including Competition
BMW G8X M3/M4, including Competition
BMW F8X M3/M4, including Competition
Toyota GR Supra
