Nitron - NTR R3 3-Way Coilover Suspension Kit with Front Axle Lift (FAL) - BMW G8X M3/M4 ^Sale

The NTR R3 system sets the standard for ultimate performance with a design that offers drivers and engineers unparalleled damping control.

NTR R3 features 3-Way independent damping adjustment. By incorporating our class leading large diameter piston and ultra-strong piston rod, the R3 system demonstrates outstanding levels of performance, damping control and adjustment. Piggyback or remotely mounted reservoir allows quick and simple independent adjustment of rebound and fast and slow compression damping. The large range of adjustment and quality of feedback allows the experienced driver to fully exploit the full potential of their car. The R3 is a proven race winner and lap record holder across a wide spectrum of international motorsport formulas.

The high-grade materials protect against corrosion whilst reducing weight. Every R3 kit is custom built, sprung and fully serviceable. Titanium and hard-anodized parts are hand built to last not only the lengthiest endurance races, season after season, but also the harshest of winters.

Bi-Axis Hose Fittings
NTR Hose shocks are fitted with Nitron’'s exclusively developed 720-degree Bi-Axis fittings that allow for simple and precise installation, developed in-house.

Front Axle Lift (FAL)

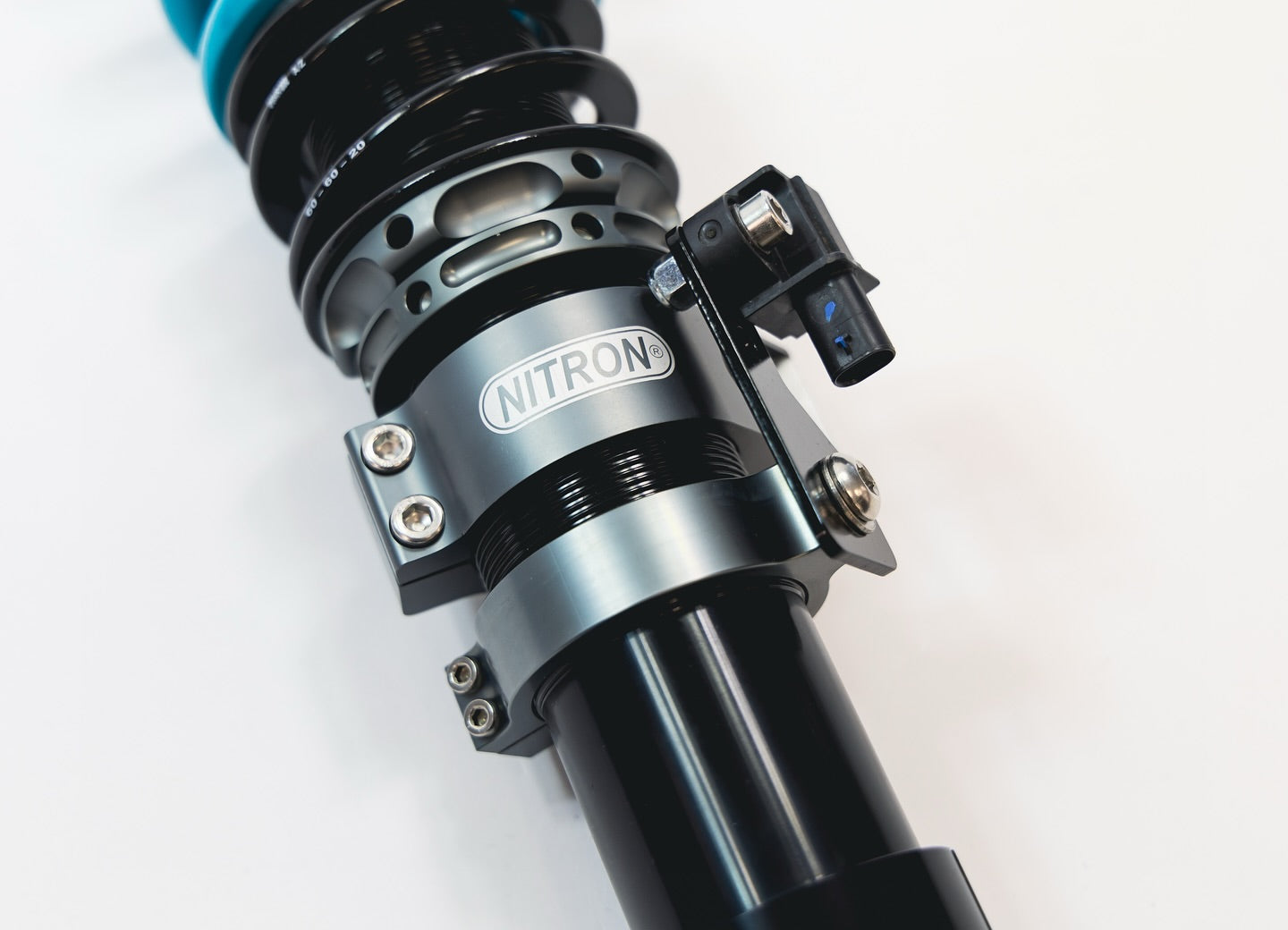

FAL is a hydraulic based system fitted on the front axles and allows ~1" lifting of the vehicle. The hydraulic cylinder unit is located on top of the coilover body between the spring and spring perch. This allows for instant lift (within ~5 seconds) and operates completely independent of the shock/strut resulting in no unwanted additional suspension movement while driving. This allows vehicles with low ground clearance to clear obstacles (including driveways and trailer ramps) easily and can be activated from inside the vehicle via user-mounted switch.

Features

• Height adjustable (F/R: 20-25mm)
• 3-Way Independent Adjustment
• High Compression: 16 Clicks

• Low Compression: 26 Clicks
• Rebound: 24 Clicks
• Front Adjustable Camber Plates included
• Nitron Springs & Helper springs included
• Fast Road Spring Rates (F: 742 lbs-in, CR: 425 lbs-in)
• Track Day Spring Rates (F: 856 lbs-in, CR: 525 lbs-in)

Specifications

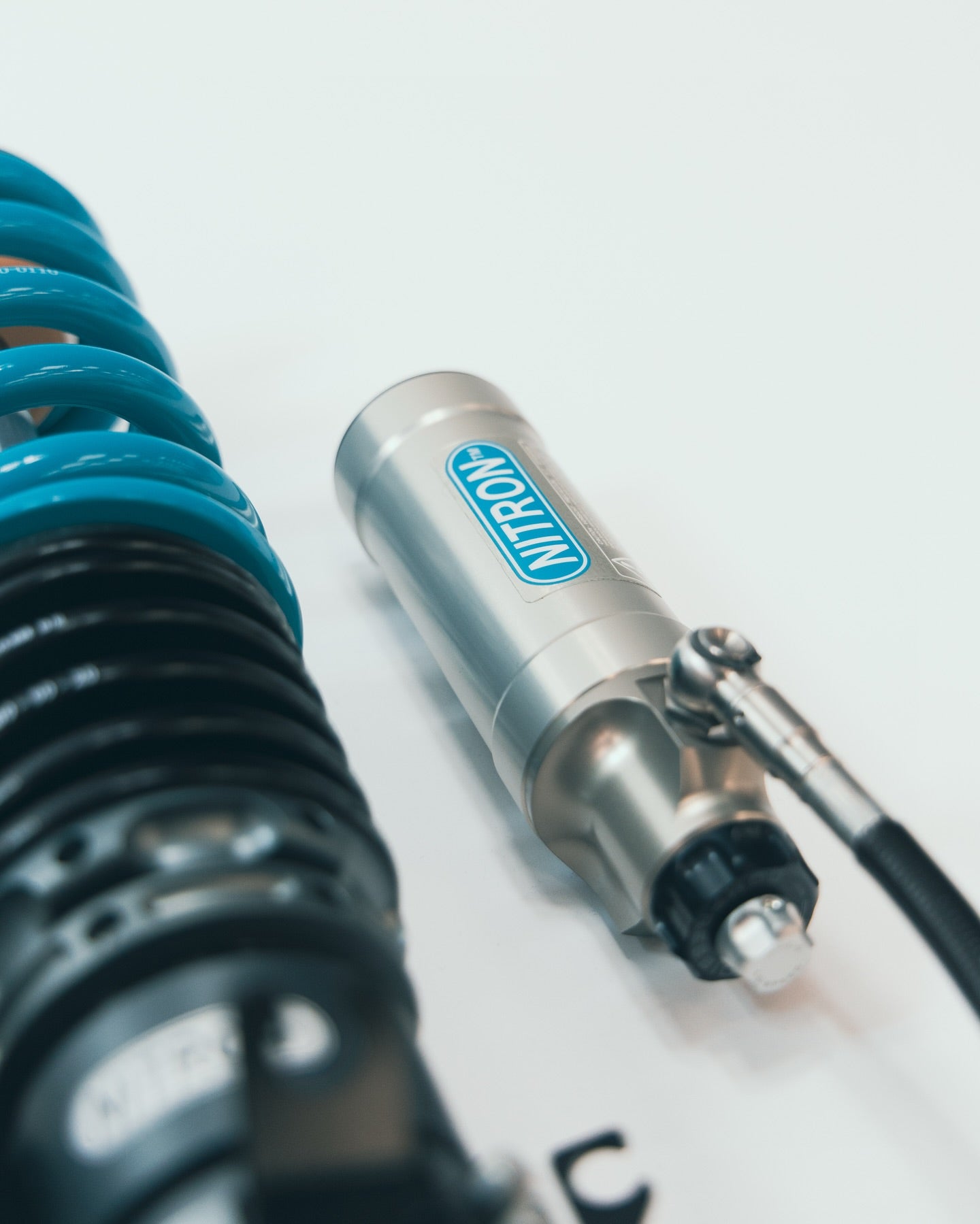

• Piggyback/Hose External Reservoir
• 720-degree Bi-Axis Swivel Hose Fittings
• Preload Adjuster

• 40/46mm Piston design

• Nitrogen Gas Charged

• 14/16/22mm Piston Rod
• Coilover or Divorced Rear Suspension Type

• Full Alloy Body

Nitron boasts over a decade of success, celebrating prestigious race wins and lap records around the world. Designed, developed and manufactured in the UK, Nitron’s worldwide headquarters are based in England’s prestigious ‘Motorsport Valley’, Oxfordshire.

All Nitron shocks are hand-built to order to each individual customer's requirements. Lead times are normally 2-3 weeks, but at certain times may be slightly longer. If you would like a more accurate delivery time please inquire beforehand.

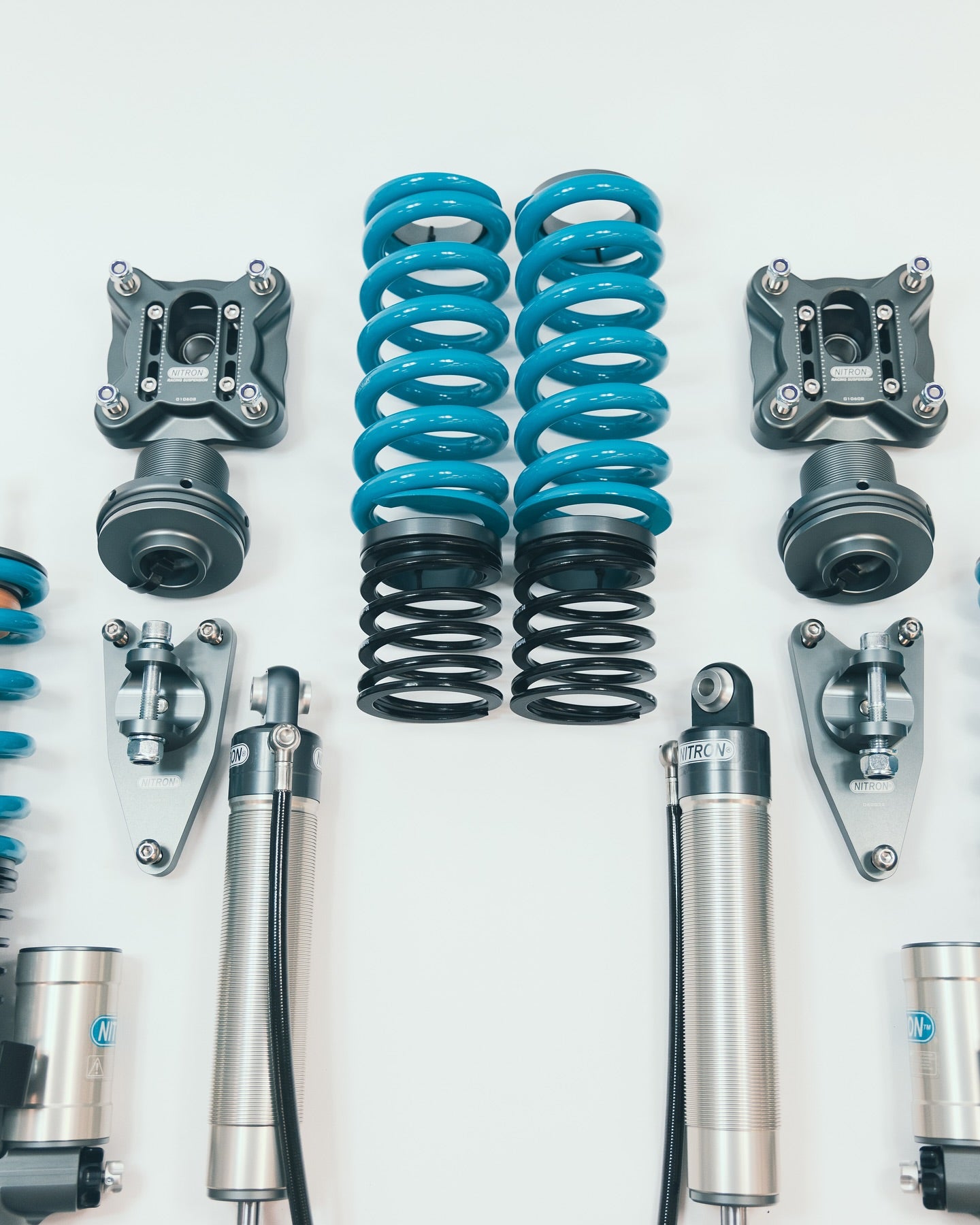

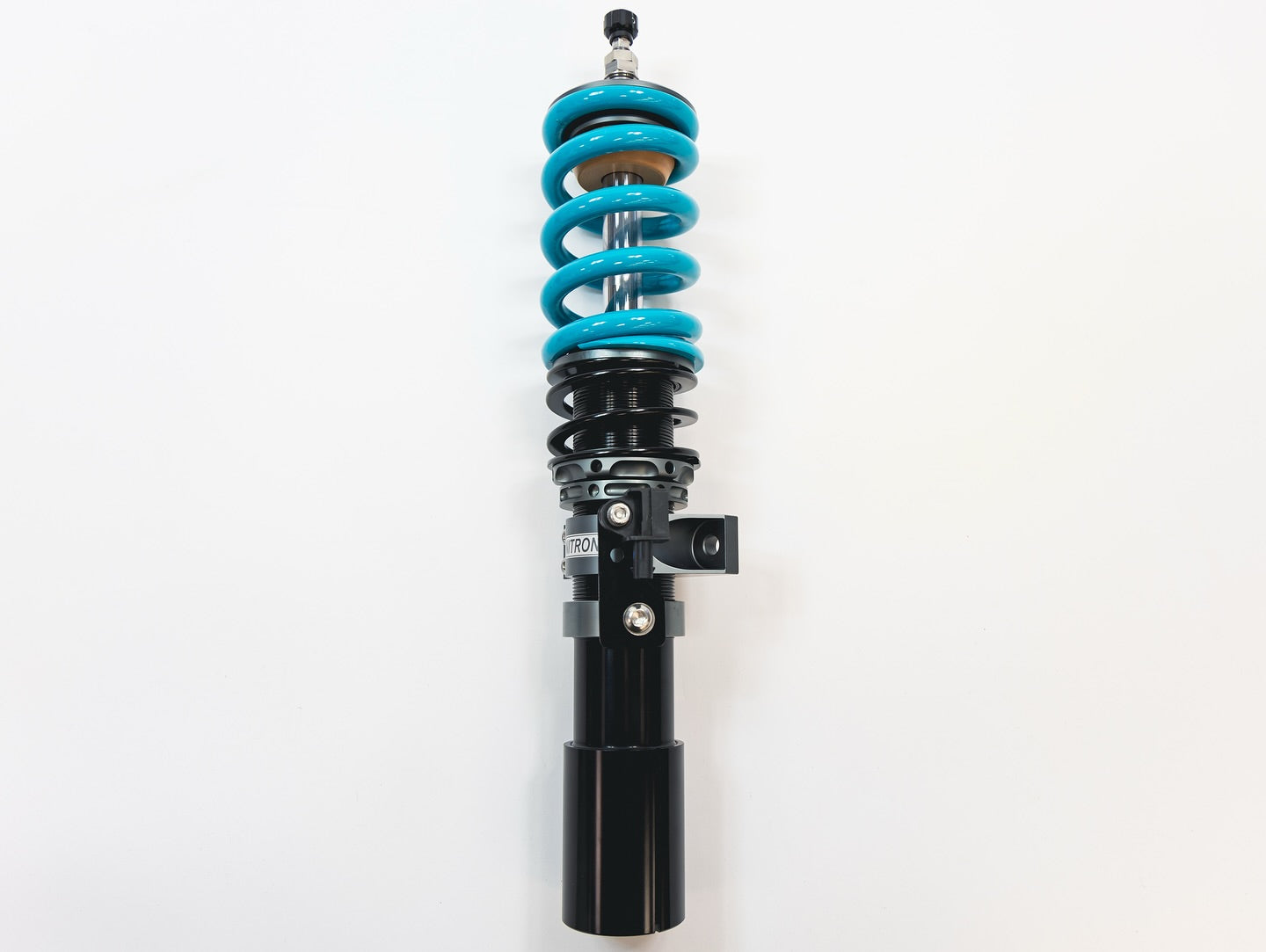

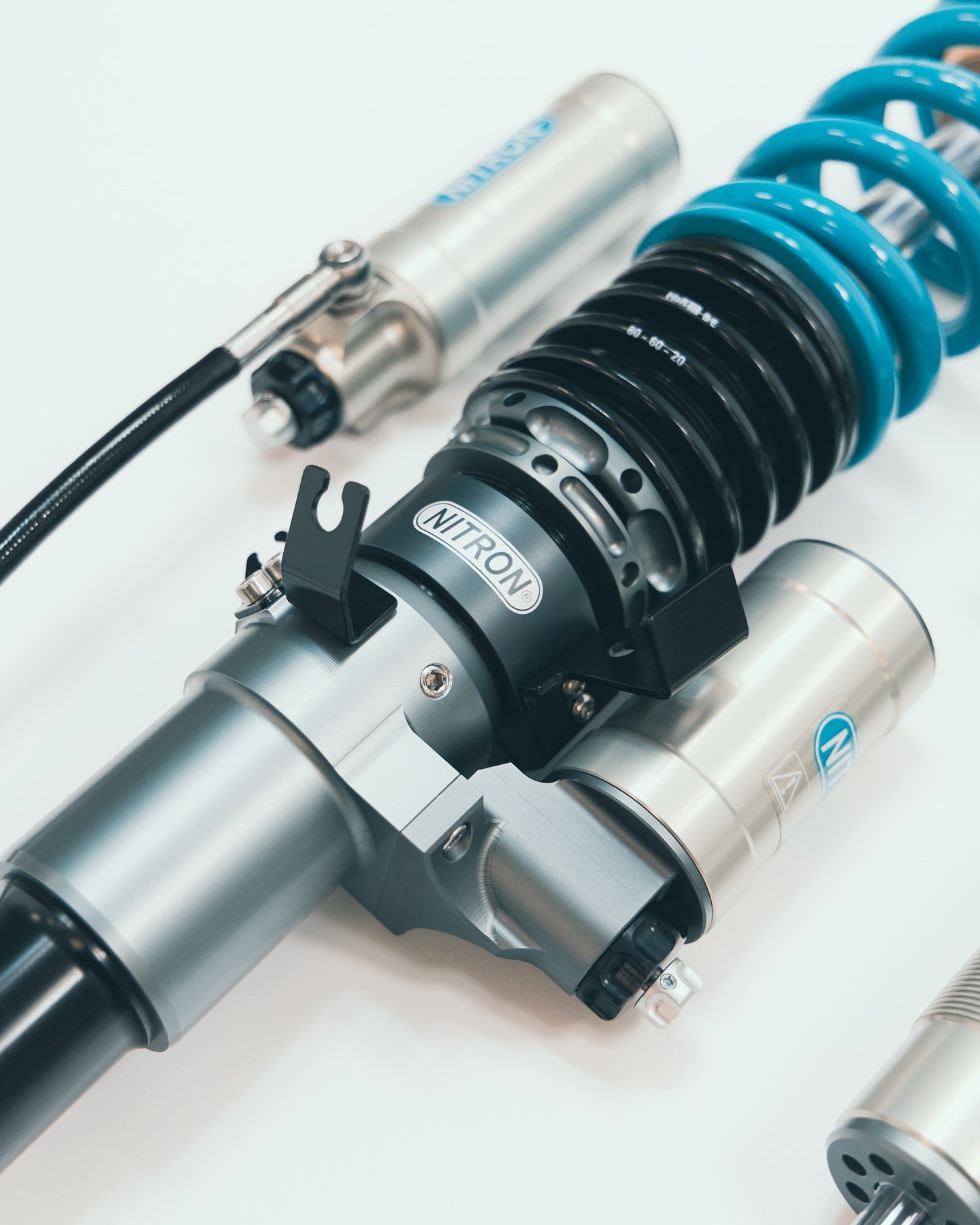

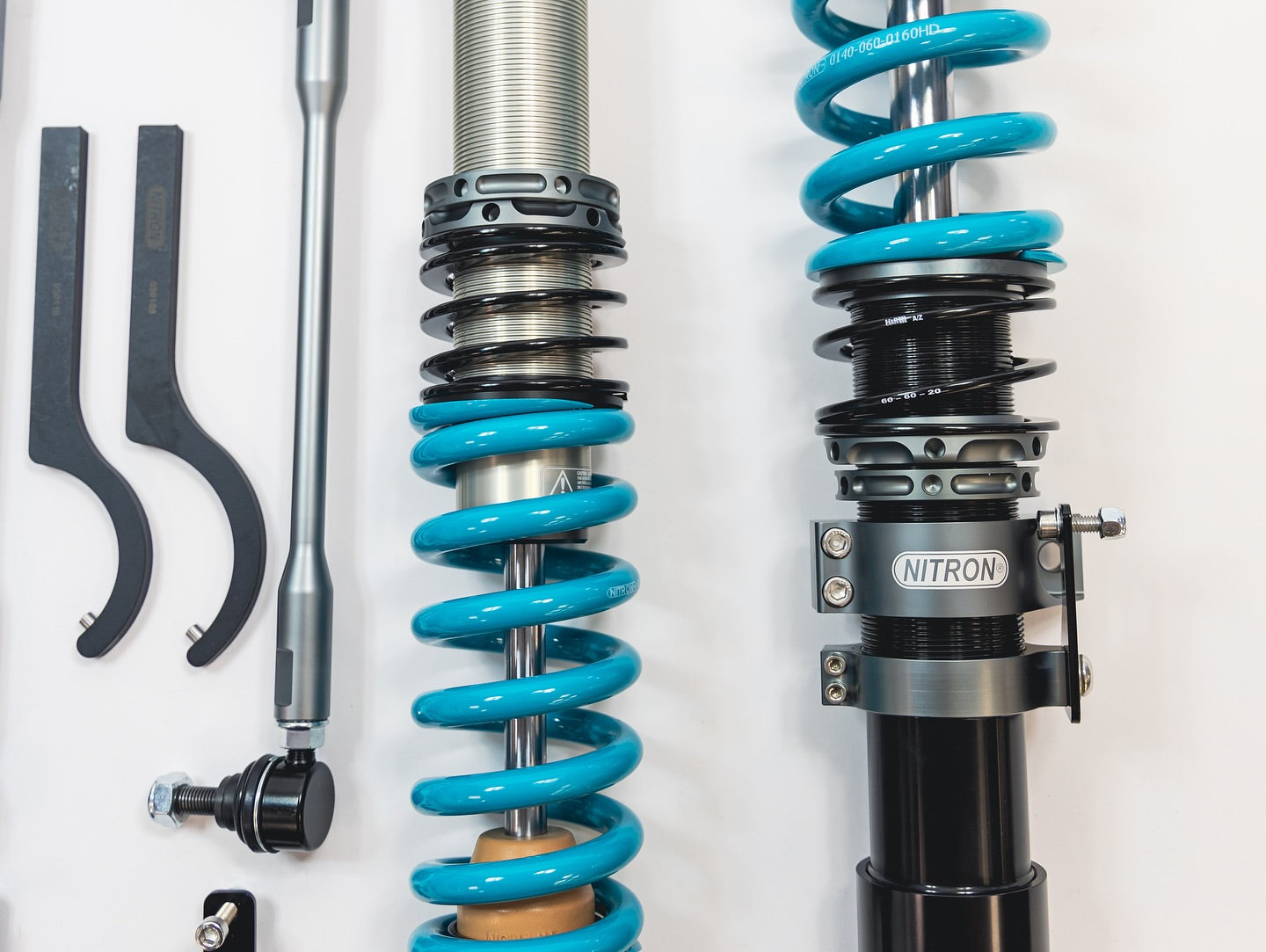

Note: Stock image shown, actual components will vary.

Vehicles Supported
BMW G8X M3/M4, including Competition
