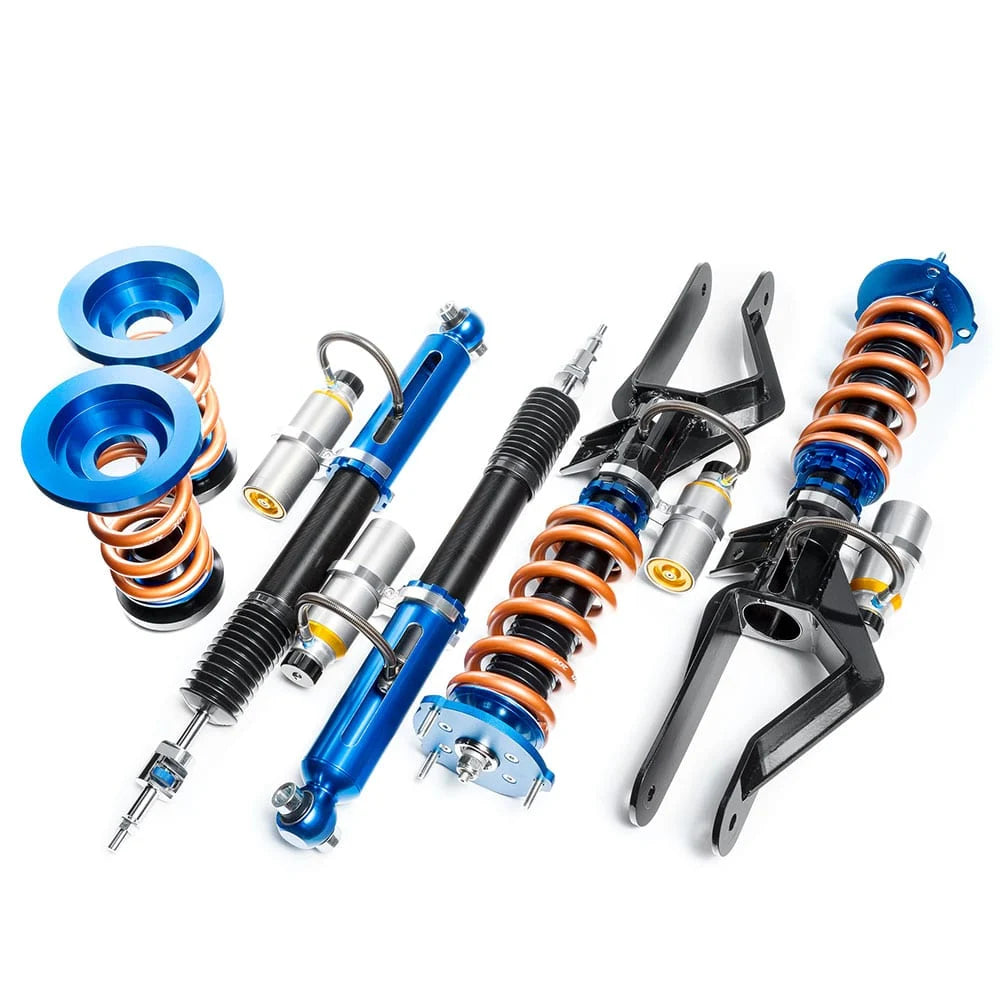

The Unplugged Performance Pro Race Coilover Suspension Kit for Tesla Model 3 installs in place of the factory dampers [shocks / struts] and springs, adding a full range of customizability to the vehicle’s height, as well as the ability to fine-tune the dampers to each driver’s needs. Currently, we offer a Pro Race Coilover Suspension Kit for Tesla Model 3 with two-way and three-way adjustability with external reservoirs, a perfect solution for tracking your vehicle.
The Unplugged Performance Pro Race Coilover Suspension Kit for Tesla Model 3 installs in place of the factory dampers [shocks / struts] and springs, adding a full range of customizability to the vehicle’s height, as well as the ability to fine tune the dampers to each driver’s needs.
The Pro Race Coilovers add additional features over our standard Coilover Suspension Kit like external, remote fluid reservoirs, as well as special motorsports-oriented valving for maximum performance. The target user is the racetrack junky, who also drives their car regularly.
Win The Race With UP! Faster Laps Guaranteed!
Since 2017 all of our coilovers have been hand built in small batches and on every production run we implement micro improvements based on feedback to perfect the Model 3. Over the years our race spec coilovers have evolved and are responsible for countless race wins and lap records. To name a few they’ve been utilized on the Japan JEVRA 2020 season winning Taisan x UP Model 3, they hold the Tesla lap records at Buttonwillow, Laguna Seca, Tsukuba Circuit, and Fuji Speedway, they’ve won SCCA auto-x events, and are typically on the fastest lapping TeslaCorsa driver’s cars. With increasing frequency performance drivers are upgrading from their existing coilovers to UP suspension and we find they always end up faster.
As a result of the consistency proven results we offer an unprecedented money back guarantee for any driver that upgrades from existing coilovers to Unplugged Performance Race Spec Coilovers. This guarantee is applicable to these entry level race spec coilovers and of course to our Pro Spec 2 way and 3 way variants. The guarantee is simple. You’ll run faster laps with our suspension or we will offer you a full money back guarantee. We will provide all customers up to 60 days to install, race and see the results first hand!
Reliability We Stand Behind – Warranty Includes Racing Use!
Traditionally coilover manufacturers offer a warranty for street conditions but contain fine print that voids the warranty the second the coilover sees a race track. Our message and support level for our clients is clear. Our coilovers are designed to perform flawlessly on the race track, and they belong on the race track. We don’t void the warranty when they are on the race track, we encourage it! As with all of our products, we value our customers greatly and our support goes above and beyond industry standards. All UP race spec coilover variants come with the confidence of two-year warranty that includes unlimited racing.*Warranty exclusions would be damage from accidents or negligence, warranty is non-transferable.
Specifications
- Height Adjustable – fully personalize the height of your Model 3!
- Rebound Damping Adjustable – Rebound damping regulates the speed at which your shock bounces back from an impact (pothole, bump, hard cornering). By adjusting rebound dampening, one can customize the ride and handling of Model 3. On our coilovers, rebound dampening is adjustable by an easily accessible knob located on each damper (24 clicks of adjustment)
- Compression Damping Adjustable – Compression damping regulates the rate at which your shock compresses through curves and over bumps. Compression dampening changes can be used to fine-tune a variety of handling characteristics and even overall wheel traction
- Every shock is custom engineered utilizing our racing background and partnerships (our parent company is Bulletproof Automotive with a history since 2000 of building award-winning street and track cars). The coilovers utilize high-grade internal technology and components sourced from Ohlins and other top factories (these are unique Unplugged Performance engineered coilovers that we have developed, they are not Ohlins products and do not use DFV). After assembly, they are placed on a shock dyno to validate the exact results.
- High flow D port pistons + super low friction seals and rod guide bushings
- Monotube design

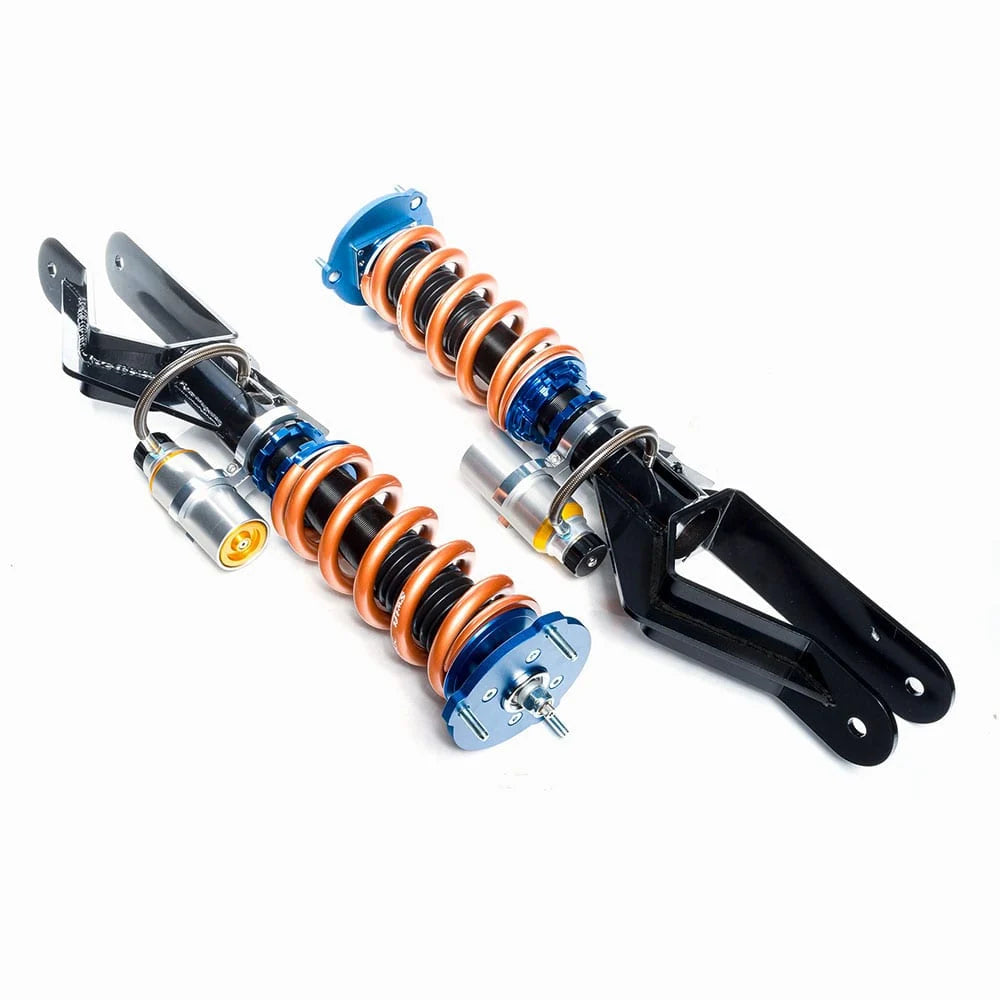

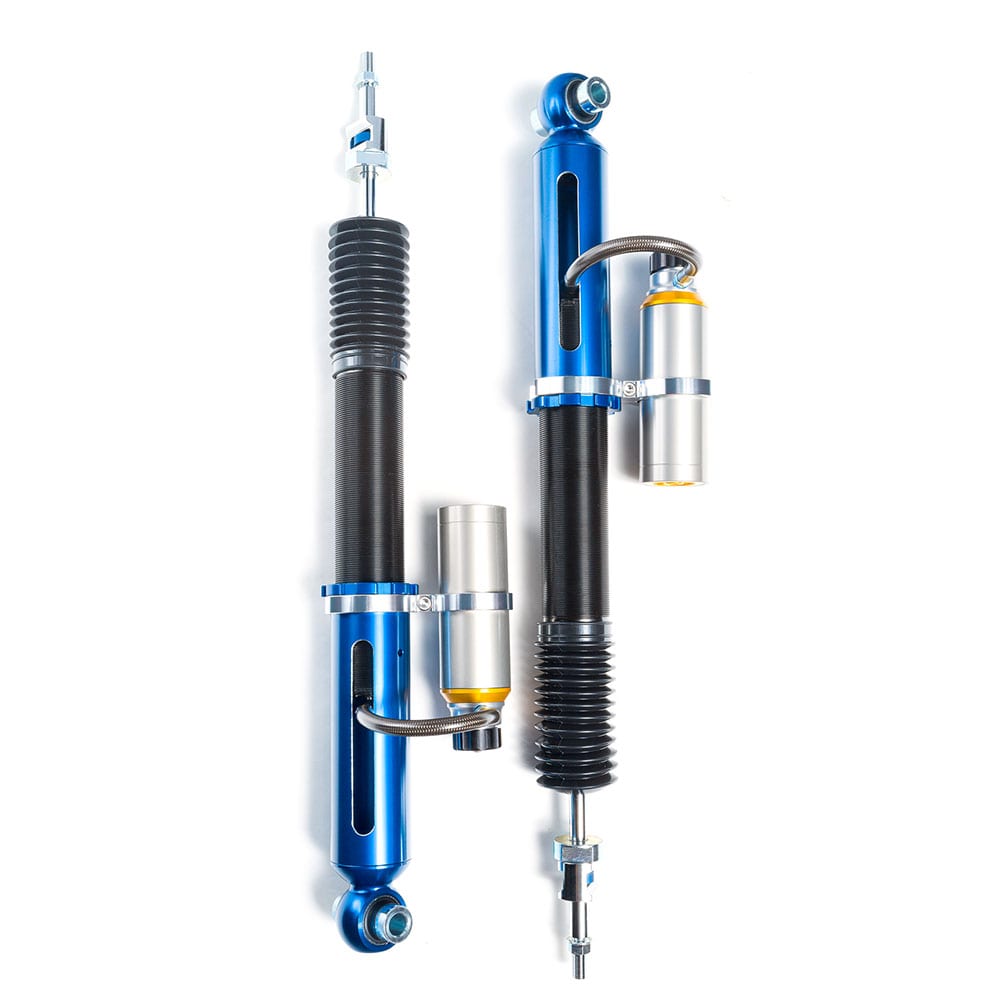

- Penske 2 Way or 3 Way External Reservoirs provide extra fluid, allowing for additional stroke, adjustment and better heat control under hard driving

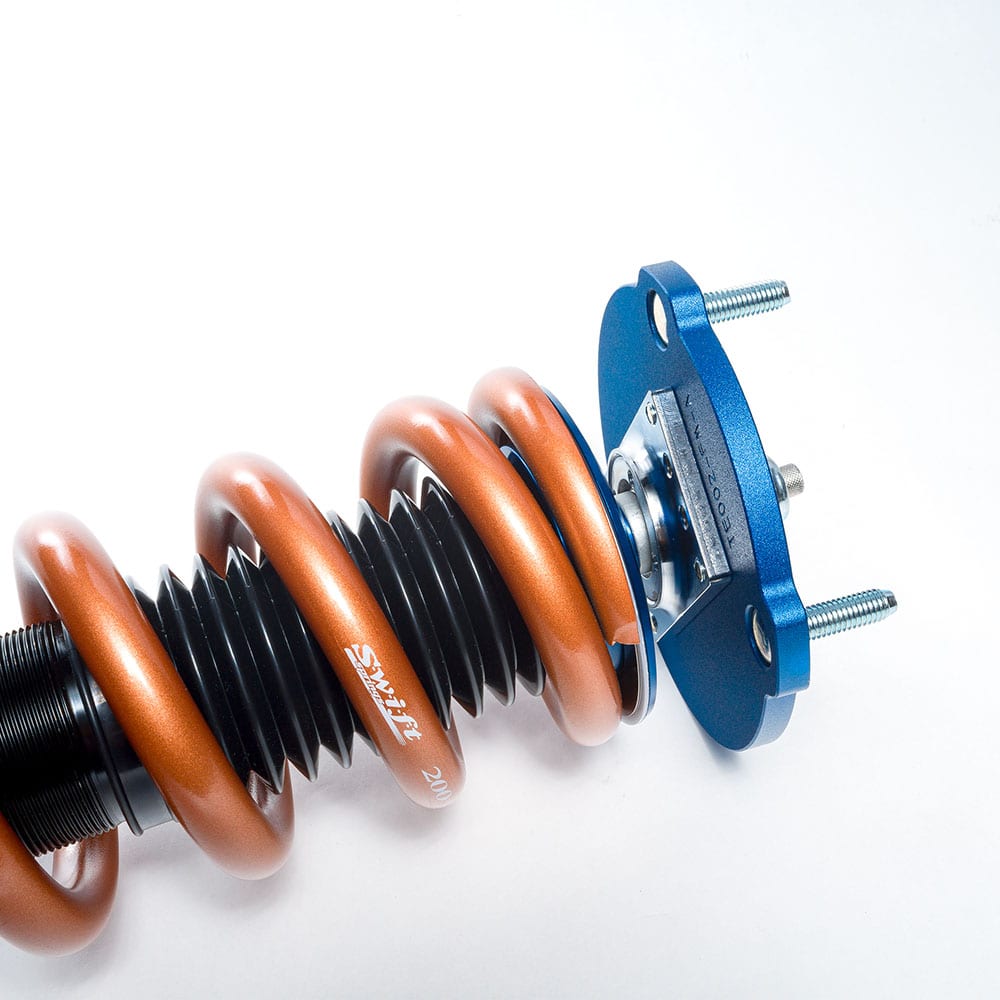

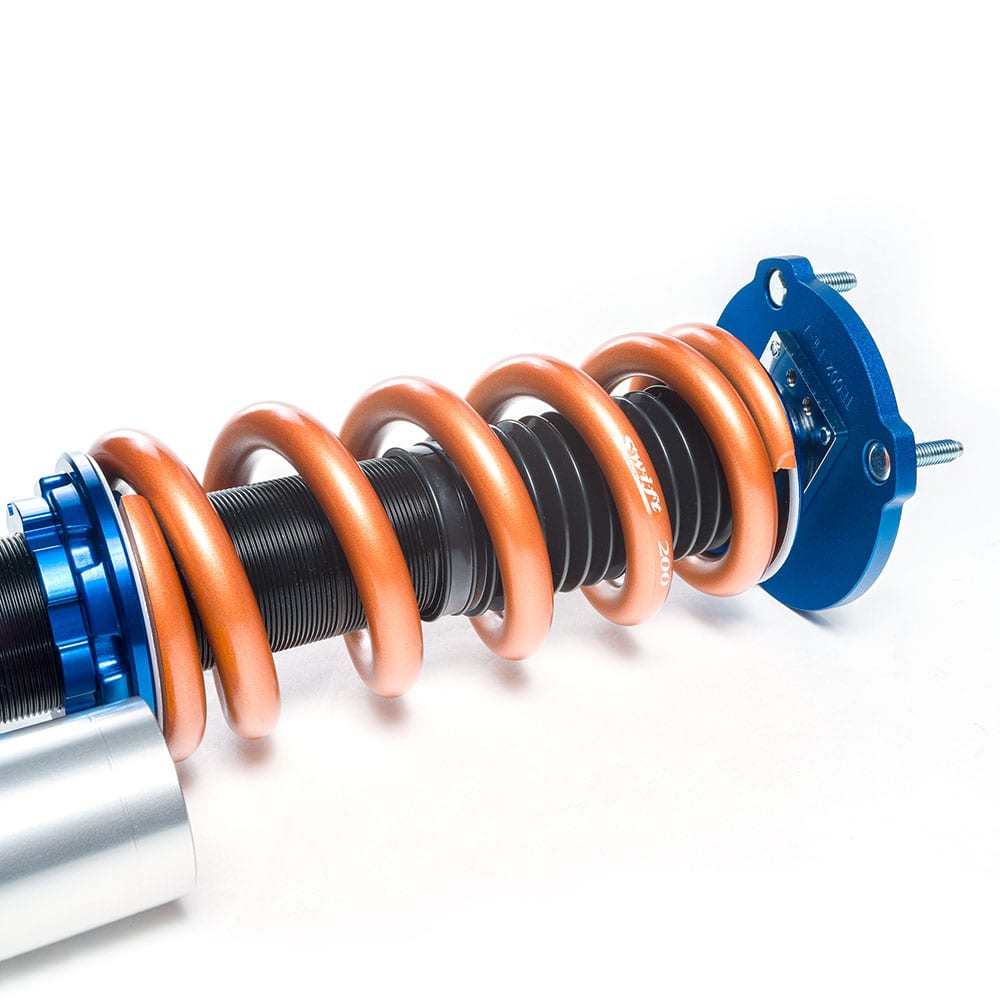

- Includes Front Pillowball Upper Mounts
- Like our Dual Rate Lowering Springs, the Unplugged Performance Coilover Suspension Kit is a simple and straightforward installation onto you Tesla Model 3 (about 3-4 hours)
- Assembled in USA
- Rebuildable and re-valvable in USA
Vehicles Supported
Tesla Model 3 Performance
