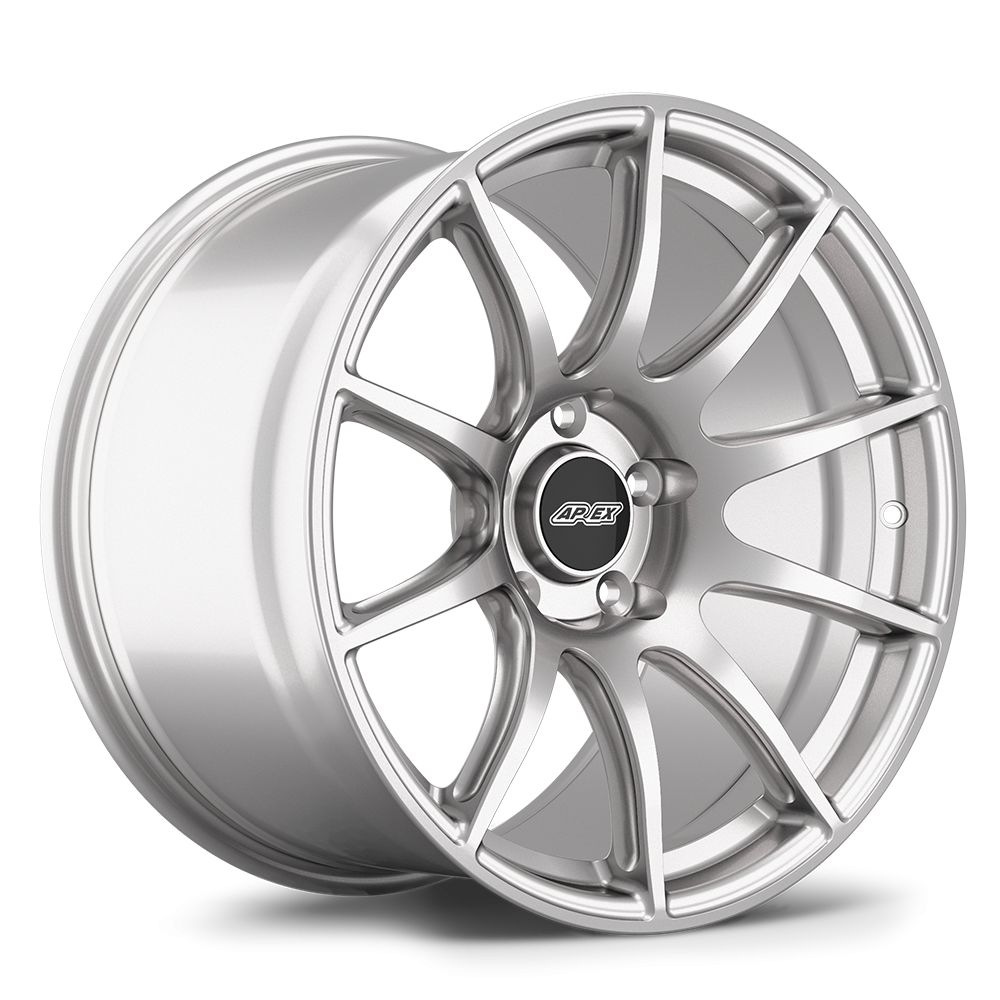

Apex - Evolution Line SM-10 Flow Formed Wheel - BMW (5x120)

Apex - Evolution Line SM-10 Flow Formed Wheel - BMW (5x120) ^Sale

Regular price $419.00

Vendor: Apex

Type: Wheels

SKU: APX.SM101885ET35-5120-7256-RS

Size

18 x 8.5" ET35 18 x 9.0" ET30 18 x 9.5" ET22 18 x 9.5" ET35 18 x 10.0" ET25 18 x 10.0" ET33 18 x 10.5" ET22 18 x 11.0" ET44 19 x 8.5" ET35 19 x 9.0" ET30 19 x 9.5" ET22 19 x 9.5" ET25 19 x 9.5" ET28 19 x 9.5" ET33 19 x 10.0" ET25 19 x 10.0" ET38 19 x 10.5" ET22 19 x 10.5" ET45 19 x 11.0" ET44

Finish

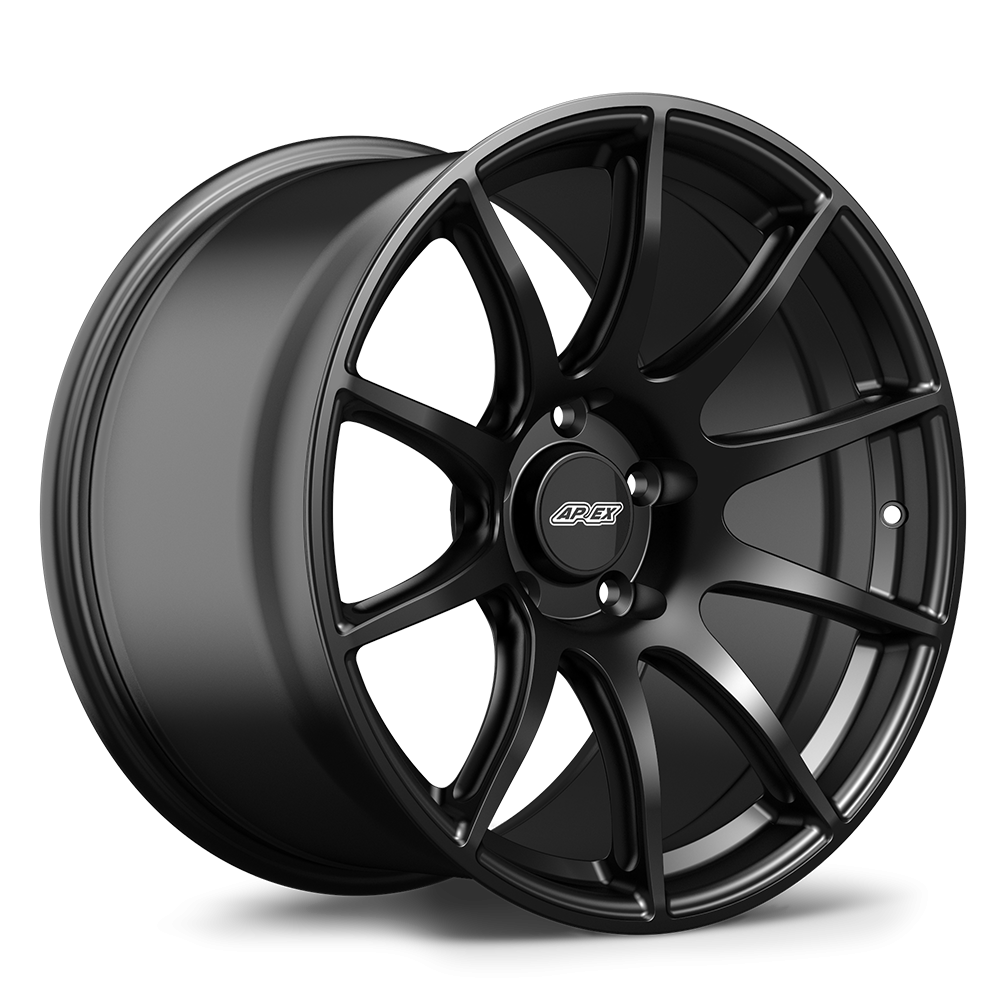

Race Silver Anthracite Satin Black

Hurry! Only a few left:

Quantity

Join Waitlist

Compare Wishlist

Share on Facebook Tweet on Twitter Pin on Pinterest

Inform when this item available:

Apex - Evolution Line SM-10 Flow Formed Wheel - BMW (5x120) - 18 x 8.5" ET35 / Race Silver

$419.00

Size

Finish

Description

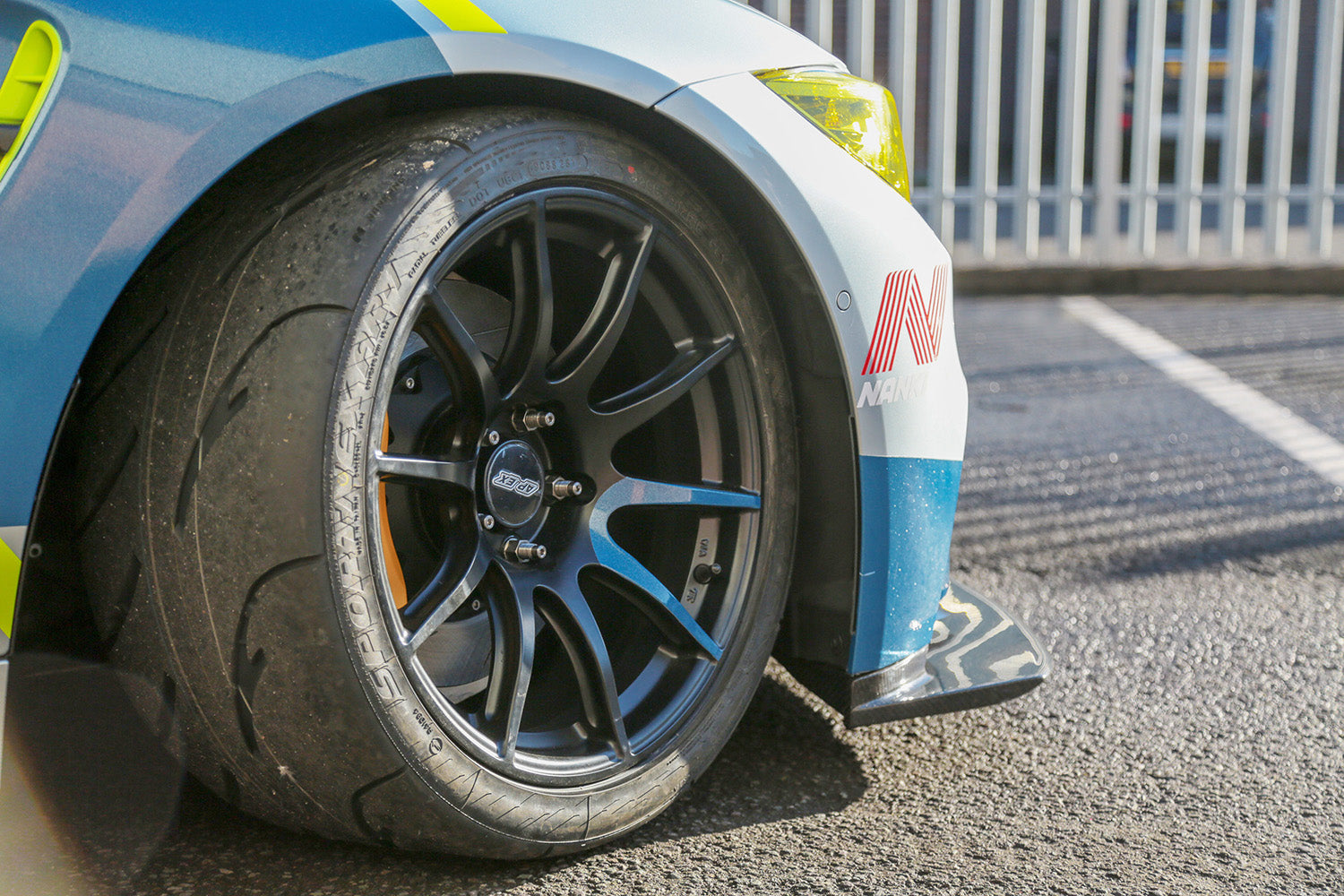

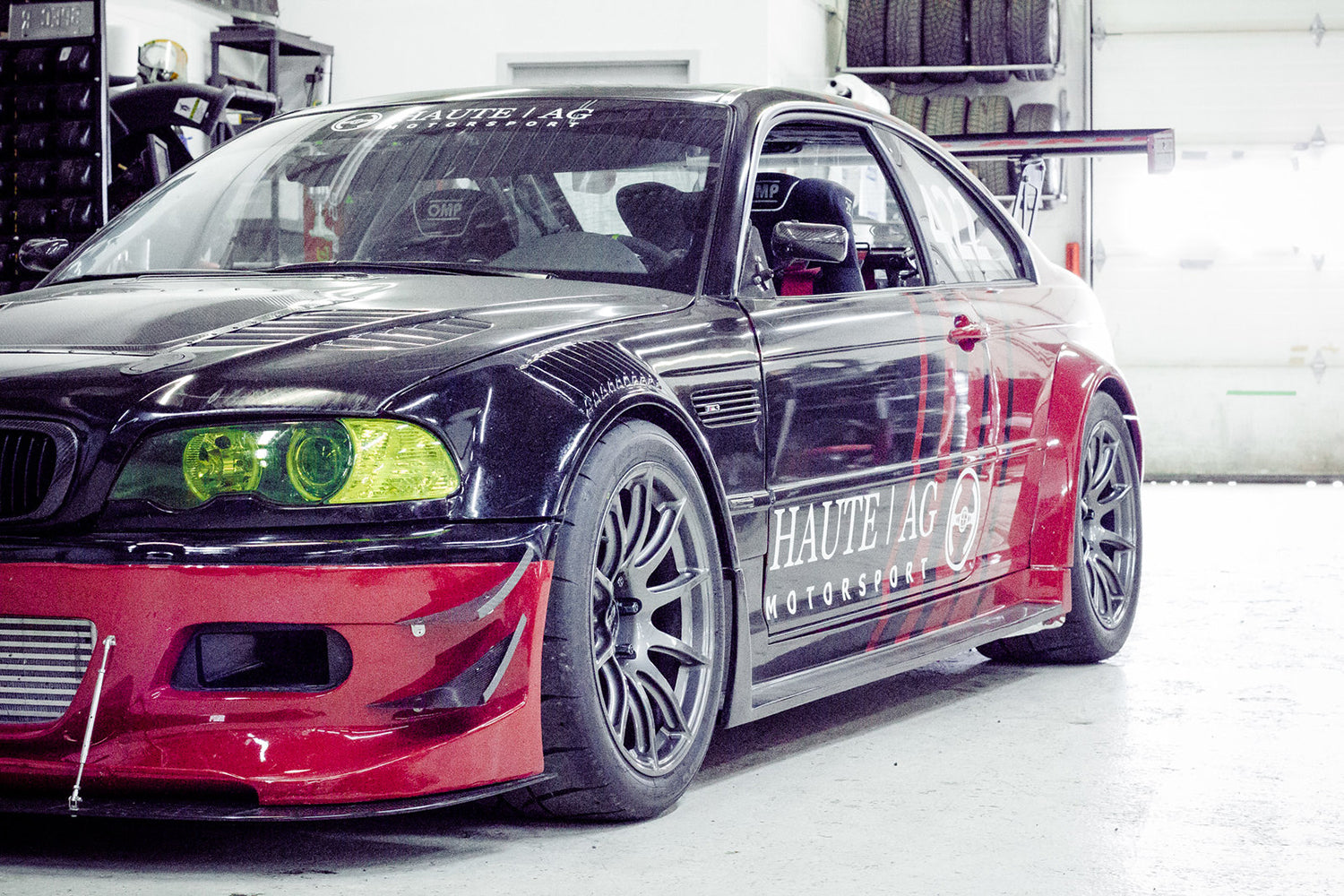

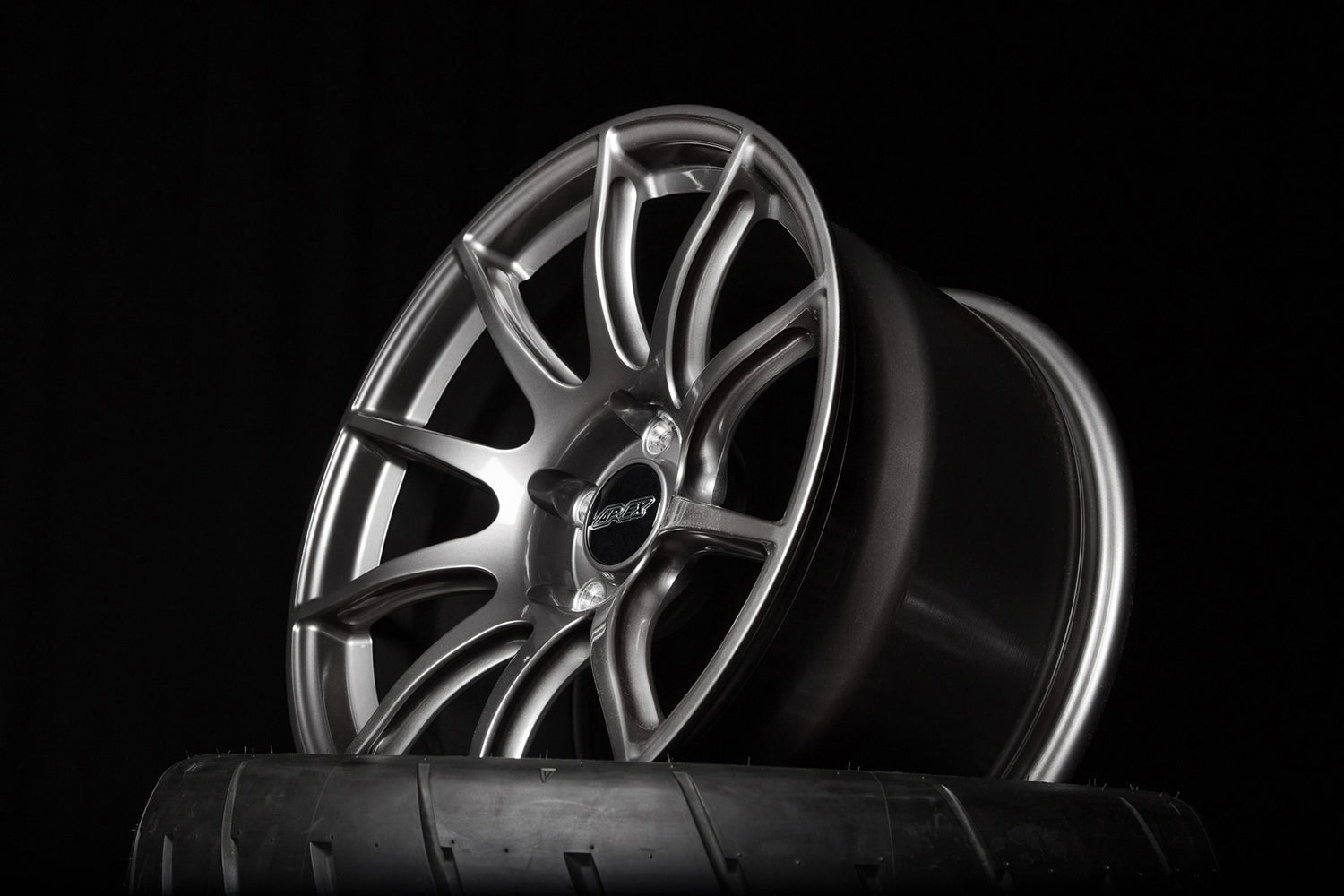

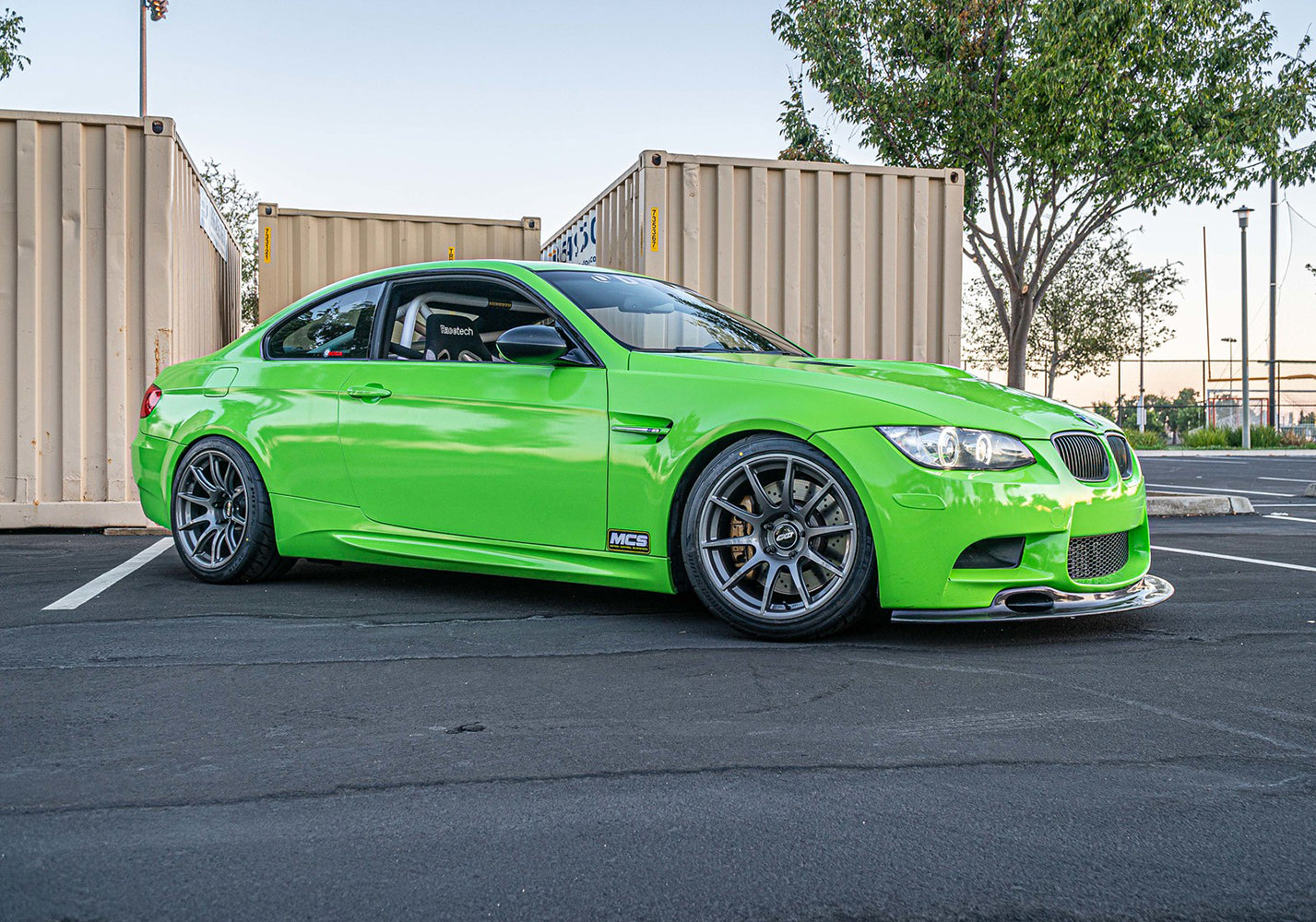

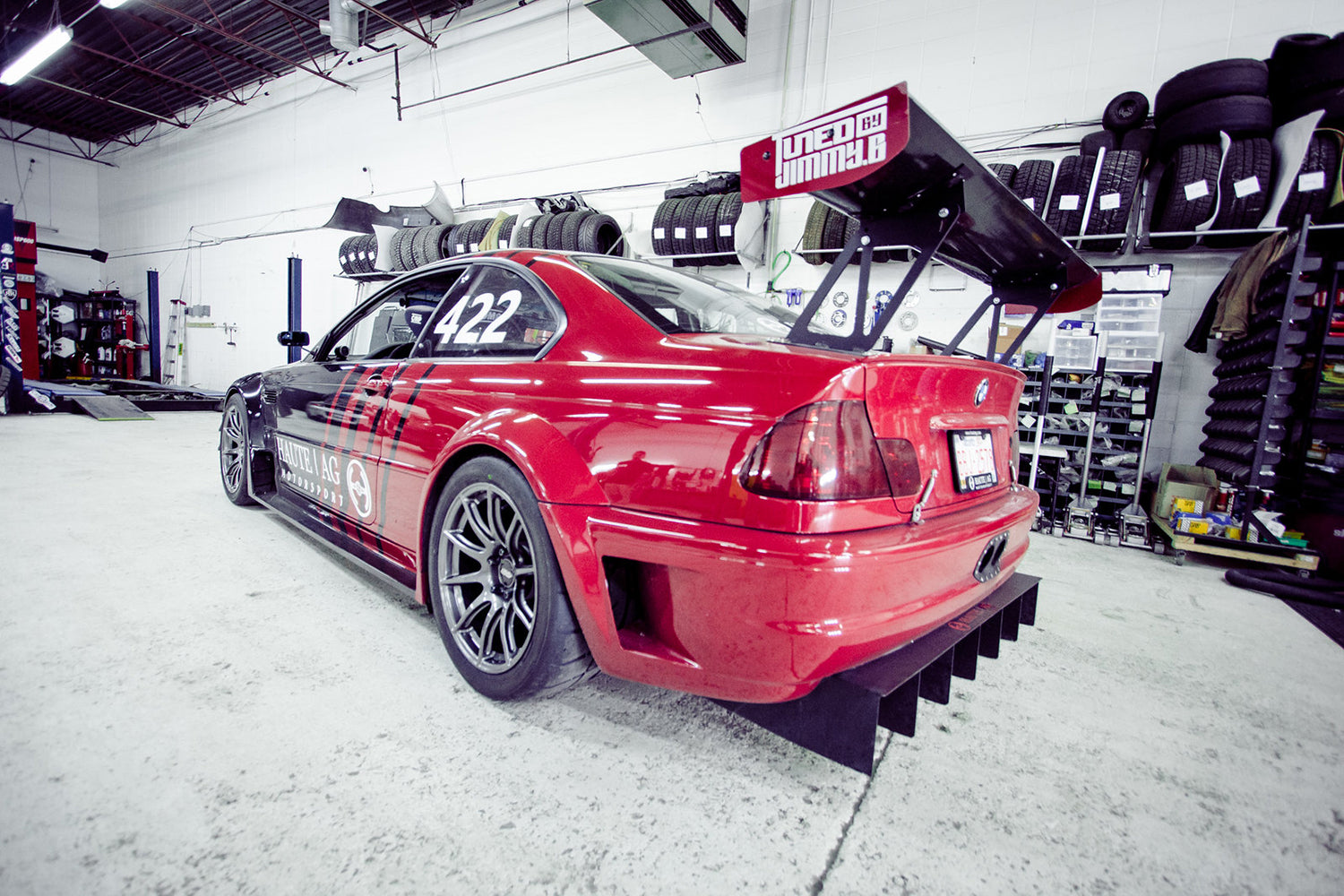

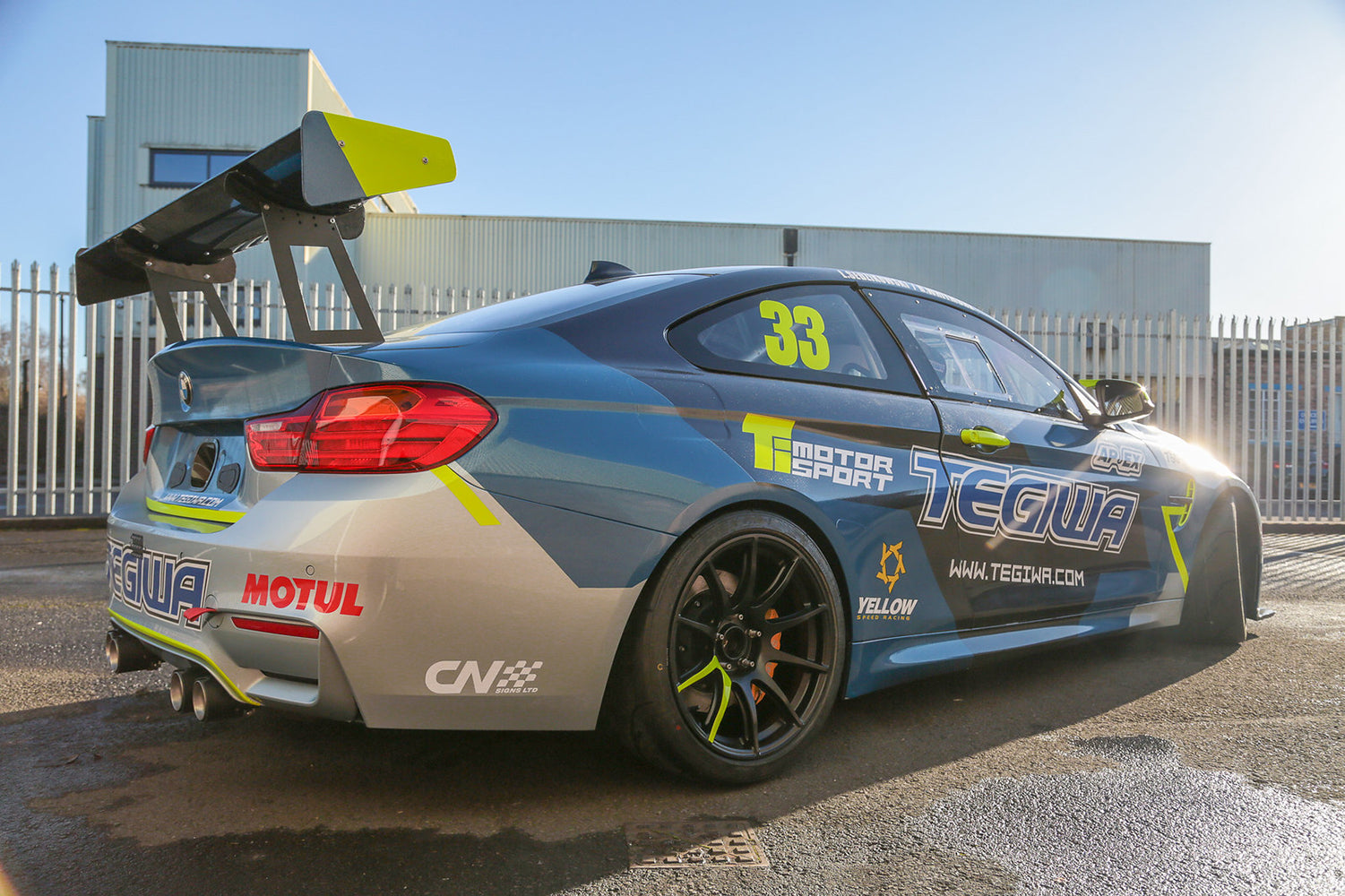

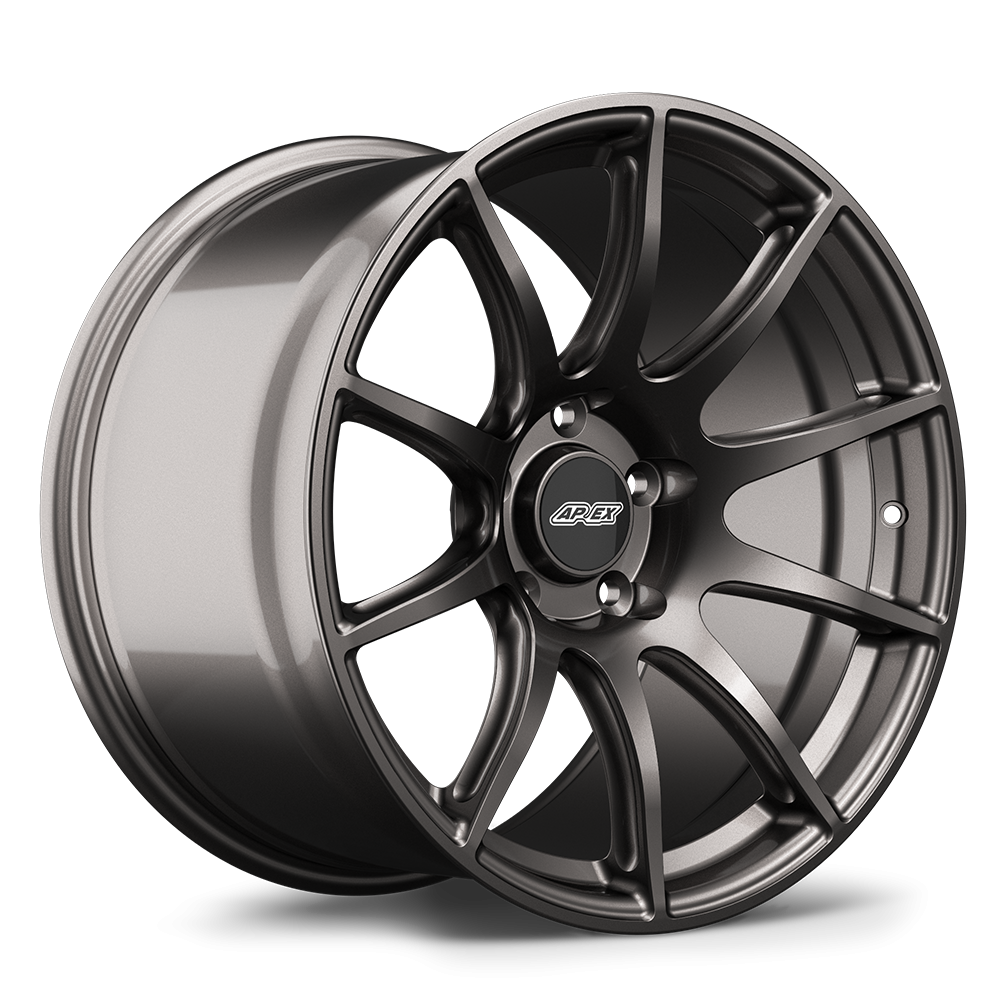

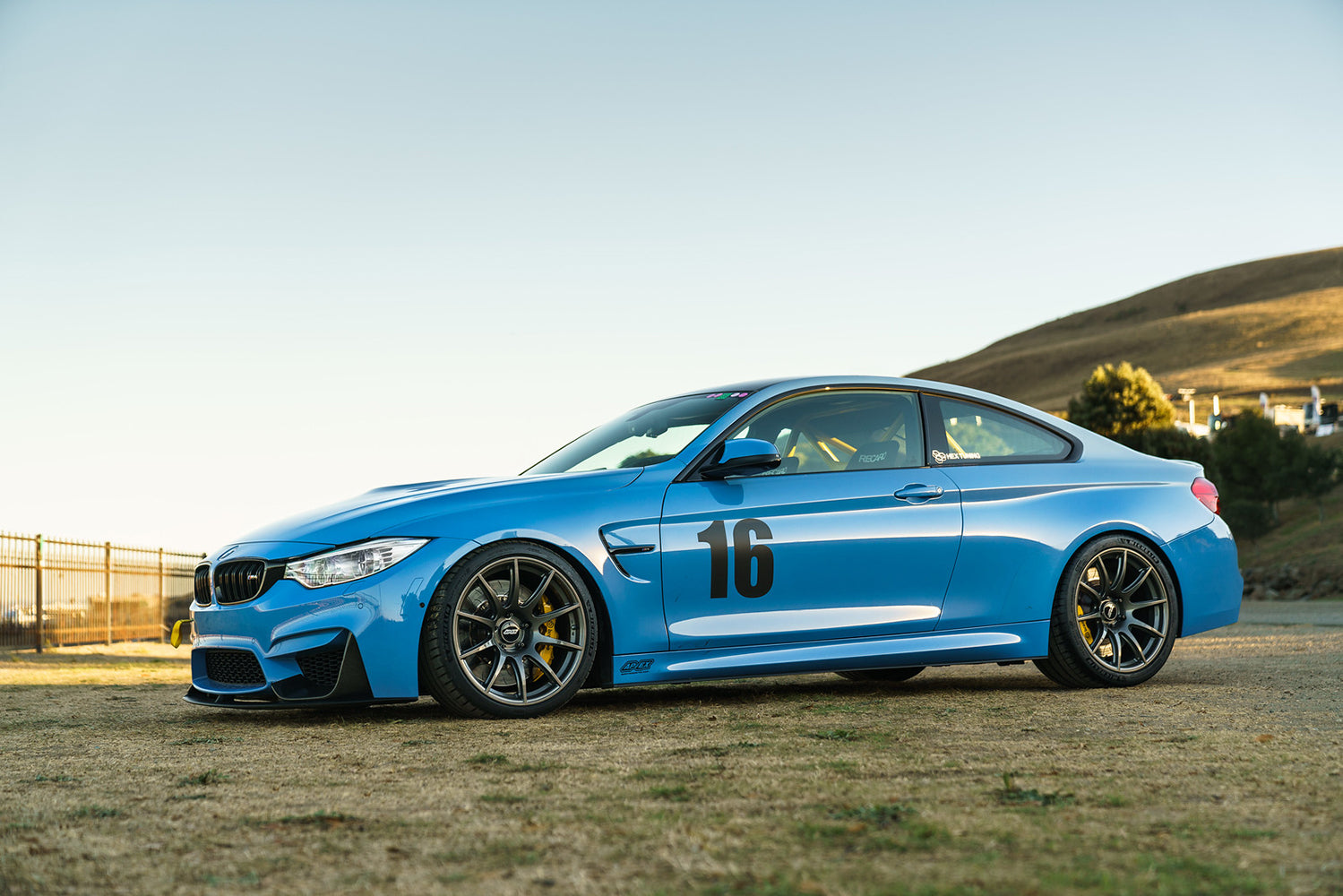

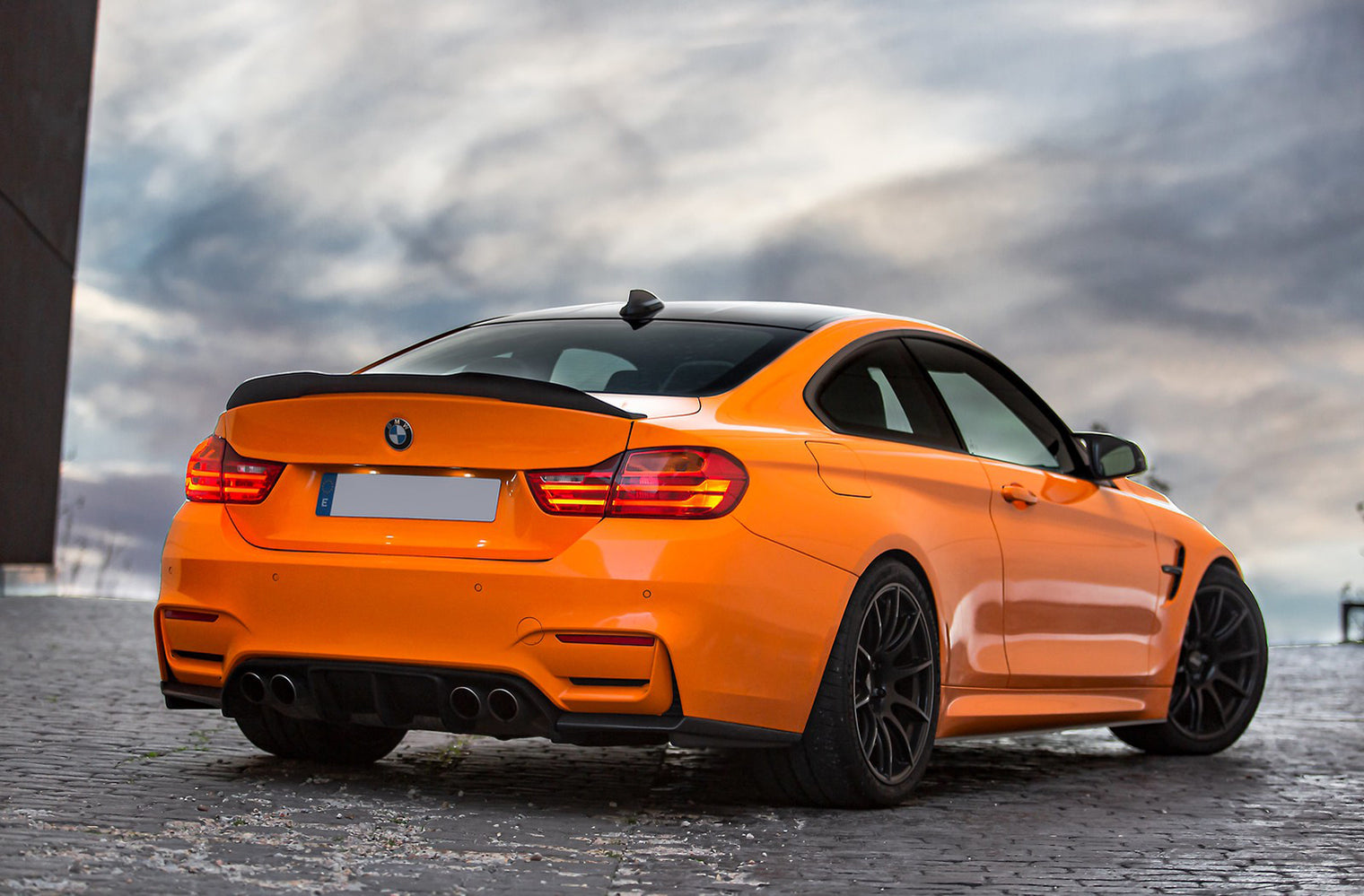

The SM-10 wheel includes details specifically implemented to enhance the BMW owners' track day and street performance experience. An optimized car setup begins with the right wheel and tire fitment, and without model-specific attention, maximum performance is compromised. These wheels were developed for various BMW chassis’s and will work in either square or staggered configurations.

These APEX wheels are produced using a manufacturing process known as flow forming. This process significantly reduces weight in the barrel, which has the greatest impact on rotational mass. During the manufacturing process, rollers apply high pressure to the inner barrel, compressing the aluminum into its final shape. This effectively eliminates porosity and aligns the grain structure of the metal, which increases tensile strength. The end result is a lightweight and extremely strong barrel that equals that of a traditional forged wheel at a fraction of the cost.

Features

Hub Centric: All ARC-8 wheels are purpose built for select vehicle applications
Center Caps: All APEX wheels come with our gloss black cap included that is interchangeable with the OE cap. We also offer additional colors for select fitments
Wheel Hardware: APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly
TPMS: All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. If you don’t have sensors, then select from our metal stems available in multiple finishes
Warranty: All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free

Face Profile
The ARC-8 wheel is available in two unique face profiles. The shallower face provides increased caliper clearance on narrow applications, while the deeper concave face reduces weight and creates a stunningly aggressive appearance on low offset and wide width applications. These two face profiles are available in all 17", 18" and 19" diameters.

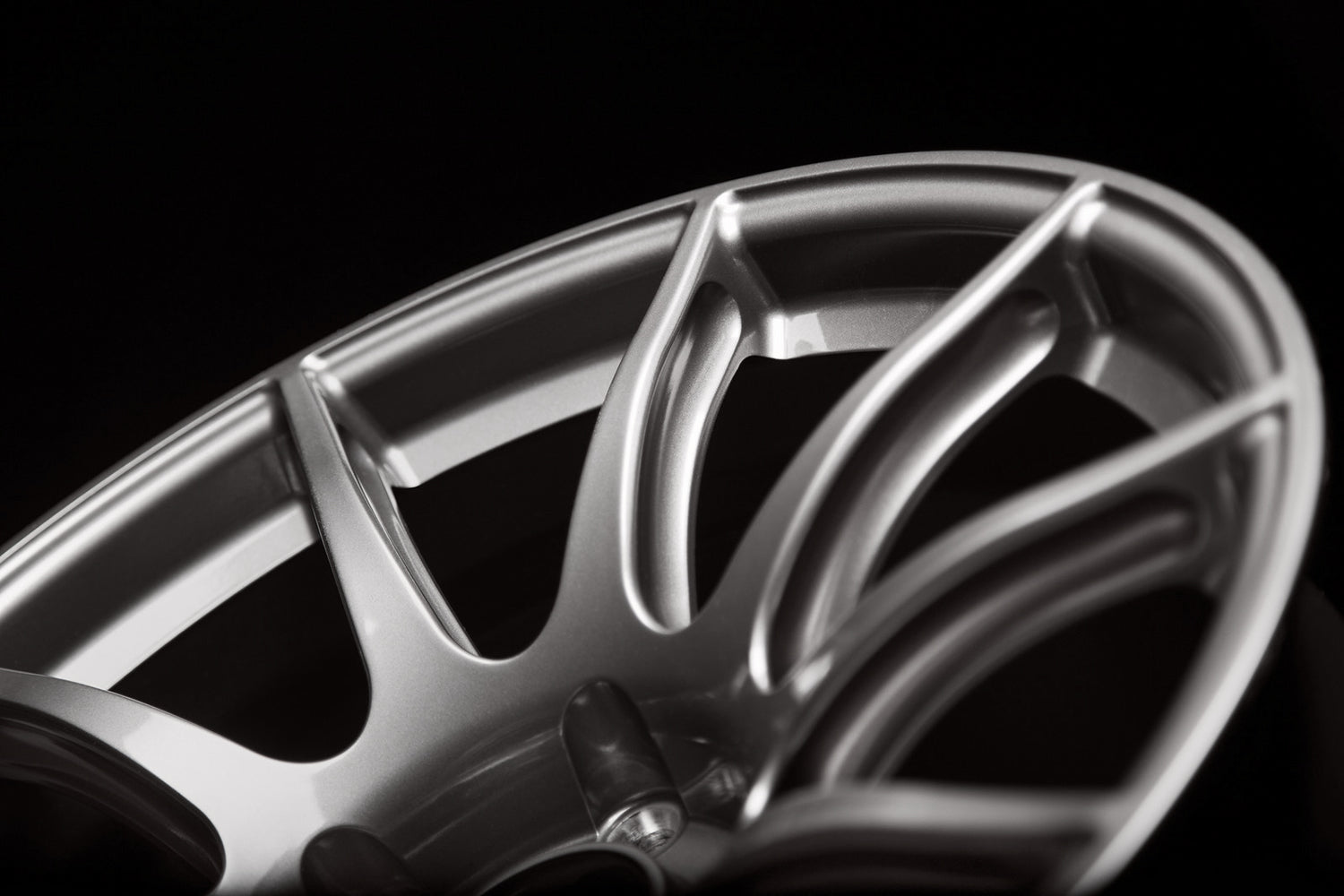

Spokes
The spokes of the ARC-8 were designed to be robust where they need to be and extra lightweight where they can be. The split "Y" spokes were carefully evaluated from every aspect to ensure light weight and remarkable strength. The lack of a deep front lip and spokes that connect directly to the barrel's lip create a rigid wheel with even load distribution. These features help reduce one of the most common concerns with aftermarket wheels — bending. Beauty follows function with this extremely popular design, as it adapts perfectly to both flat and concave versions.

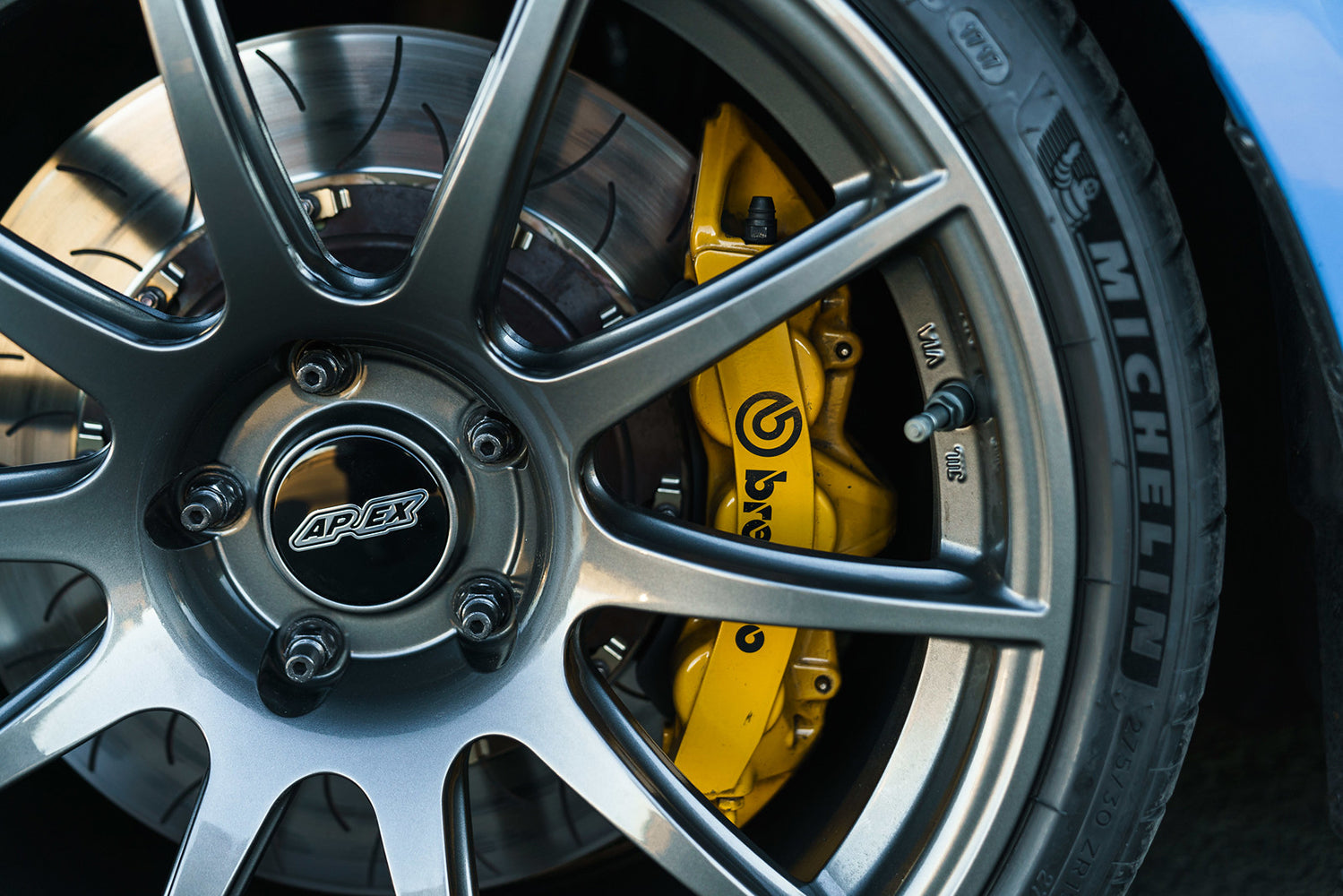

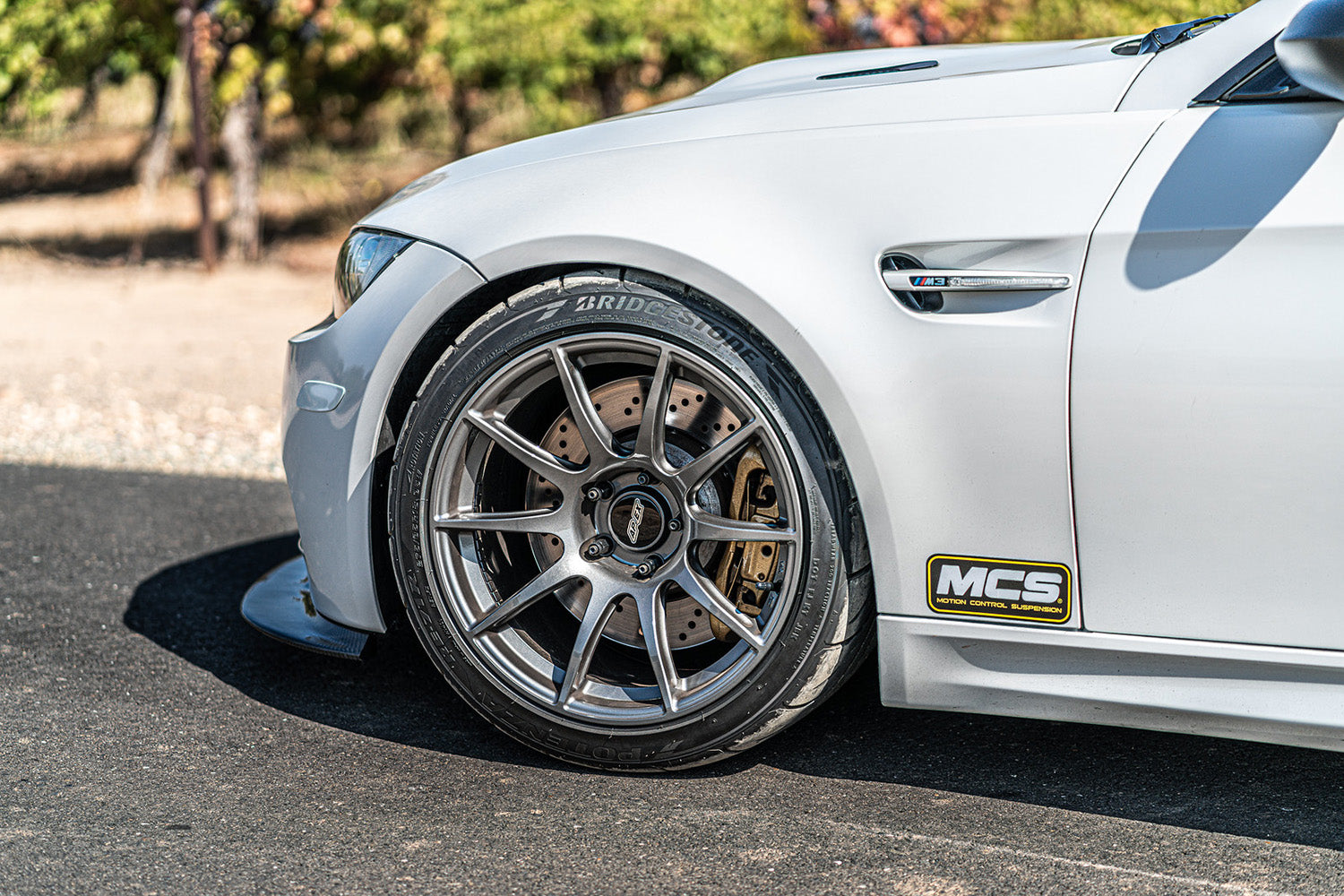

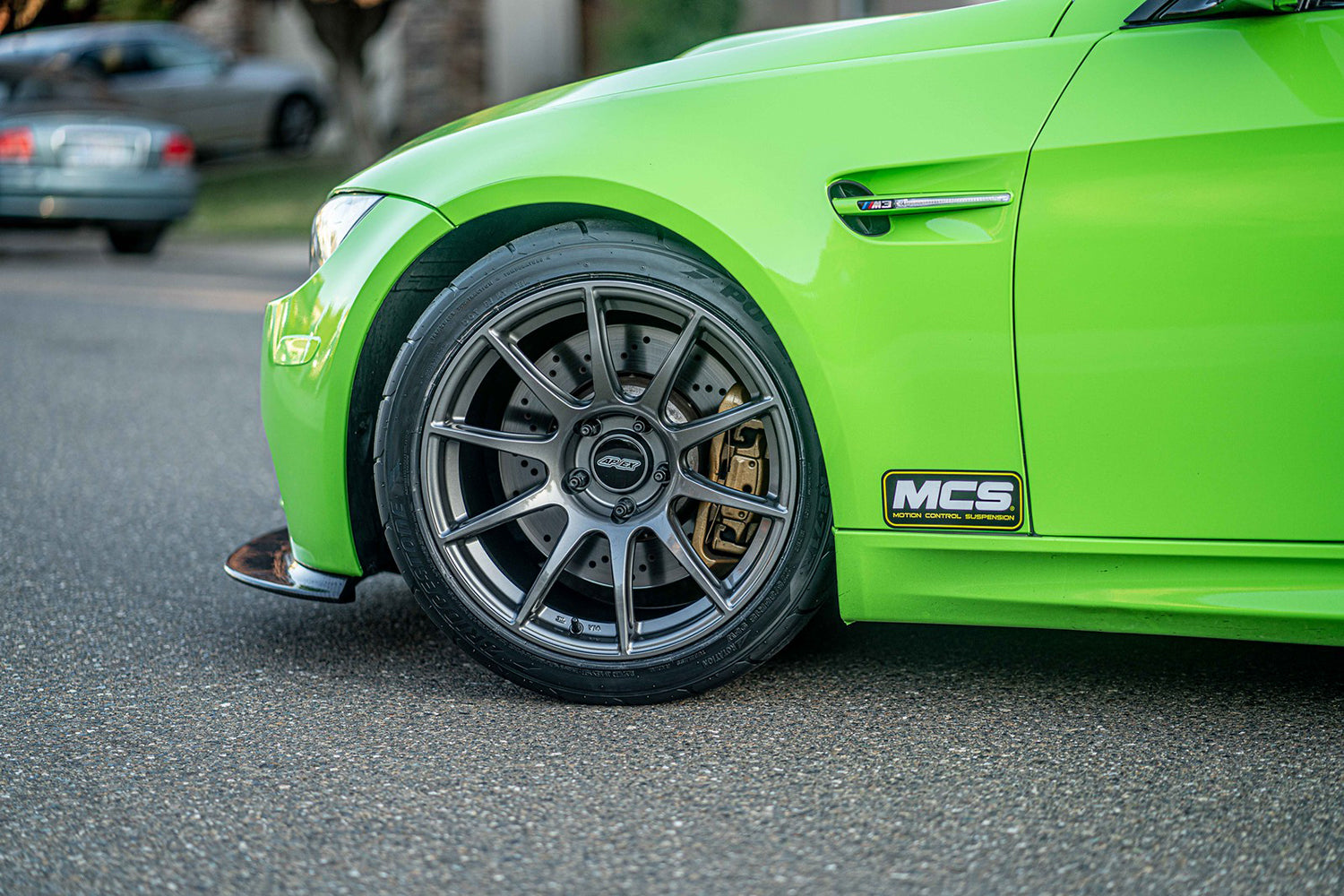

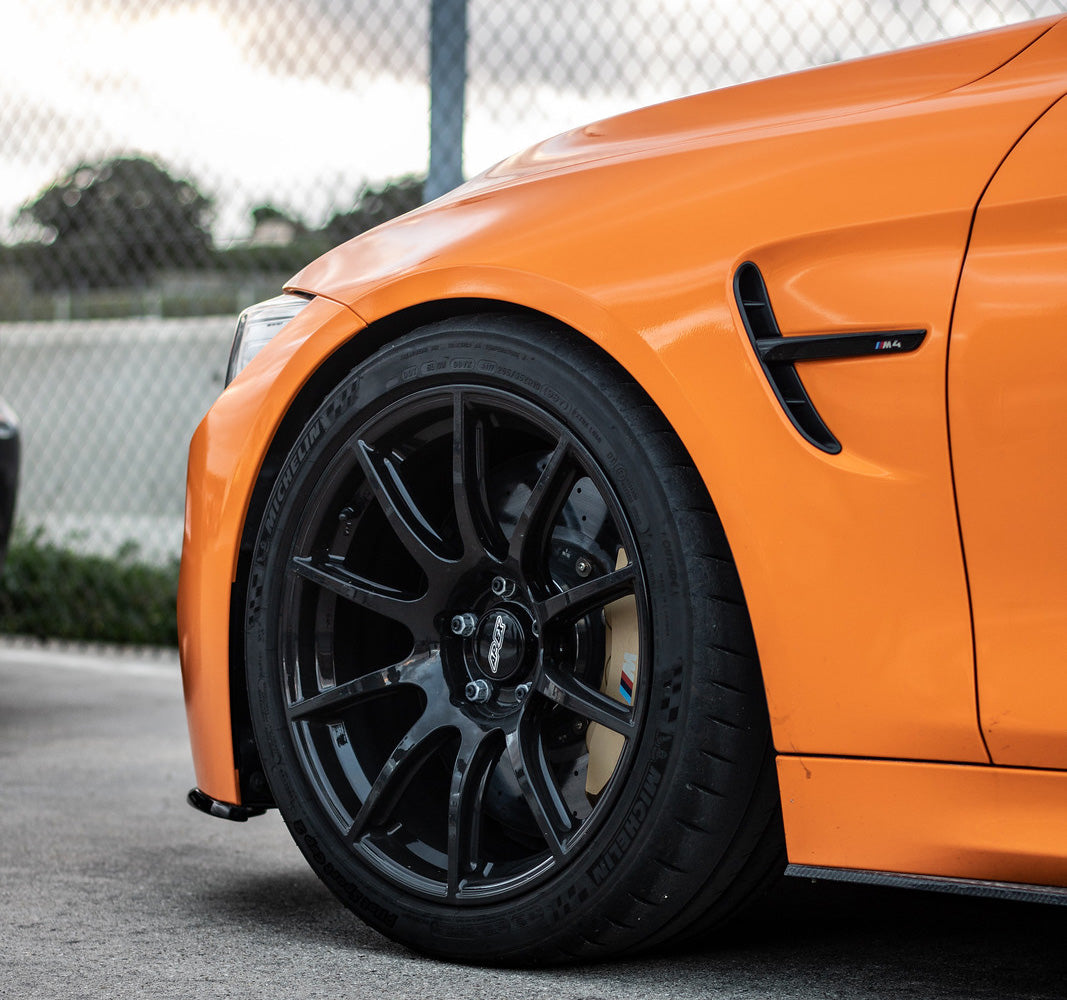

Brake Clearance
APEX wheels properly clear all OEM brake calipers. Our wheels are targeted at the serious performance-minded owner. The spokes of the flatter faced ARC-8 were designed to clear Big Brake Kits. This is the best and only choice for BBK equipped cars. The concave version of the wheel is the best option for cars with factory brake calipers. Contact our experts to confirm your specific fitment.

Brake Clearance - Barrel
Spoke clearance is only half the problem. The barrel opening on a wheel also needs to be big enough to clear the sides of your caliper and rotor. Many wheels on the market have aesthetic compromises in their design that consumers don’t even know result in major negative impacts on barrel clearance. Those wheels may work with smaller stock brakes, or smaller diameter big brake kits, but the larger kits will pose a major problem. The 17” ARC-8 has some of the best barrel-side BBK clearance, easily fitting most aftermarket 355mm kits. Contact our experts to confirm brake clearances for your specific application.

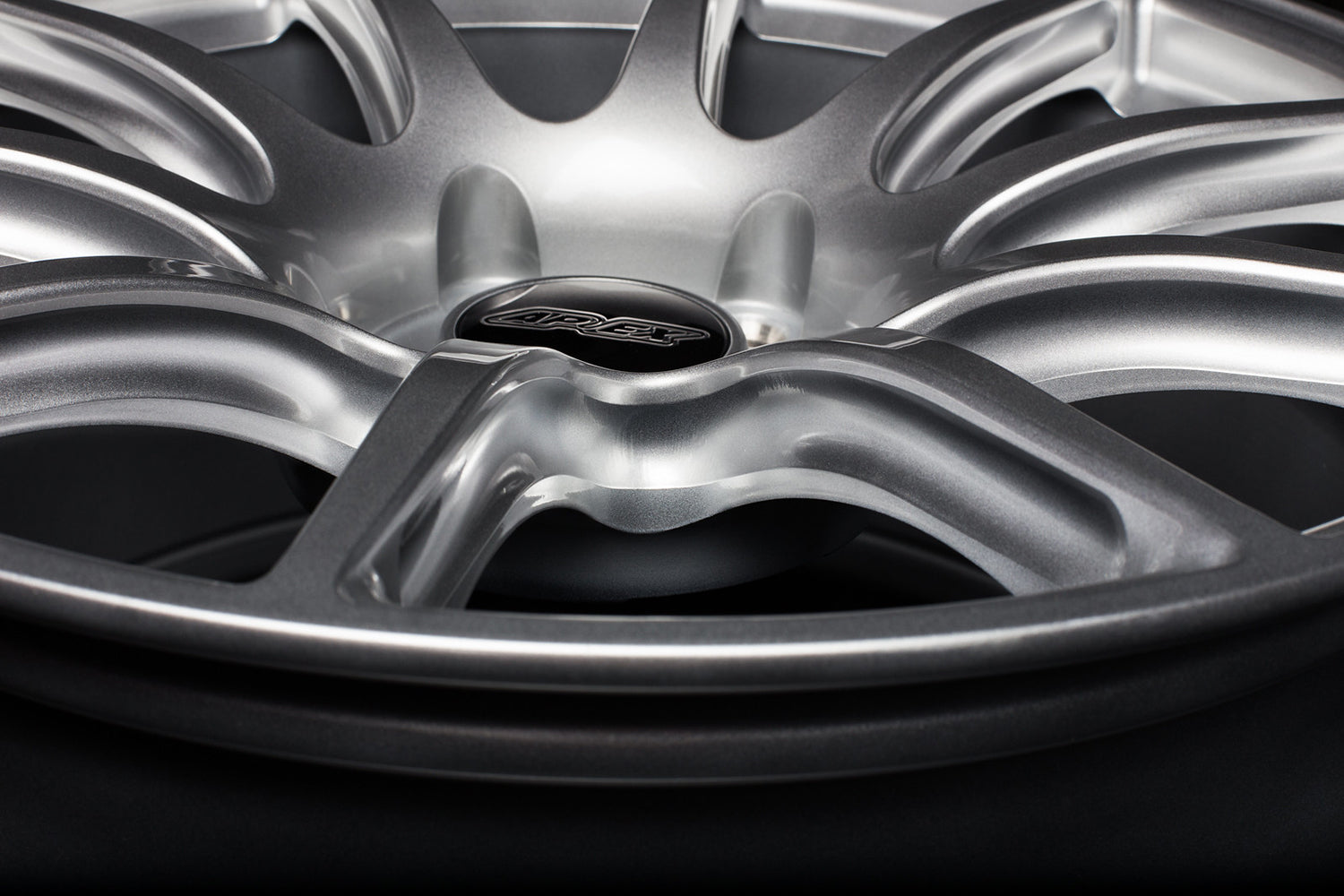

Open Hub Center
Race wheels can't just be light, they need to function in a high performance environment. Unlike the narrow lug recesses of most other wheels, the ARC-8 wheel boasts a completely wide-open design that easily fits over-sized race lugs and beefy impact sockets. This allows for quick and easy wheel changes at the track, and as a bonus prevents chips and scratches from tools for those just running these wheels on the street.

Hub Centric
All ARC-8 wheels are purpose built for select vehicle applications, and centering rings are never required for any BMW application. All 5x120mm bolt pattern wheels feature a direct-fit 72.56mm center bore.

Center Caps
We don't reuse one cap design for all our wheels. Every ARC-8 wheel is designed to work with factory center caps. You can easily replace APEX center caps with OEM roundels for a clean factory look. The ARC-8 wheel will come with either our carbon-look center cap or our redesigned, Gloss Black center cap that mimics the size and shape of a BMW factory center cap.

Wheel Hardware
The ARC-8 wheel can be used with all OEM and aftermarket mounting hardware with a 60° tapered seat. Lug bolts, wheel locks, and stud conversion kits all work perfectly. The ARC-8 wheel also accepts wheel spacers without issue. The shallow rear chamfer allows the wheel to remain hub centric even when 5mm flat spacers are used. The chamfer is deep enough to clear the chamfered lip some aftermarket spacers have that would typically cause improper seating and wheel vibration.

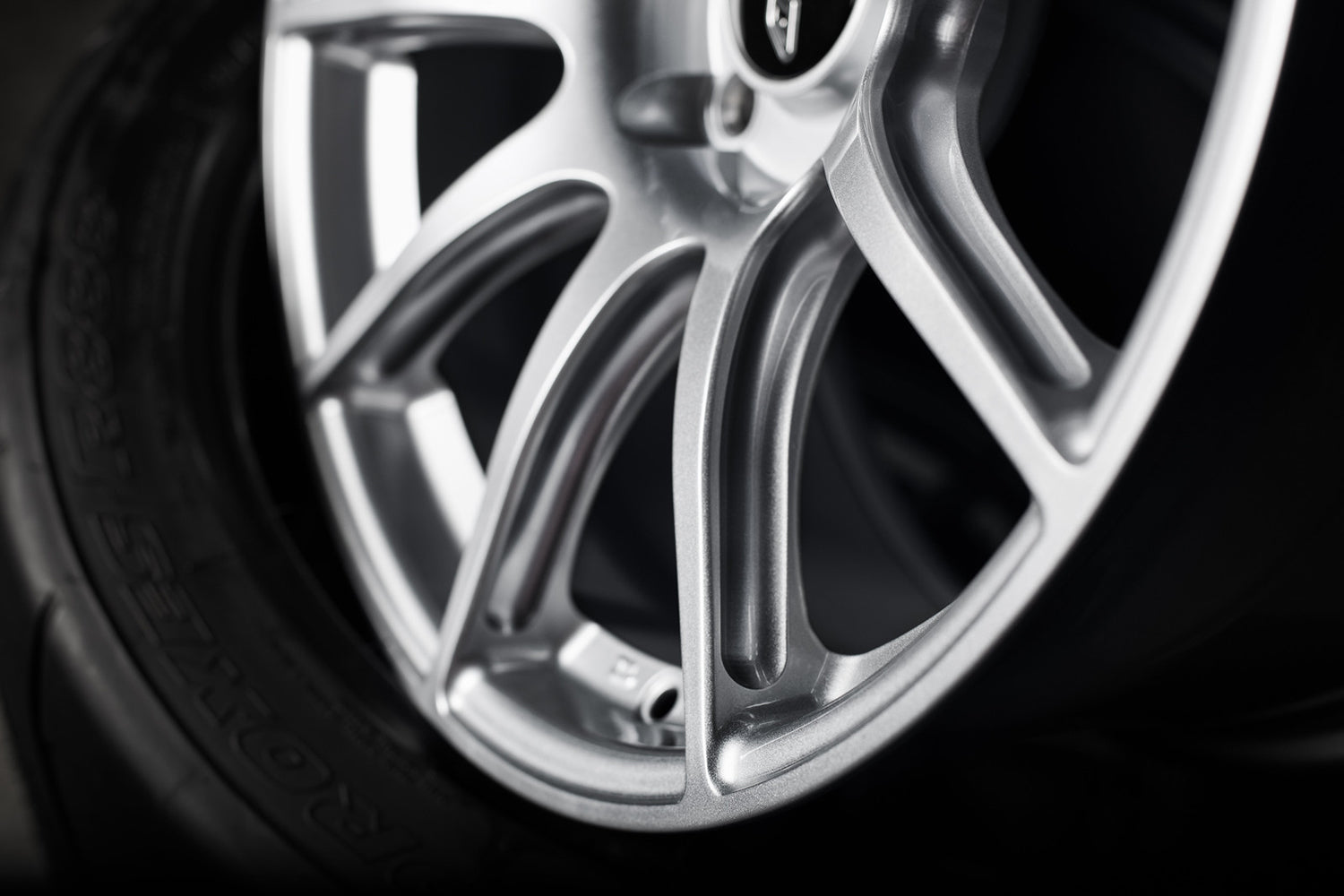

TPMS Sensors
TPMS sensors, which monitor tire pressure, are one piece of technology that can't be compromised. The attention to OEM compatibility on the ARC-8 wheel doesn't end with center caps. All APEX wheels accept OEM and aftermarket equivalent BMW TPMS sensors, and any standard sized metal or rubber valve stem.

SM-10 Available Sizes

Size	Bolt Pattern	Offset	Weight	Centerbore	Load Rating
18 x 8.5"	5x120	ET35	18.4 lbs	72.6	1550 lbs
18 x 9.0"	5x120	ET30	19.5 lbs	72.6	1550 lbs
18 x 9.5"	5x120	ET22	20.3 lbs	72.6	1550 lbs
18 x 9.5"	5x120	ET35	20.0 lbs	72.6	1550 lbs
18 x 10.0"	5x120	ET25	20.0 lbs	72.6	1550 lbs
18 x 10.0"	5x120	ET33	20.7 lbs	72.6	1550 lbs
18 x 10.5"	5x120	ET22	21.85 lbs	72.6	1550 lbs
18 x 11.0"	5x120	ET44	21.0 lbs	72.6	1550 lbs
19 x 8.5"	5x120	ET35	22.0 lbs	72.6	1650 lbs
19 x 9.0"	5x120	ET30	22.50 lbs	72.6	1650 lbs
19 x 9.5"	5x120	ET22	23.15 lbs	72.6	1650 lbs
19 x 9.5"	5x120	ET28	22.6 lbs	72.6	1650 lbs
19 x 9.5"	5x120	ET33	23.14 lbs	72.6	1650 lbs
19 x 10.0"	5x120	ET25	24.25 lbs	72.6	1650 lbs
19 x 10.5"	5x120	ET22	24.6 lbs	72.6	1650 lbs
19 x 10.5"	5x120	ET45	23.1 lbs	72.6	1650 lbs
19 x 11.0"	5x120	ET44	24.35 lbs	72.6	1650 lbs
