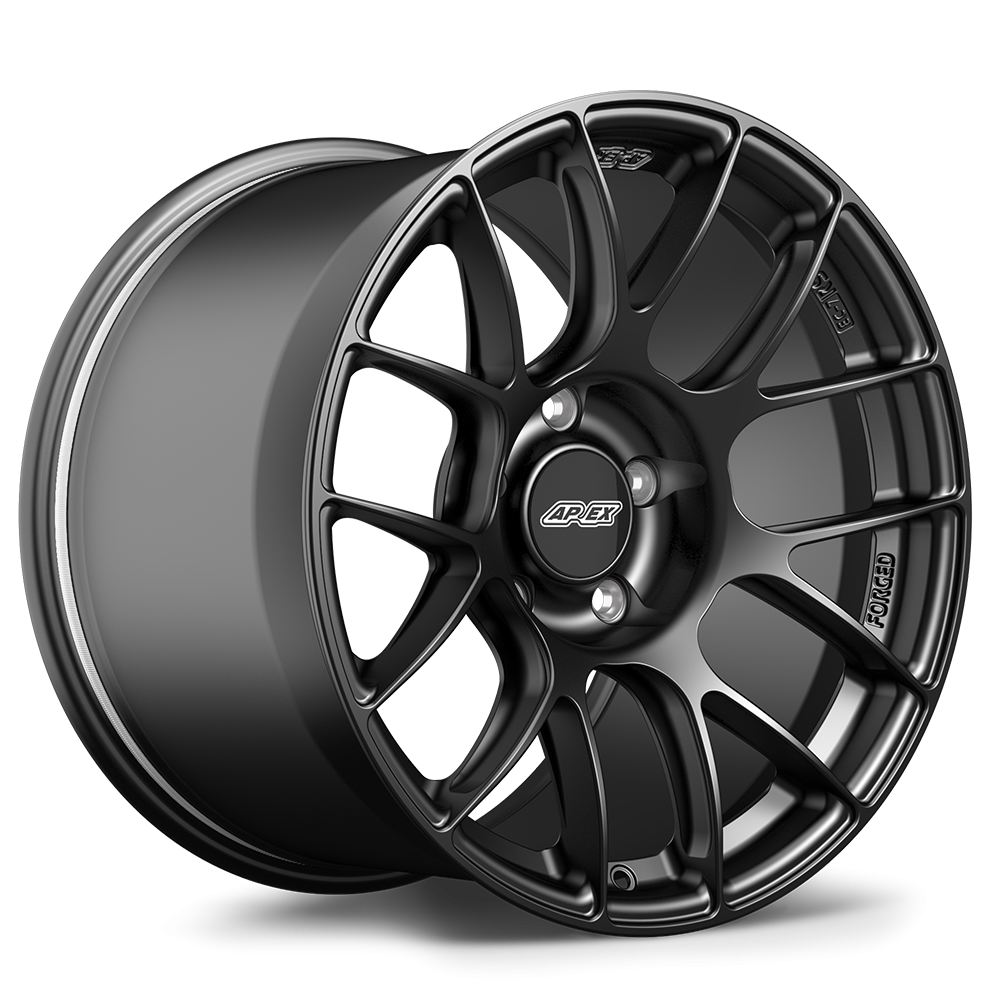

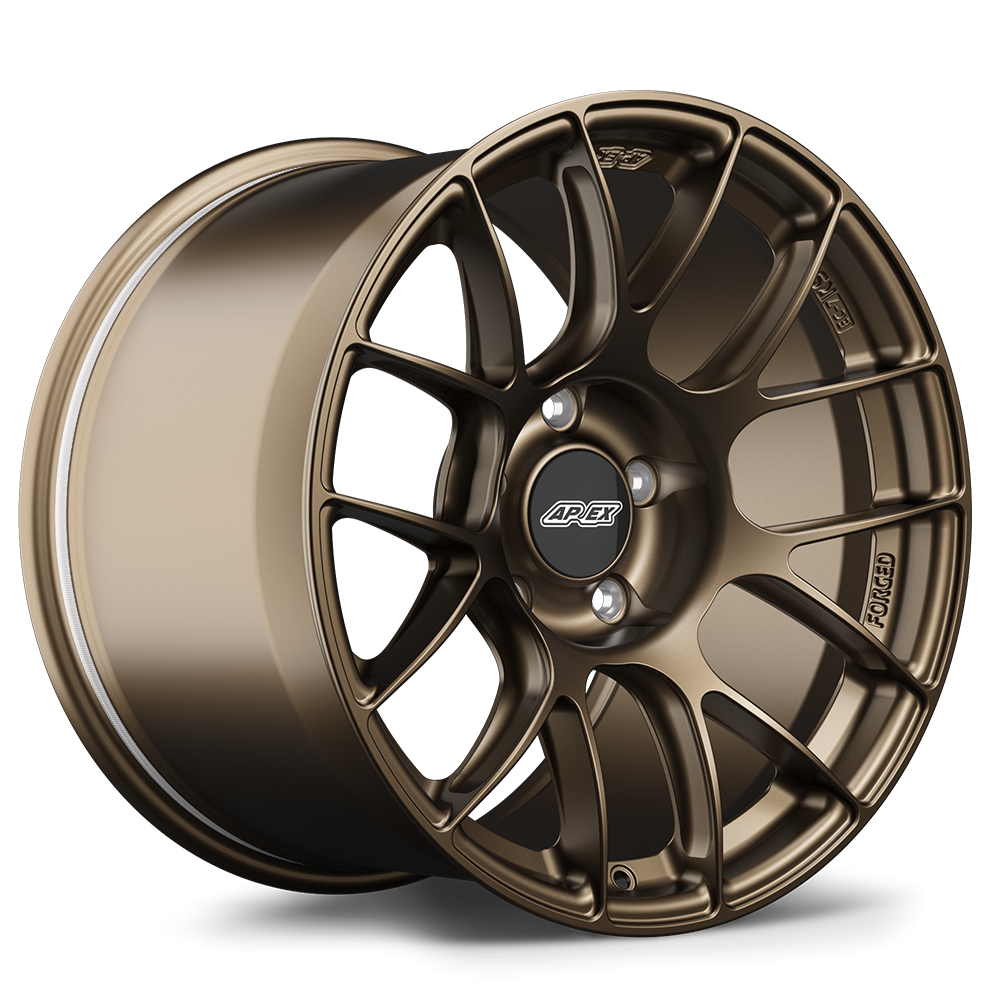

Apex - Sprint Line EC-7RS Forged Wheel - BMW (5x120)

Apex - Sprint Line EC-7RS Forged Wheel - BMW (5x120) ^Sale

Regular price $639.00

Vendor: Apex

Type: Wheels

SKU: EC7RS189ET30-5120-7256-AN

Size

18 x 9.0" ET30 18 x 9.5" ET35 18 x 10.0" ET25 19 x 9.5" ET22 19 x 9.5" ET28 19 x 10.0" ET25 19 x 10.5" ET25 19 x 10.5" ET45 19 x 11.0" ET44

Finish

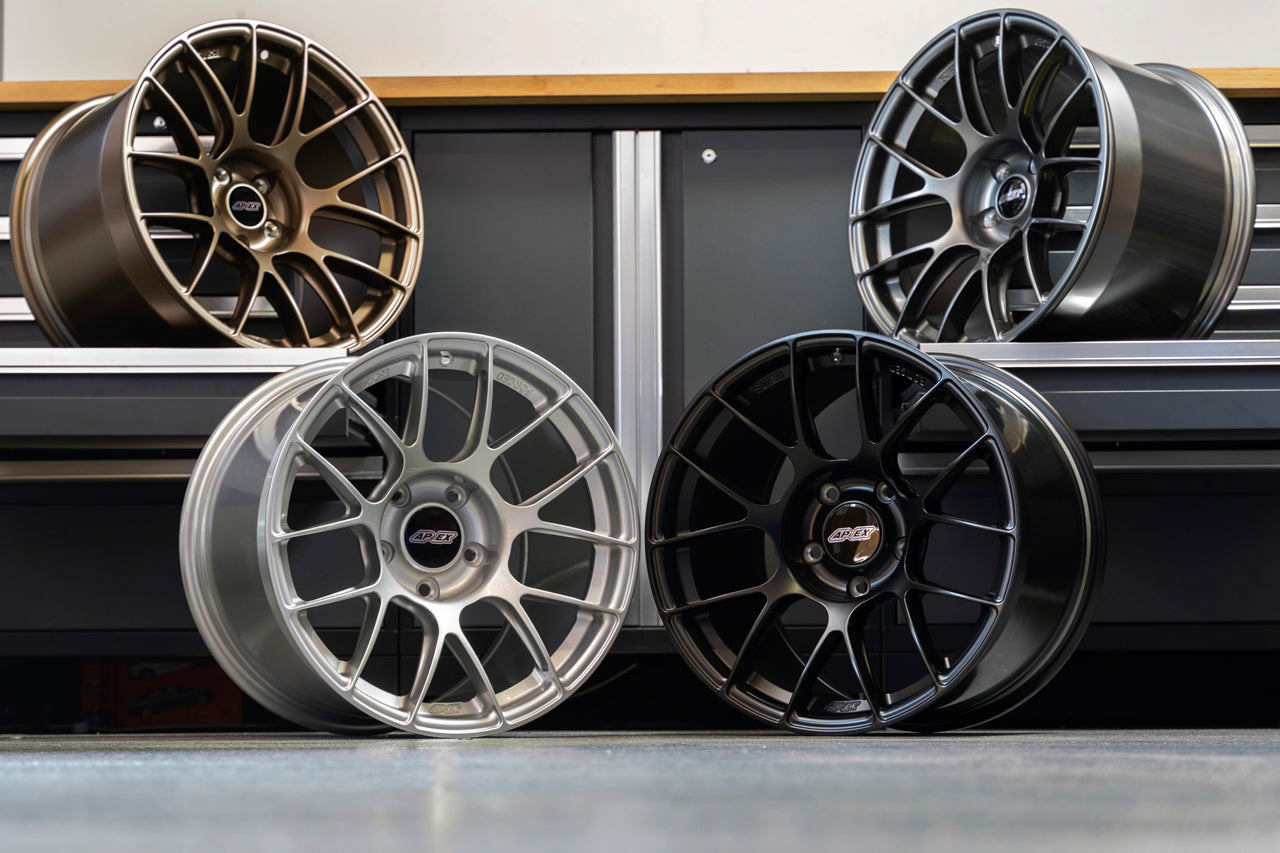

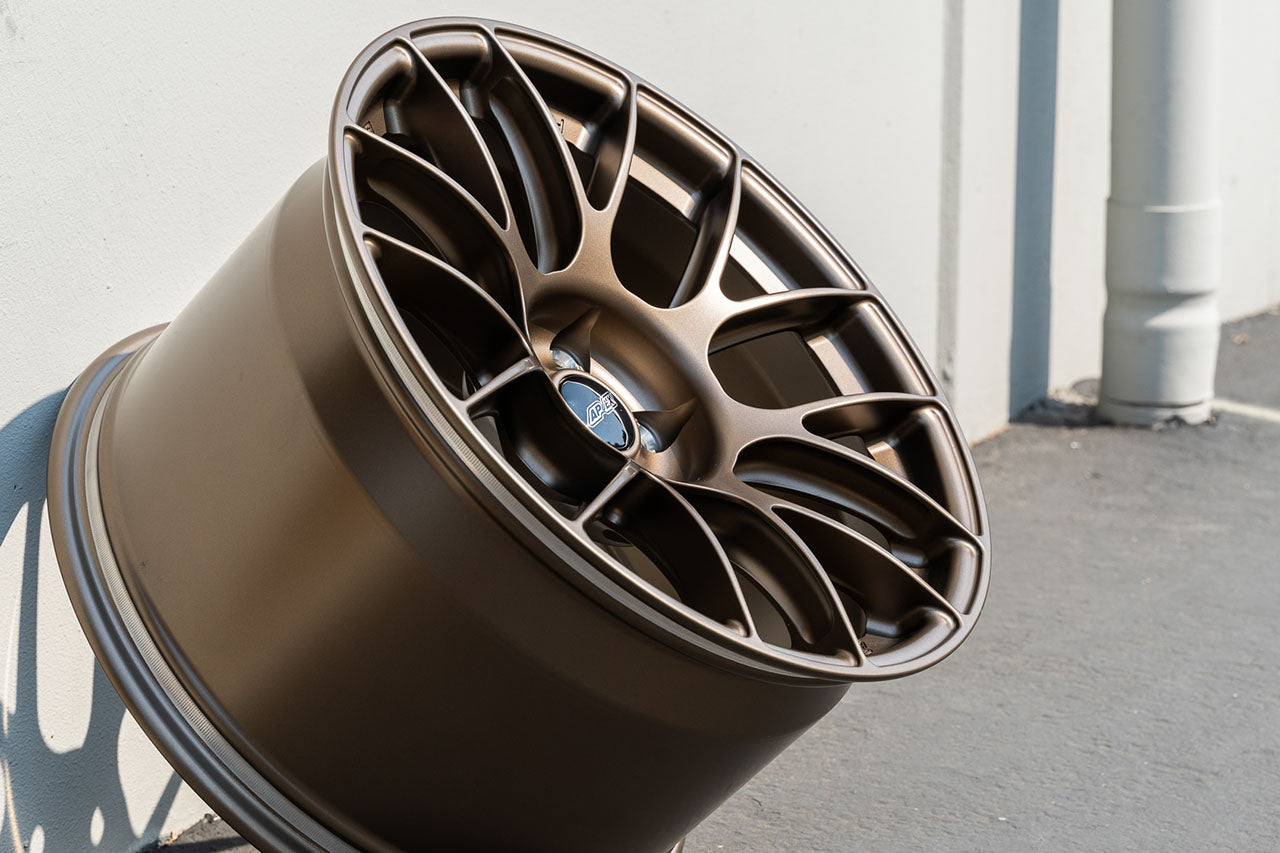

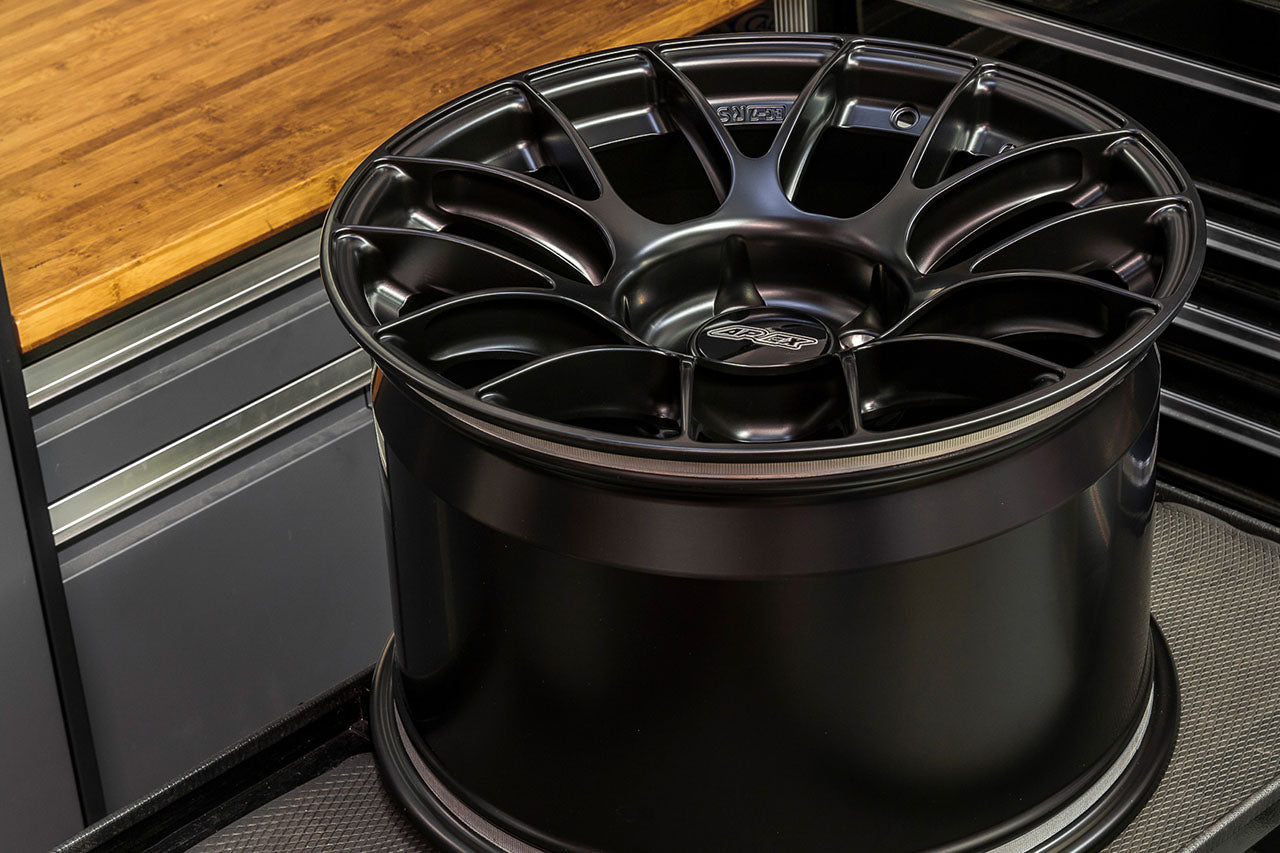

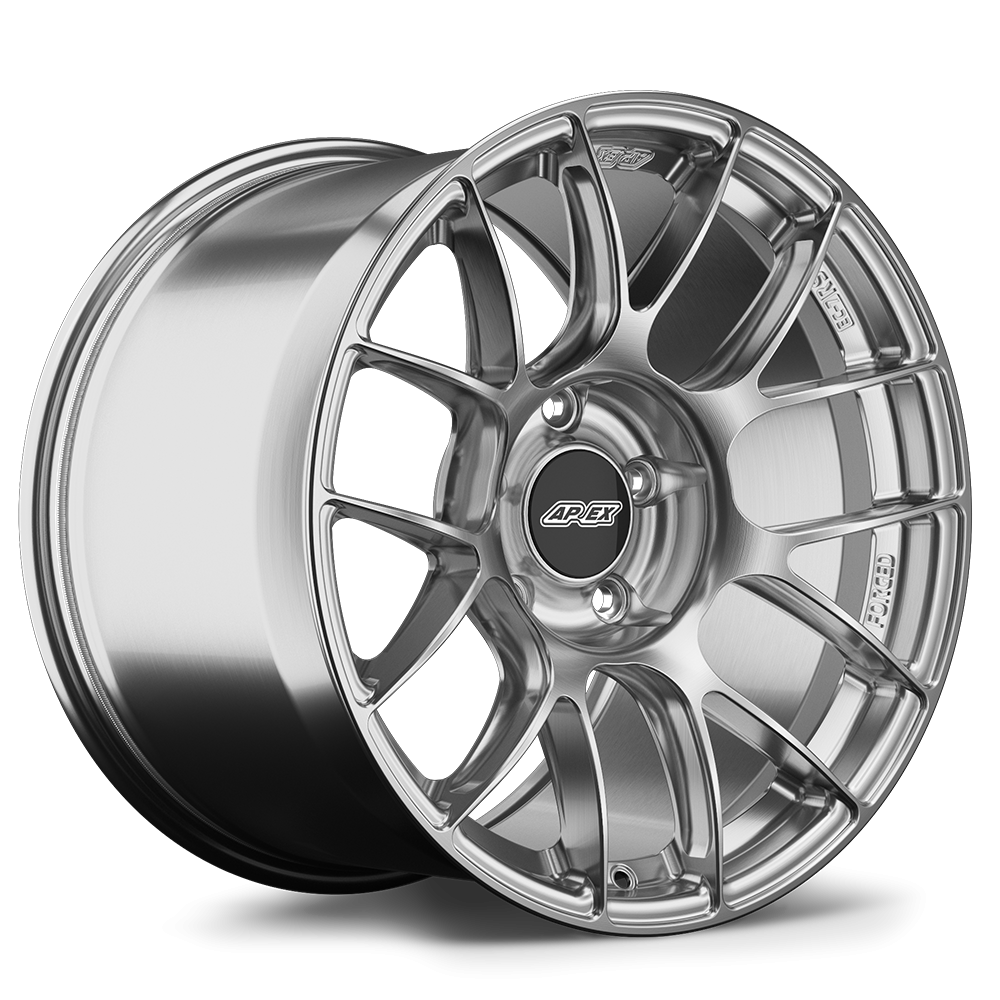

Anthracite Brushed Clear Satin Black Satin Bronze

Hurry! Only a few left:

Quantity

Join Waitlist

Compare Wishlist

Share on Facebook Tweet on Twitter Pin on Pinterest

Inform when this item available:

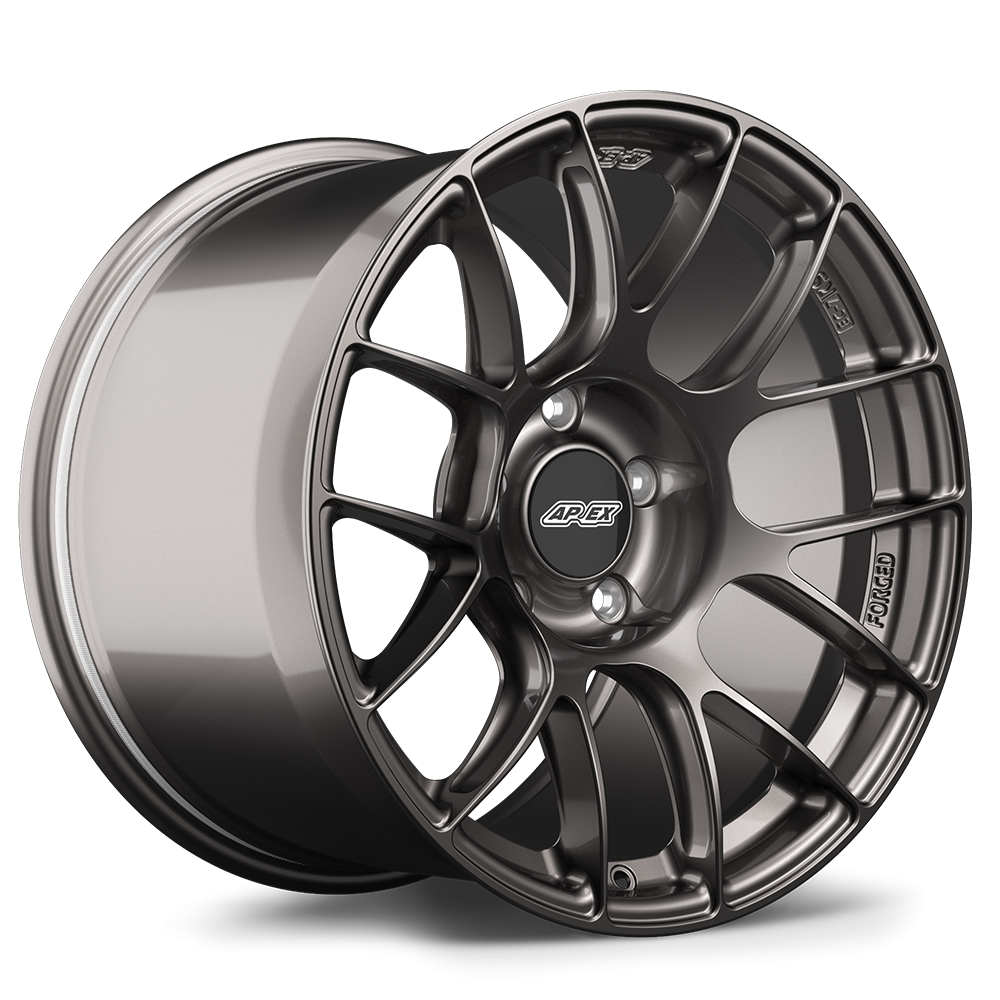

Apex - Sprint Line EC-7RS Forged Wheel - BMW (5x120) - 18 x 9.0" ET30 / Anthracite

$639.00

Size

Finish

Description

As part of our forged Sprint™ line, the EC-7RS was built to be extremely light while still offering a meaningful strength increase over our flow formed wheels. Engineered for drivers looking to shed as much weight as possible to improve lap times.

Features

Hub Centric: All EC-7RS wheels are purpose built for select vehicle applications
Center Caps: All APEX wheels come with our gloss black cap included that is interchangeable with the OE cap. We also offer additional colors for select fitments
Wheel Hardware: APEX wheels can be used with all OEM mounting hardware, proper aftermarket hardware and most wheel spacers. Wheel locks and stud conversion kits also work perfectly
TPMS: All APEX wheels accept OEM and aftermarket Tire Pressure Monitoring Sensors and standard fit valve stems. If you don’t have sensors, then select from our metal stems available in multiple finishes
Warranty: All APEX wheels come with a lifetime structural warranty against defects in workmanship and materials, plus a 1 year finish warranty. Exchanges are fast, easy, and hassle-free

10K tons of pressure
Our new forgings weigh as much as 120 pounds before machining. To form such a thick blank we require special equipment capable of 10,000 metric tons of pressure. This extreme pressure increases the strength of the aluminum by eliminating porosity and improving the grain structure.

True motorsport blanks
Many companies use 3rd-party blanks intended for non-motorsport wheels which can severely limit sizes, concavity, spoke design, and critical brake clearance. We designed our very own blank profiles from scratch which gives us total control over the final product, resulting in exceptionally deep spokes and stronger designs.

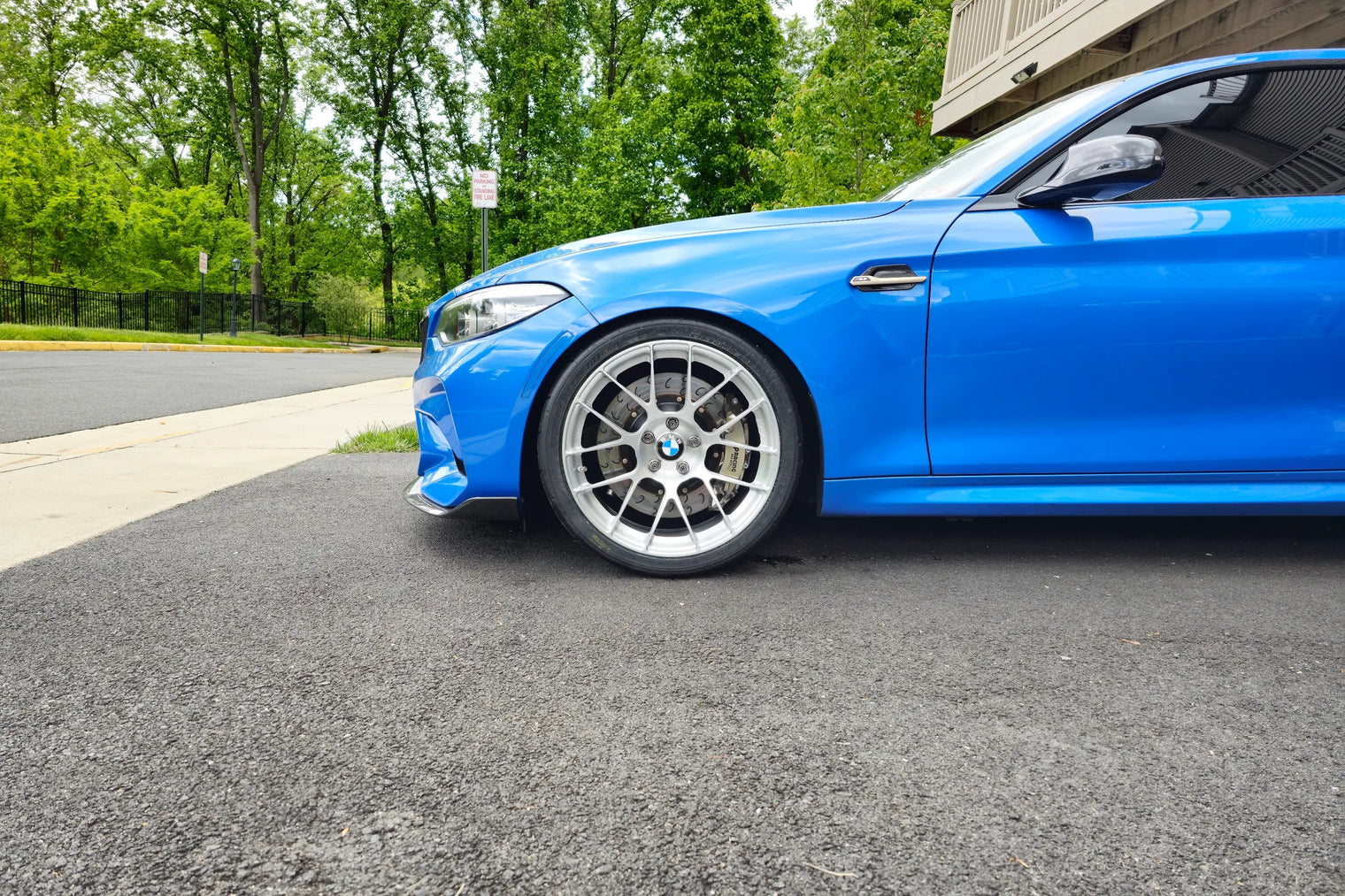

Big Brake Clearance
From day one, APEX has been on a mission to build wheels that clear big brakes. Our new forged wheels are the product of everything we’ve developed over the past 10+ years, including an innovative high-clearance barrel design and vehicle-specific spoke profiles.

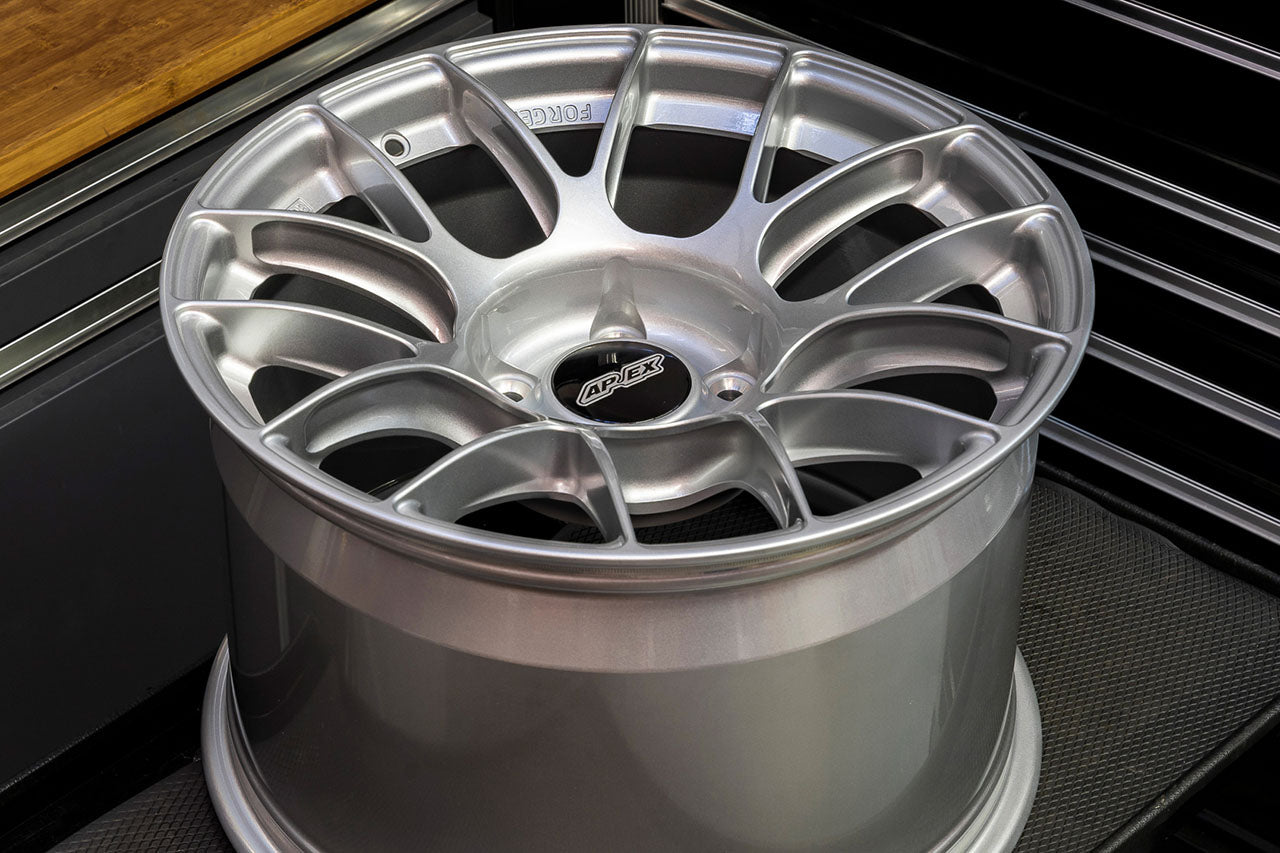

Side Milled Spokes
One of the most significant upgrades to the EC-7RS is the addition of wider and deeper side-milled spokes. Any excess material that doesn’t add strength is carved out using a precision CNC ball cutter. Side-milling is often deemed cost-prohibitive by others, but for true performance without compromise we believe it's essential.

A Stronger Lightweight Wheel
Our EC-7RS wheels are lightweight without the strength compromises found on typical lightweight wheels. First, we carved out as much material as possible, then we purposefully added one pound back to reinforce critical areas, creating a stronger inner lip and a higher load rating.² What’s the point of a lightweight wheel if it’s fragile?

Weight Optimized
We conducted extensive Finite Element Analysis (FEA) to reinforce high-stress areas and to remove material where it didn’t improve strength. The result is a wheel that is exceptionally light without the strength compromises found on typical lightweight wheels.

Independently tested
We don't rely solely on computer simulations or unverifiable in-house testing. We believe independent testing is critical to protect consumers in this unregulated industry. We chose STL, an independent lab in Ohio, to test our Sprint™ wheels far above JWL standards, including increases in testing duration, impact drop height, and total load.

Tougher inner lip
The inner lip is the most vulnerable part of a wheel, because it has no spokes for support. By using forged 6061-T6 aluminum, and reinforcing this high-impact area with more material, we provide an extra layer of protection against track berms, potholes, and whatever else the road may throw at you.

Deeper concavity
Our new forgings were redesigned to create extra deep, concave spoke profiles. Their new shape allows us to make any profile, from flat to deep and everything in between. Each one is optimized for a specific application using 3D laser scans of factory and aftermarket brake kits.

Built for impact sockets
Track wheels need track tools. Don’t settle for wheels that require undersized tuner lugs or thin walled sockets. All APEX wheels accommodate over-sized race lugs and impact sockets to make swapping wheels lightning fast.

Paintless Knurled Beads
Whether it’s a day at the track or months of street driving, repeated hard braking can make a tire slip along the bead seat and go out of balance, causing vibration. Knurled beads help, but are less effective when painted over. Our forged wheels feature unpainted knurled beads that stay sharp and maximize grip.

Premium Finishes
Our Forged wheel line enabled us to release the finishes we’ve always hoped for. Fully polished aluminum, hand brushed with tinted clear, and a much wider range of painted finishes. Our forged wheels not only deliver performance, but also distinctive new styles as well.

True VIA, JWL and Beyond
APEX Forged Classic wheels exceed JWL load rating requirements by almost 20%. Some manufacturers don't meet the minimum requirements, yet still claim to be compliant. Always compare load ratings to ensure you aren’t sacrificing critical strength for a slightly lighter wheel. The VIA is an independent wheel testing and auditing agency similar to TÜV. Many companies falsely claim their wheels have been certified, and even use the VIA stamp without permission. Our Forged Classic wheels have been certified, and we provide the registration numbers for every wheel. Protect yourself. Demand registration numbers from manufacturers

EC-7RS Available Sizes

Size	Bolt Pattern	Offset	Weight	Centerbore	Load Rating
18 x 9.0"	5x120	ET30	18.5 lbs	72.6	1600 lbs
18 x 9.5"	5x120	ET35	18.8 lbs	72.6	1600 lbs
18 x 10.0"	5x120	ET25	19.1 lbs	72.6	1600 lbs
19 x 9.5"	5x120	ET22	19.5 lbs	72.6	1600 lbs
19 x 9.5"	5x120	ET28	19.7 lbs	72.6	1600 lbs
19 x 10.0"	5x120	ET25	20.2 lbs	72.6	1600 lbs
19 x 10.5"	5x120	ET25	20.6 lbs	72.6	1600 lbs
19 x 10.5"	5x120	ET45	20.3 lbs	72.6	1600 lbs
19 x 11.0"	5x120	ET44	20.8 lbs	72.6	1600 lbs
