The Original Tesla Model 3 Big Brake Kit. Big brakes, big stopping power.
Fit your Tesla Model 3 with the rotors it should have been equipped with from the factory with the age Mill 365mm Big Brake Kit. These massive 365mm two piece discs give your Model 3’s brakes a significantly higher thermal limit – something you absolutely need with stock brake pads or track use.
We can’t decide if these brakes work better than they look, or look better than they work!
- Massive upgrade to cooling and stopping power
- 365mm diameter vs 320mm OEM rotors
- Lightweight, 3.41lbs lighter each
- Visually stunning two piece rotor

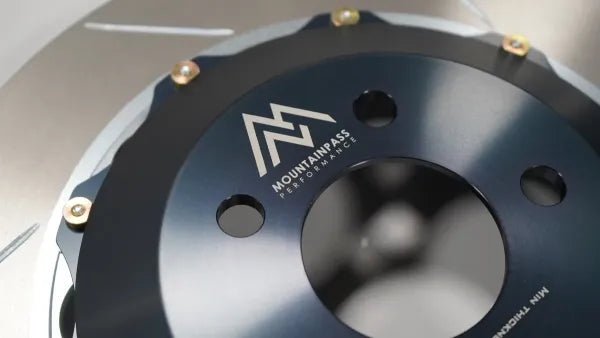

- Aluminum anodized hat made from US-Sourced 6061-T6
- Directional rotors with curved vanes for optimal cooling
- Manufactured and Assembled in North America!
- Rotors made by a leading brake supplier with winning experience in the highest level of motorsport.
- Tested on the racetrack by professional drivers – these discs with some good pads and fluid is all you need to be able to run all day at the track.
- For use with 19″ wheels or larger ONLY
During MPP's testing in California they overheated the Model 3’s brakes while enjoying a spirited drive downhill on Page Mill Rd. and almost completely lost braking power! For that reason MPP has named this brake kit the Page Mill 365mm Big Brake Kit for Tesla Model 3! This BBK upgrades the rotor size from the OE’s tiny 320mm to 365mm, and the thickness goes up from 25mm to 26mm. This is a MASSIVE difference in rotor size! As a result the thermal ceiling, even on stock brake pads goes up dramatically.
The Model 3 struggles with braking performance. The main source of the problem is overheating the front pads. Larger rotors dissipate much more heat, and that is why you find large rotors on just about every sports car in the world. No matter what kind of brake pad you put on you still need a way to shed heat. It is almost more important when using a street friendly brake pad to have a large rotor, as you want that rotor to run at the lowest possible temperature to keep from overheating the mild pad.

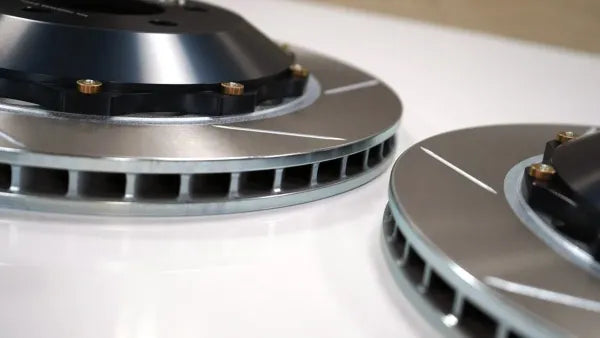

By moving from a single piece iron rotor to a two-piece aluminum hat and iron rotor ring, weight of the brakes is reduced, despite the significant increase in size! This kit reuses the OEM caliper, which is notable as the caliper is designed to have very low brake drag. This plays an important roll in the Model 3’s outstanding energy efficiency. These rotors also have curved vanes, the internal air passages in the rotor. Because the vanes are curved they act as an air pump and dramatically increase the airflow and cooling of the disc at speed.
Testing
Testing was performed using a MoTeC C125 dash logger and some IZZE CAN-Based IR Brake Temperature sensors to prove the impressive difference that this brake kit provides over the factory rotors, with an almost a 100C difference in rotor temperature. It is clear in this data that after only a few hard braking applications that the OE rotor has gone thermal, while the MPP rotor still has plenty left in reserve.
Our big brake kit, especially when combined with higher friction, higher temp brake pads, is the ideal solution for the road car that likes to see the track. It solves the problems of at the track brake overheating, without the compromise of big brake kit costs or inefficiency on the road. Even for cars that don’t hit the track, as we saw with our spirited driving, the OEM pads are designed to be environmentally friendly. As a result, they have a very low maximum temperature before they fade. A larger rotor with enhanced cooling will delay that pad fade for as long as possible. Not to mention, they look awesome behind your wheels!

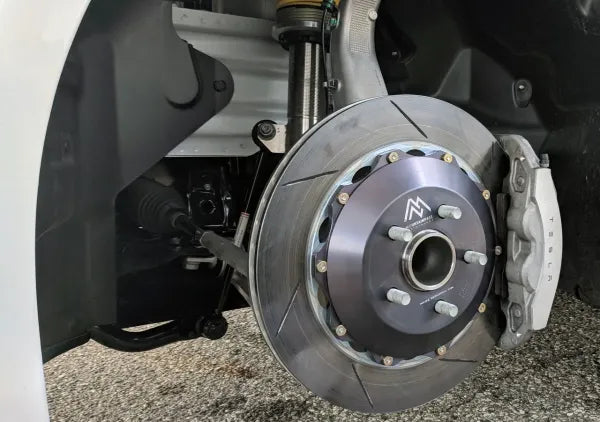

Easy InstallationMPP's big brake kit installs in less than one hour and is fully reversible. The factory caliper’s brake line does not need to be disconnected. A bracket is simply installed with supplied hardware. Then, the new rotor is slipped on after the removal of the OE dust shield (dust shield removes very quickly, does not require hub removal). Finally, the caliper is bolted to the new bracket. We install and remove this rotor for every track day as we’re currently driving primarily on 18″ wheels!
This kit includes the following
- (2) Rotor rings and rotor hats assembled and ready to install on the car. They are directional so be sure to install them on the correct side!
- (2) Caliper brackets
- (4) Caliper bracket bolts
Note: This brake kit will NOT work with 18″ wheels. 19″ wheels or larger are required.
Vehicles Supported
Tesla Model 3, including Performance
