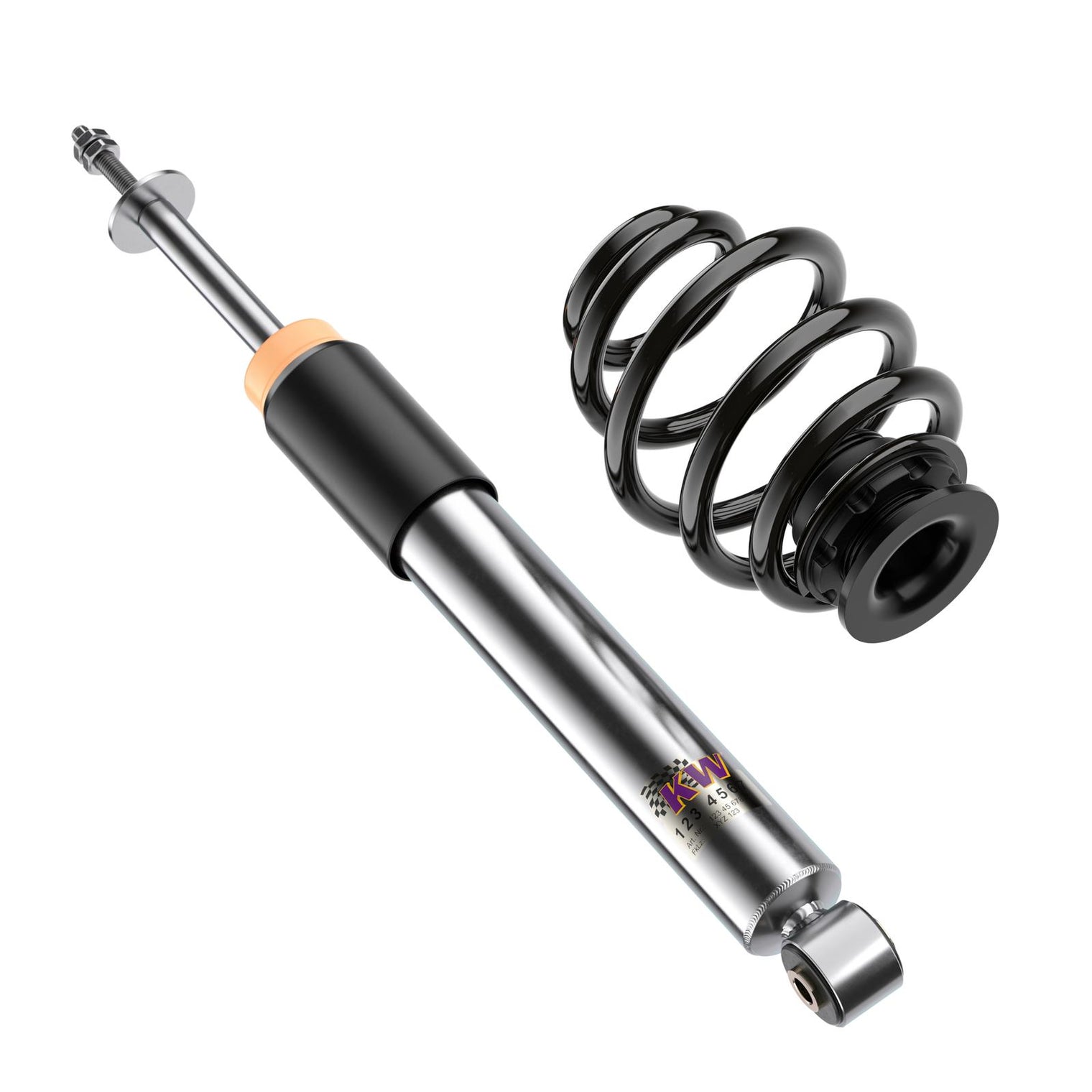

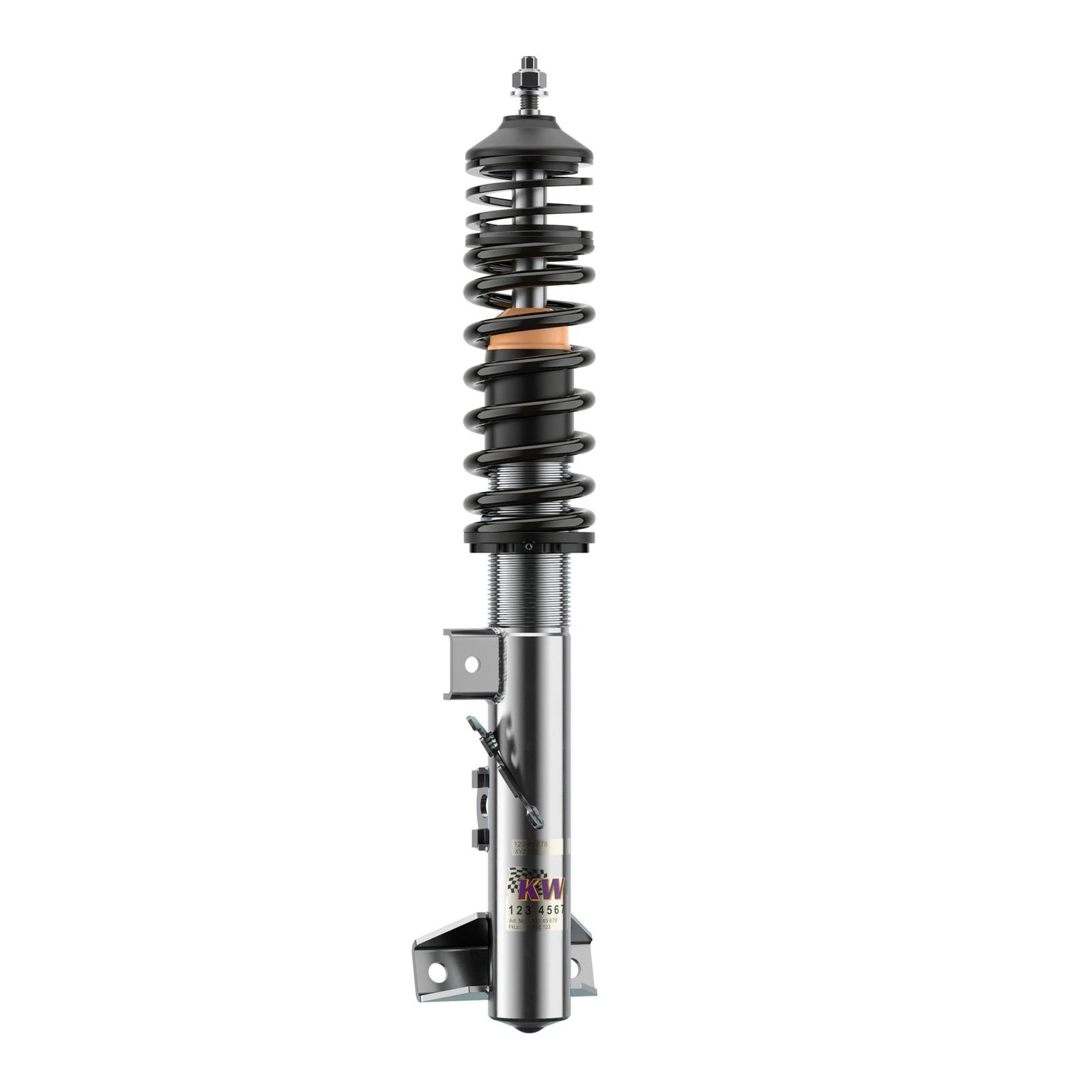

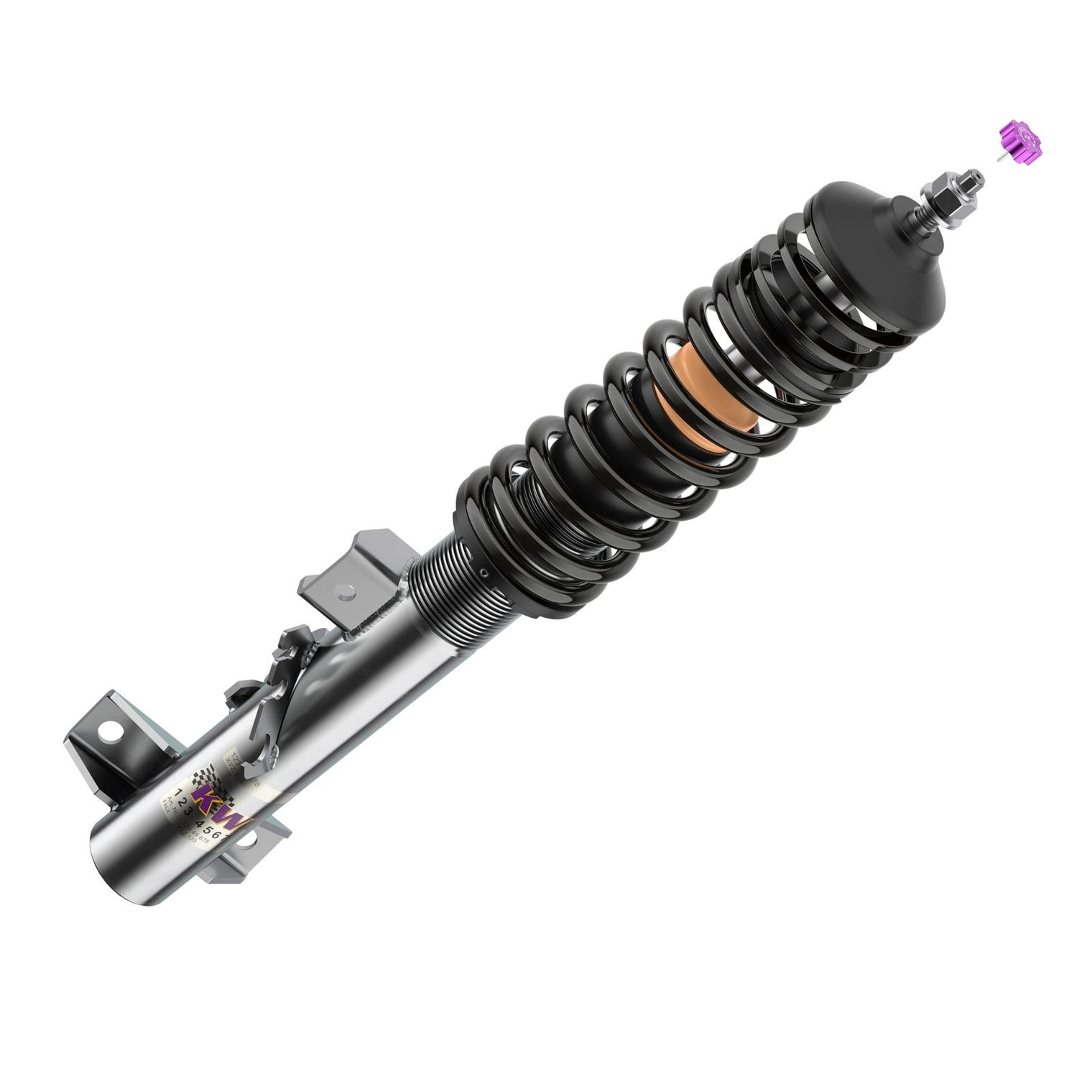

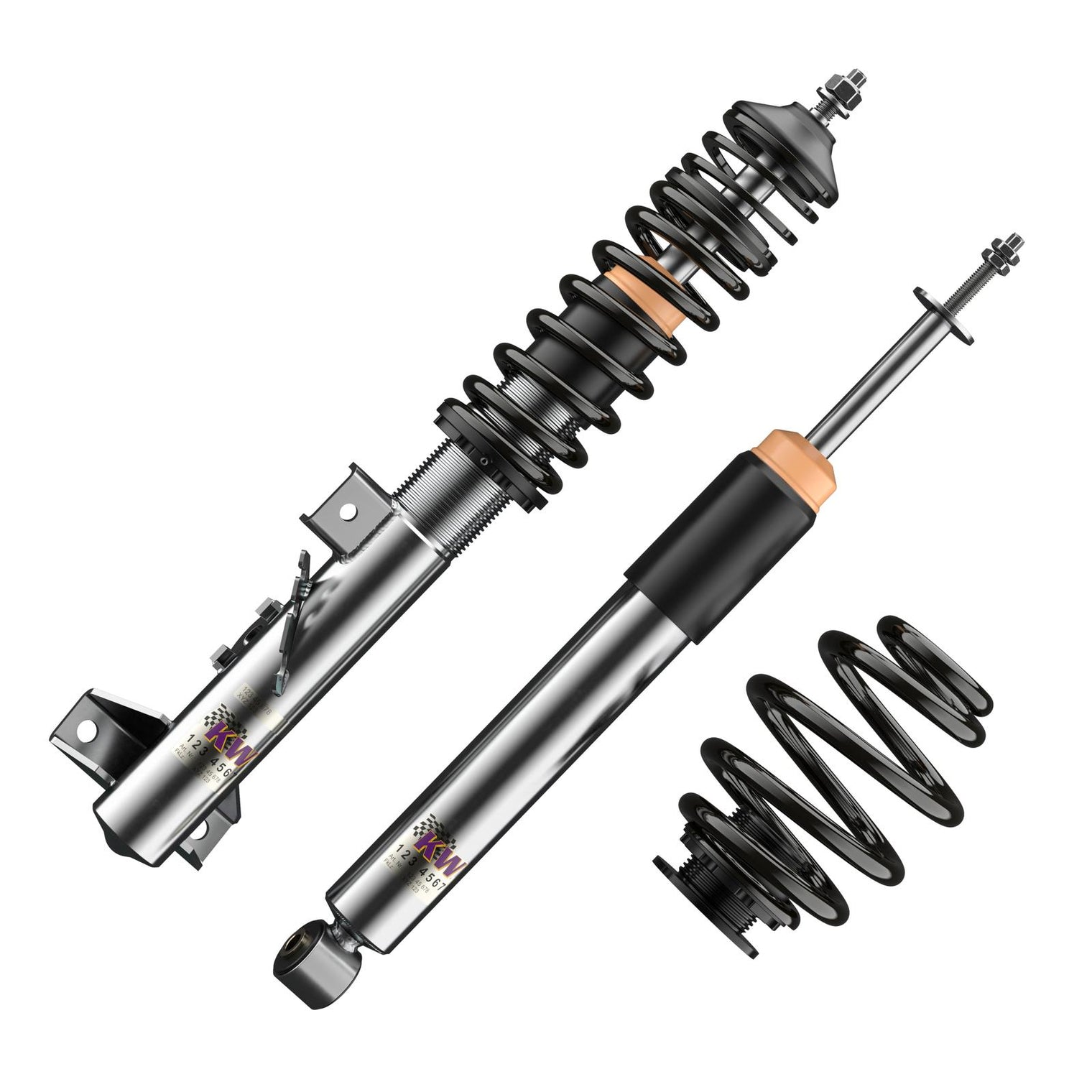

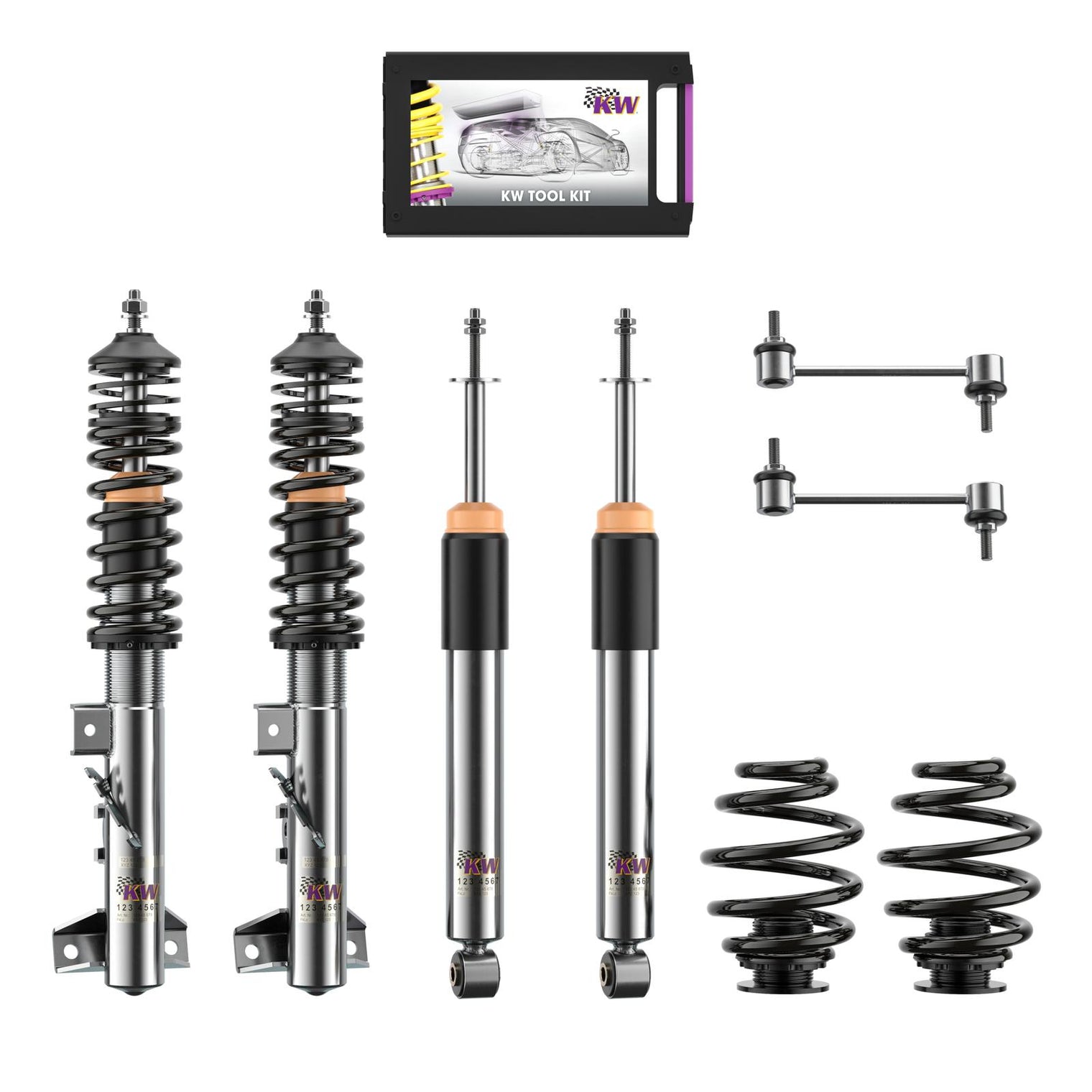

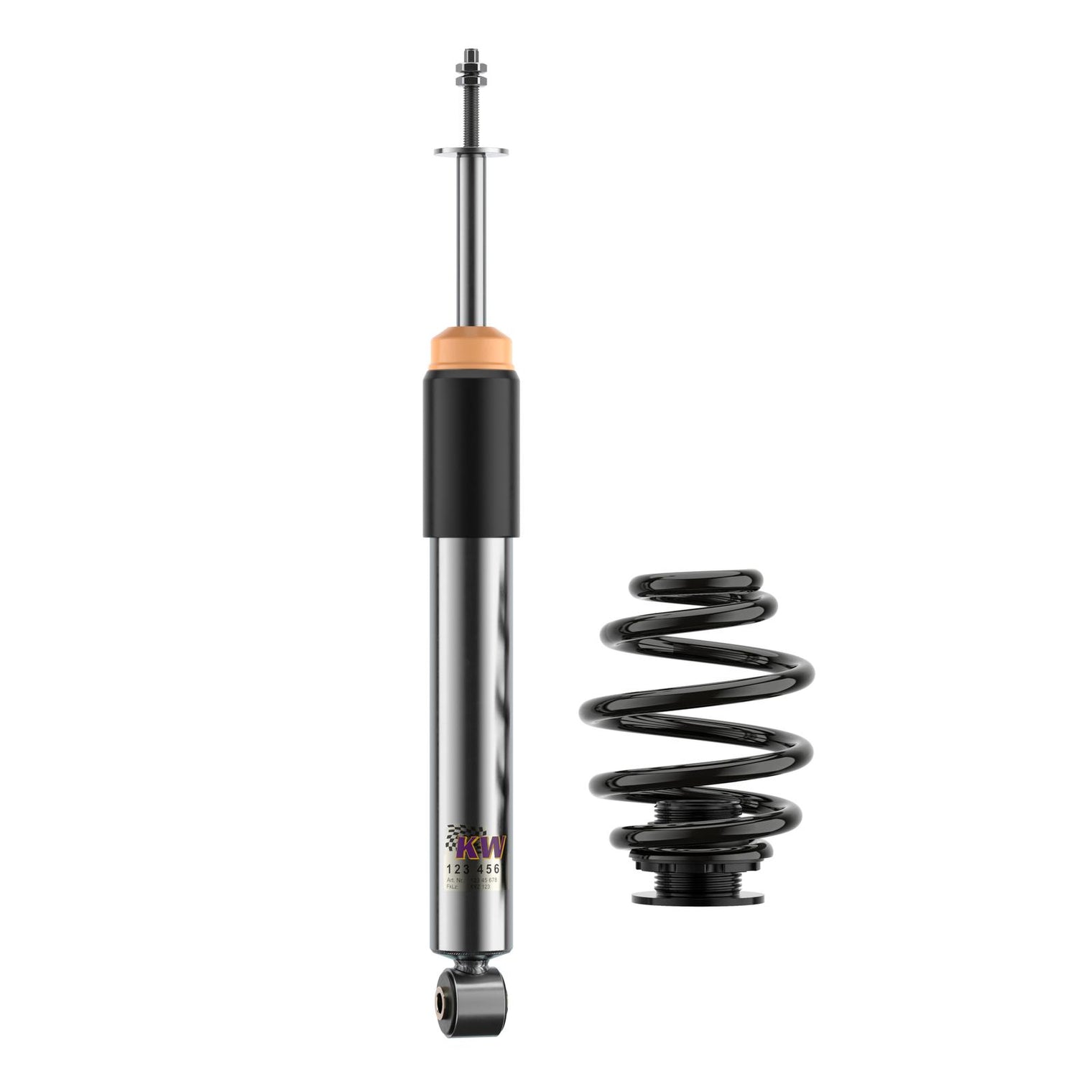

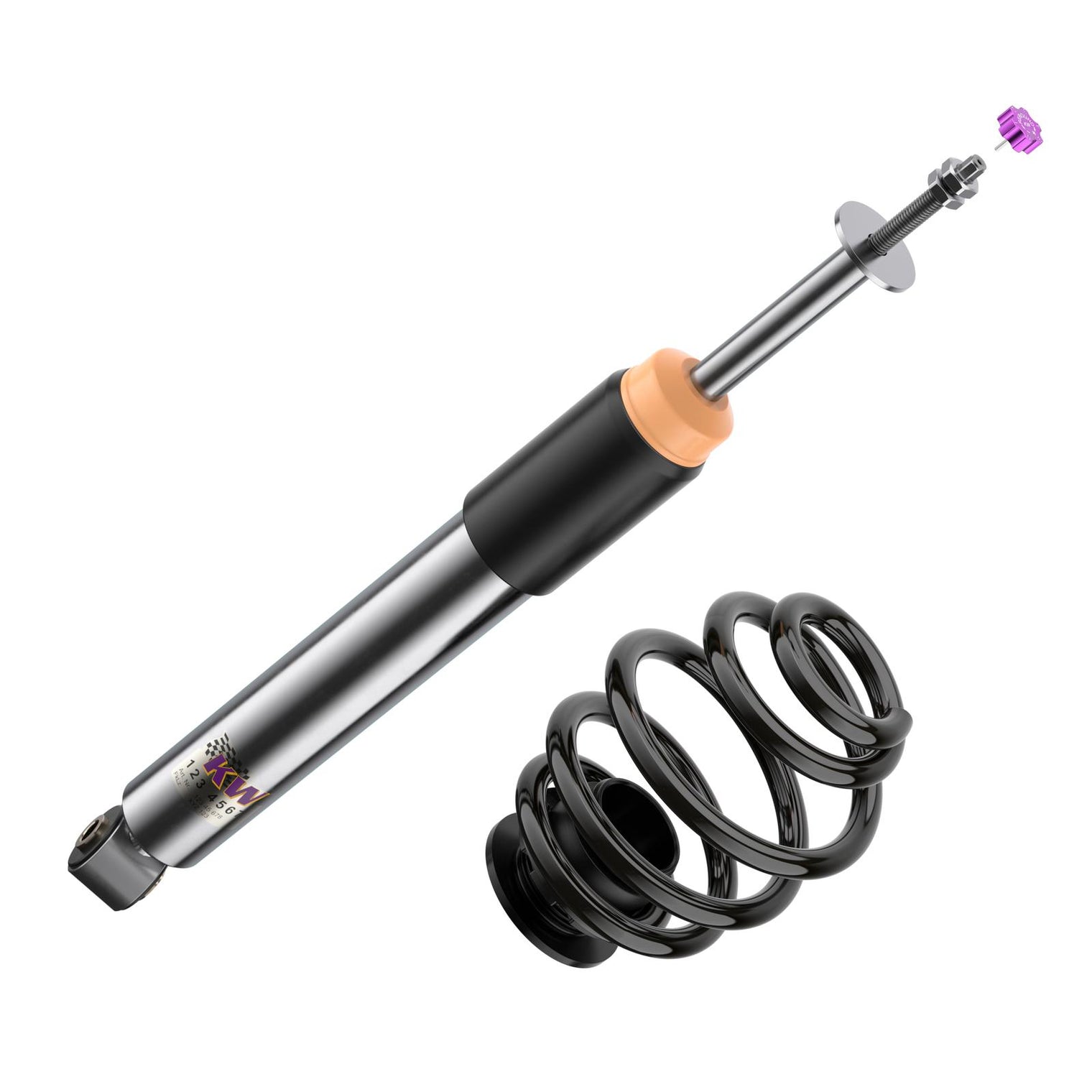

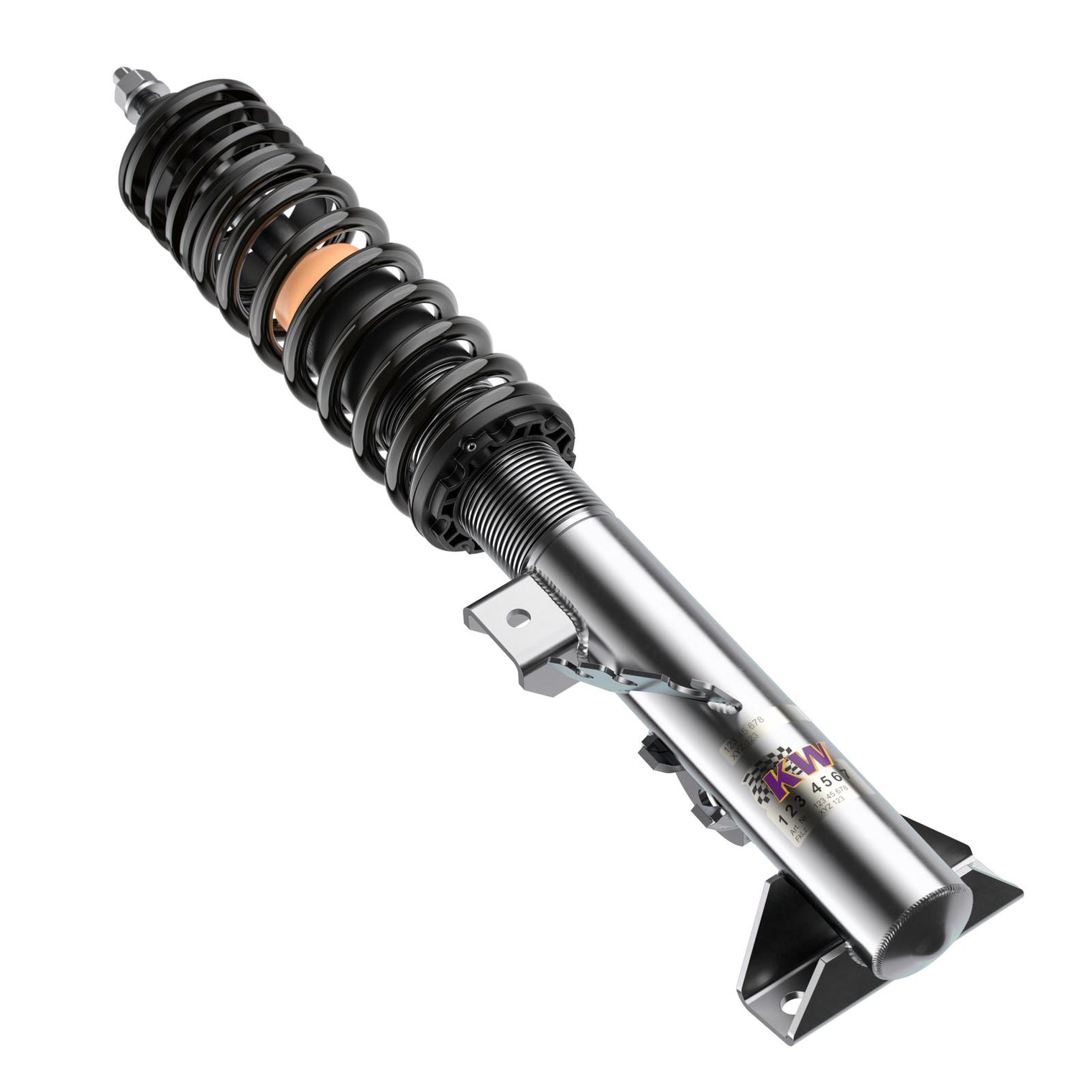

KW Suspensions - V2 RAAB Classic Line Coilover Kit - BMW E36/7 Z3M

For more stability or driving comfort - with adjustable rebound damping. Sporty drivers who want more than just a striking look through stepless lowering within the tested adjustment range will find the ideal suspension solution in the KW V2 coilover suspension in KW's signature "inox-line". In addition to its high-quality workmanship, the use of stainless steel struts, corrosion-resistant components, and impressive durability, the KW V2 stands out with its ability to further customize the damper setup to individual requirements using the 16-click adjustable rebound damping.

More comfort or more sportiness – the choice is yours
As with all KW coilover suspensions, KW engineers develop the vehicle-specific KW damper tuning, valued by car enthusiasts worldwide, through extensive testing cycles on the Nürburgring Nordschleife and in our test center on the KW 7-post driving dynamics test rig. With a KW coilover suspension, you'll experience your car with greater directness and dynamism. With the KW V2, experienced drivers can directly influence handling and comfort through individually adjustable rebound damping. The 16 precise clicks allow you to adjust the KW dampers to be firmer or more comfortable without affecting the compression damping valve.

Depending on the vehicle type, the rebound valves of the KW twin-tube dampers are adjusted at the top of the piston rod using either an integrated adjustment wheel or the included attachable adjustment wheel. By increasing the rebound force via the adjustment wheel, body roll is reduced. This results in improved tracking and greater stability at higher cornering speeds. For example, if you change your vehicle manufacturer's approved wheel/tire combinations to larger rims, the KW V2's adjustable rebound damping allows you to perfectly match your car's handling characteristics to your new alloy wheels.

KW Quality – Your satisfaction is our motivation
At our headquarters in Fichtenberg, KW Variant 2 inox-line coilover suspension kits undergo extensive testing during the production process to meet our high quality standards. Each individual damper and suspension kit is thoroughly inspected. As a German manufacturer, we naturally offer a warranty of up to 5 years on our coilover suspension kits, which exceed the requirements of the original equipment manufacturer (OEM) industry, and our comprehensive suspension program covering over 4,600 applications, when installed by one of our authorized KW dealers.

Finally, under all weather conditions, KW coilover suspension struts are 100% rust-free and have an unlimited lifespan. The stepless lowering mechanism of the KW V2, which uses a dirt-resistant trapezoidal thread and a polyamide threaded ring, is also designed for long-term use. No oxidation occurred on the KW coilover suspension struts during a salt spray test. This ensures that the stepless lowering adjustment remains unaffected even after years of use.

The vehicle-specific KW damper tuning, highly regarded by car enthusiasts worldwide, can be further fine-tuned with the KW V2. The rebound damping adjustment allows you to compensate for changes in driving dynamics resulting from switching to a new wheel set or fitting winter tires. Depending on your preferences, the damper characteristics of the weather-resistant KW V2 coilover suspension can be set to a firmer or more comfortable ride. This suspension is ideal for all sporty drivers who want more than just stepless lowering for enhanced driving pleasure.

TVR-A rebound damping
The two-stage patented "TVR-A" technology enables the low volume flows to flow through an adjustable conical low-speed bypass at slow damper speeds and, at higher piston speeds, the main rebound valve opens for the large volume flows. This results in a significant increase in driving comfort without affecting the high speed in the safety-relevant area. 16 exact clicks are available for the individual setting, so that a decision can be made between more comfort or more body control.

Stepless lowering
The KW V2 Comfort coilovers, made using "inox-line" stainless steel technology, enables a vehicle-specific lowering within the tested adjustment range of 10 to 40 mm. Built with paramount attention to detail and using only the highest quality components, the stainless steel KW V2 Comfort coilover struts are 100 percent corrosion-resistant and have an unlimited lifespan. The dirt resistant trapezoid shaped threads and the adjustable composite spring seat mean that the ability to adjust the ride height of the vehicle will not be affected even after many years of driving allowing you to emphasize the sportiness of your vehicle visually.

The benchmark for coilovers
As with all KW coilovers our engineers develop vehicle specific damper settings which undergo comprehensive testing on the Nürburgring Nordschleife and in our KW 7-post Driving Dynamic Test Center. With a KW coilover kit the driving experience is more dynamic and direct. With the rebound adjustability on our KW V2 Comfort coilovers you can have more direct influence on the handling or comfort of the car. With 16 precise clicks you can adjust the KW dampers (firmer or more comfortable) without affecting the the compression damping fine tuned by our engineers.

Features

• Coilovers adaptable to your personal preference
• Strengthen your control by adding more rebound or tone it down for more compliance with the road
• Twin Valve Rebound Adjustable (TVR-A)
• Front Lowering Range: 1.5" to 2.9"

• Rear Lowering Range: 1.2" to 2.3"

• Adjustable rebound dampening with 16 exact clicks
• Seamless Ride Height Adjustability
• 7-Post Driving Dynamics Approved
• Composite Spring Seat (Stainless steel insert for strength, Encapsulated by a friction-optimized polyamide composite for longevity)
• Hardened Chromoly Piston Rod
• Dynamic elastomer bump stop with integrated dust protection
• Inox-Line stainless steel construction ensures a rust-free lifetime use
• Friction-Optimized Trapezoidal Thread (Less sensitive to dirt, requiring less force to adjust)
• Backed by KW's Limited LIFETIME WARRANTY

KW Suspensions GmbH was founded in 1992 in Murrhardt Germany and has grown to become a leading suspension tuner for European and Japanese cars. KW suspension is developed thoroughly by KW's engineers to have an extremely long service life and create a balance between great handling and a comfortable ride quality. KW has equipped winning race teams for over a decade, and is a supplier to AMG as well as BMW in the M3 GTS. KW's facility is one of only 15 facilities worldwide to be equipped with a 7 post suspension test rig, giving regular M3 enthusiasts access to Formula 1 technology.

Vehicles Supported
BMW E36/7 Z3M Coupe/Roadster
