AIM - Memory Module Expansion

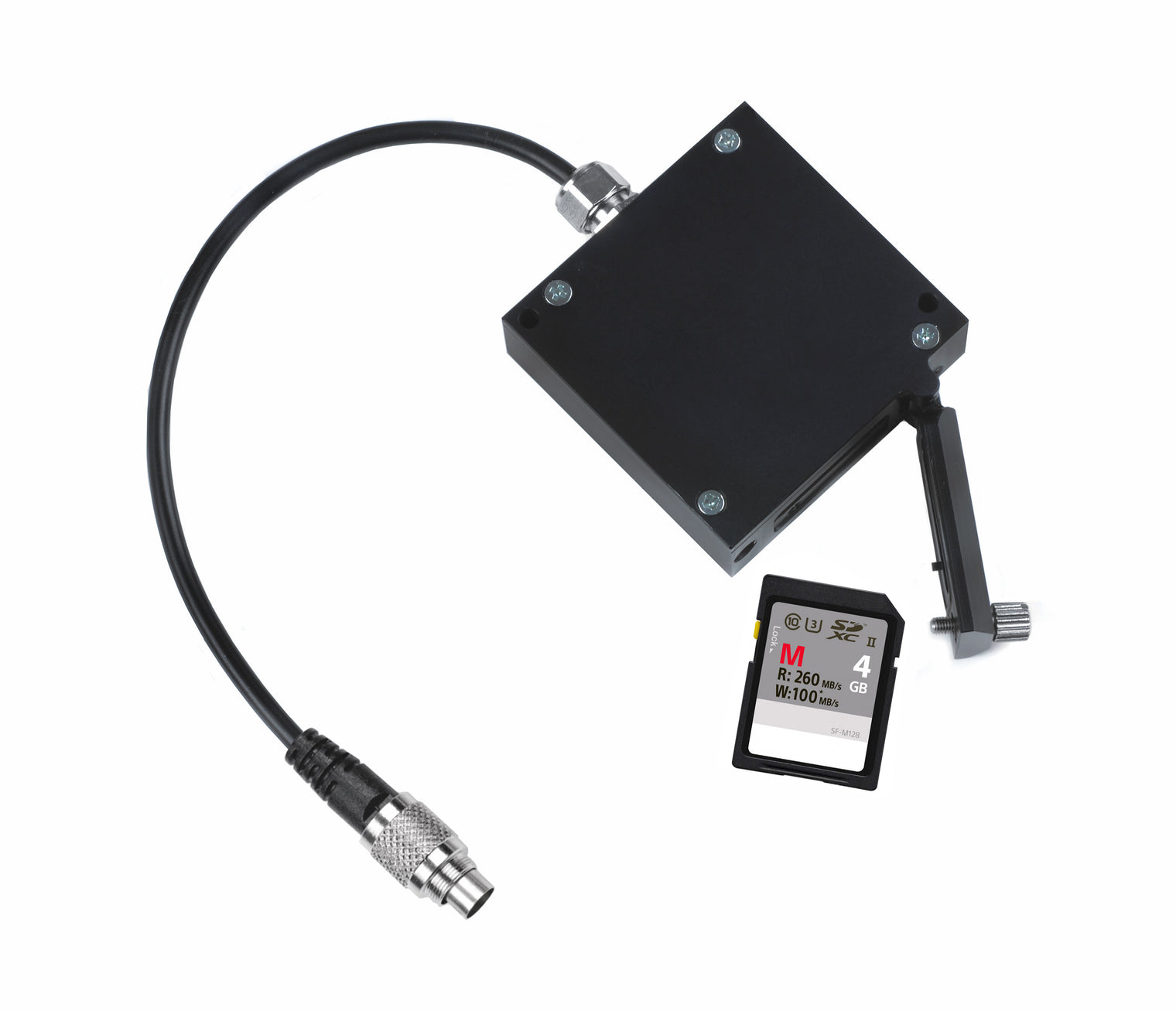

Memory Module is the AiM mass data storage expansion w/ SD card holder for car/bike installations. It is connected to AiM loggers via a 40cm cable and communicates using AiM proprietary CAN bus.

Its management is really very simple: just connect the Module to your device and the data will be saved simultaneously both in the logger and on the SD card*. No configuration is needed.
The SD card* can be removed and replaced even during pit stops, while the car engine is still ON, making it extremely fast to get the data during endurance races or long tests, when the time at the paddock is really limited. When the session is over, all you need to do is moving the SD card (not included) from the Module to your PC and download the data using RaceStudio 3.

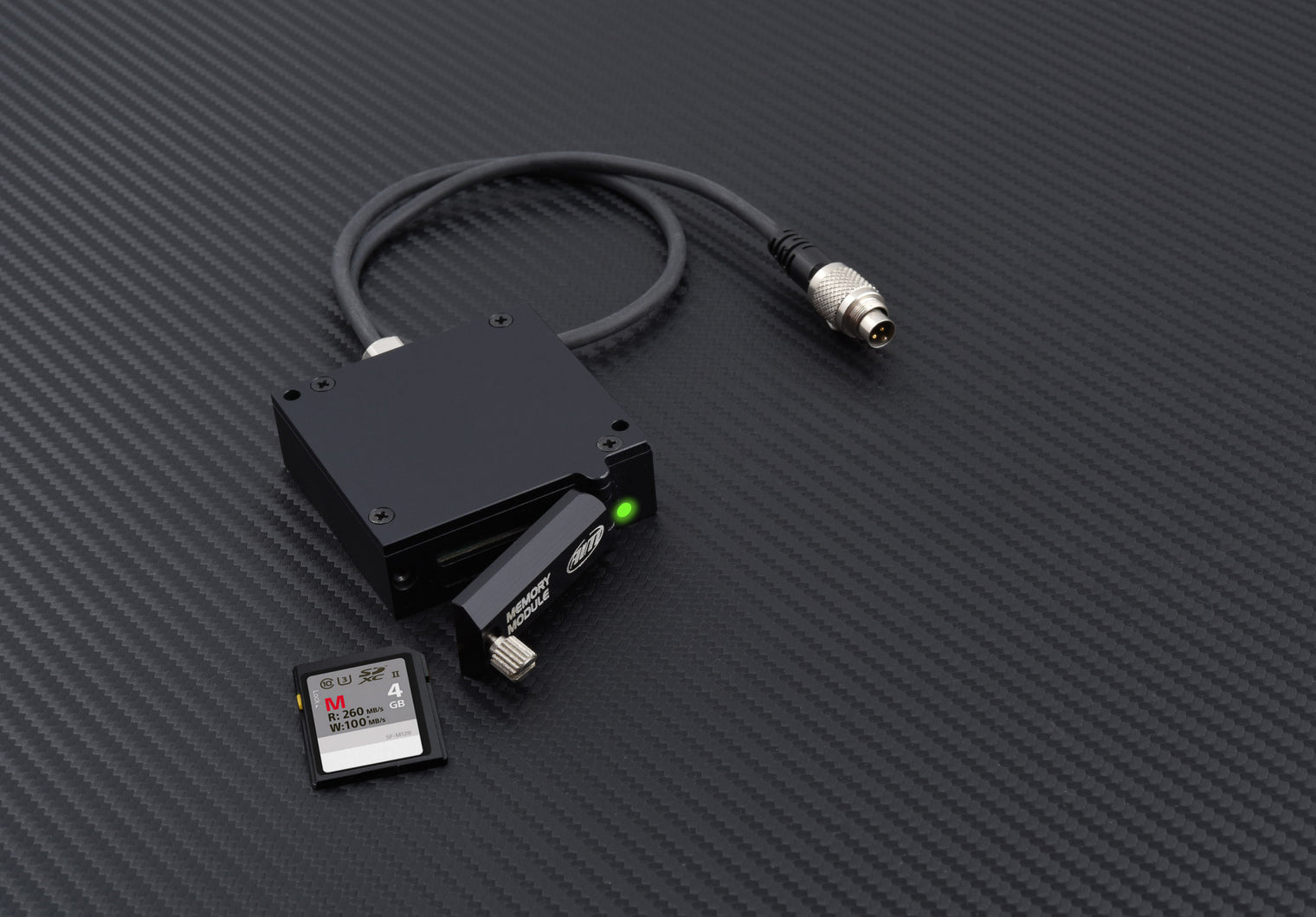

The Module features a front LED showing its recording/fw updating status. The device can support up to 32 GB cards.

AiM Devices Compatibility
The following table shows which AiM dashes/loggers are compatible with Memory Module and from which firmware version.

Memory Module can be connected to all new generation AiM loggers:

• MX, MX 1.2 series and EVO5: connect it to cable labelled “Exp” of 37 pins Deutsch connector harness
• EVO4S: connect it to 5 pins Binder 712 female connector labelled “Exp”
