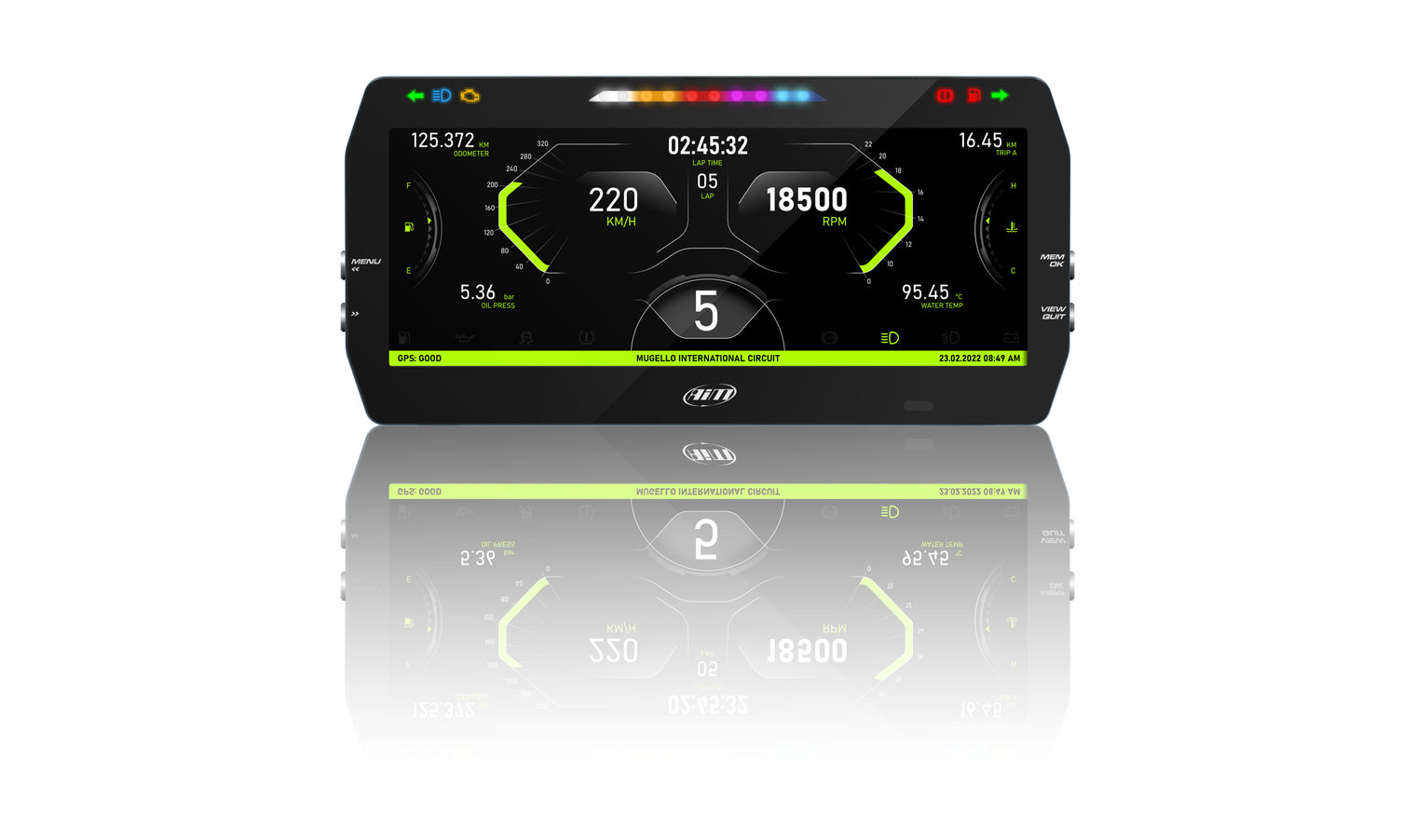

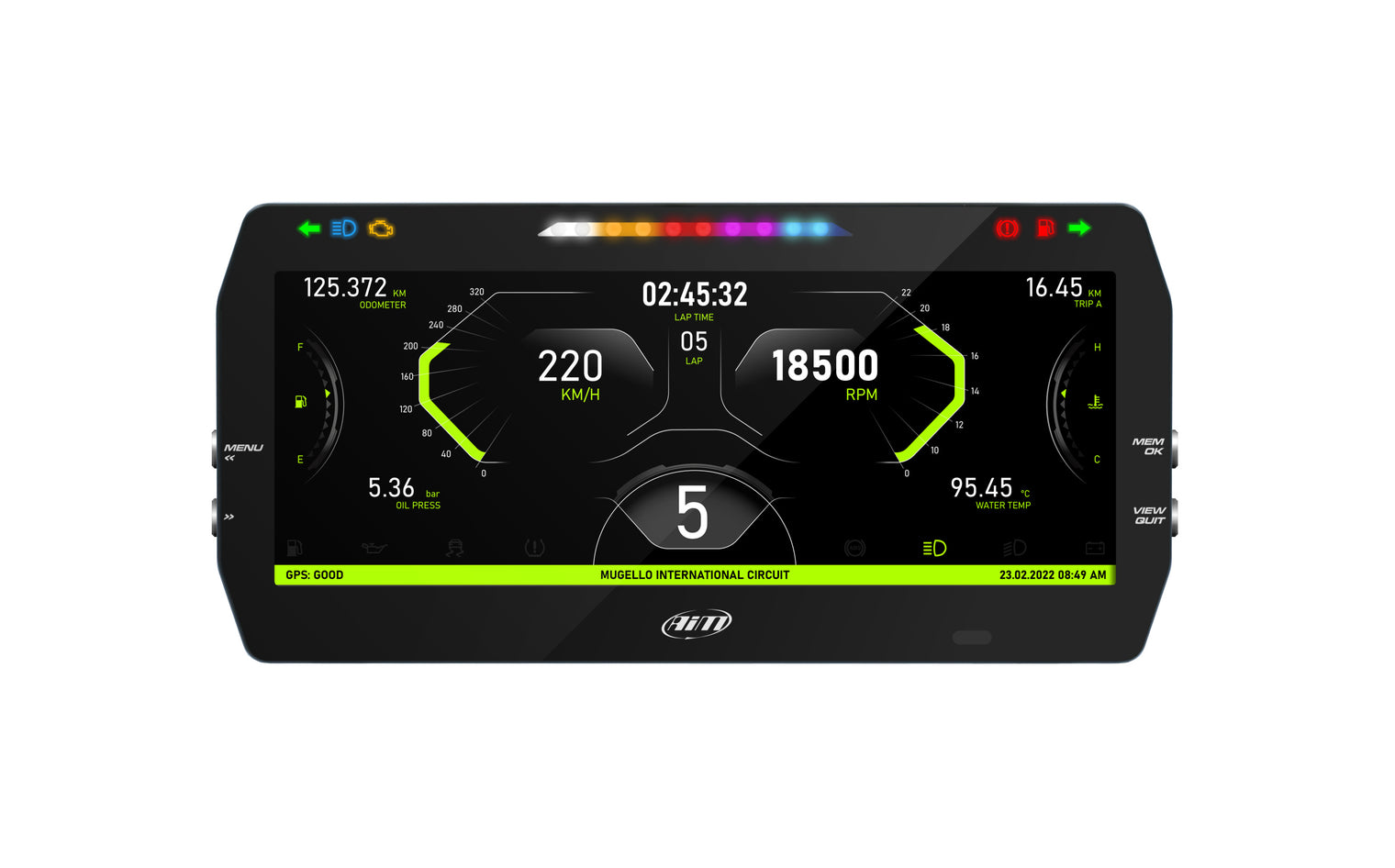

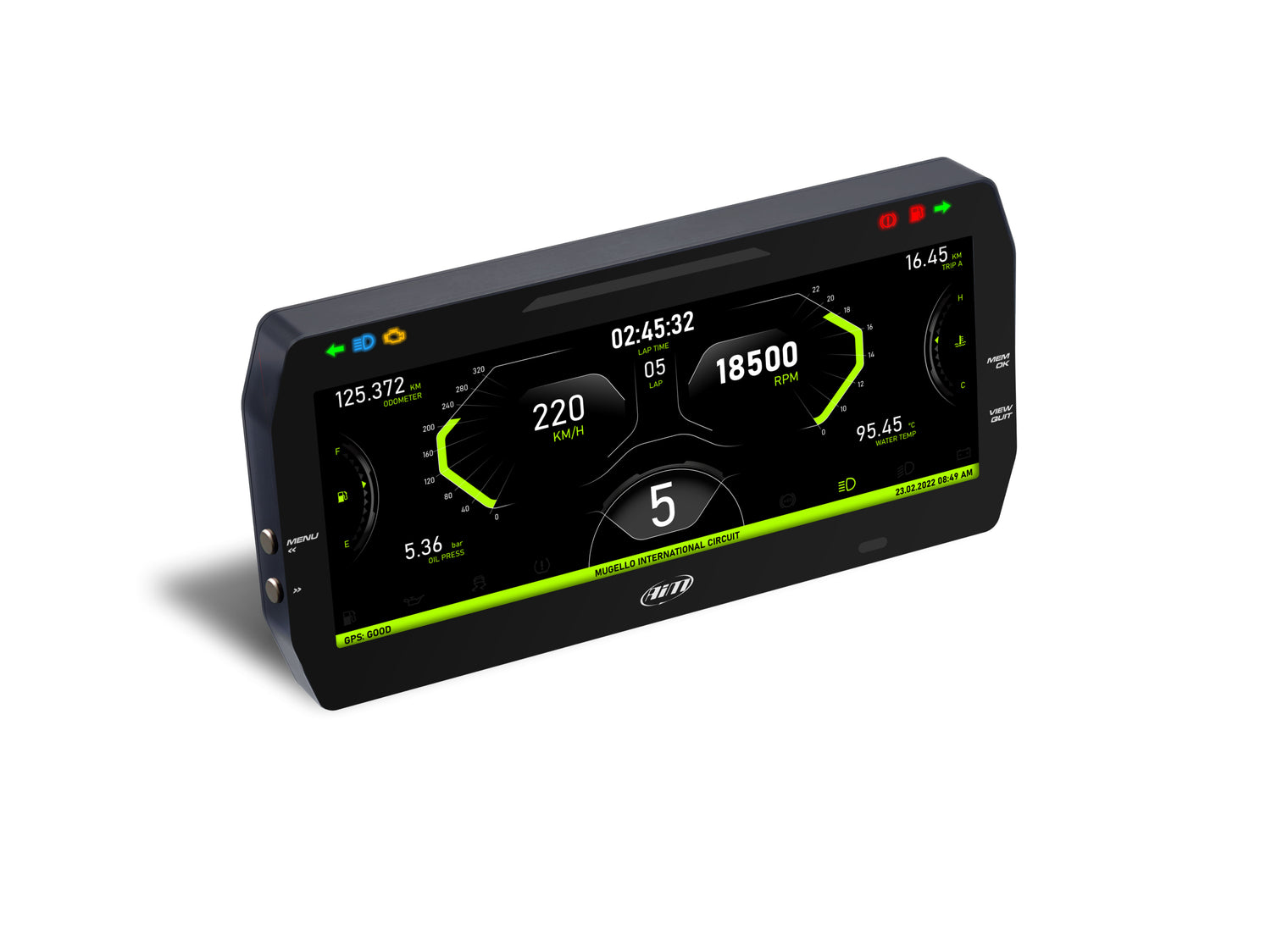

AIM - MXT 1.3 TFT Strada Dash (10.0") ^Sale

MXT 1.3 Strada belongs to the MX Family, a complete range of TFT Dash & Loggers designed for Motorsport from AiM.

A Wide Range of Data Sources
AiM dashes and dash loggers are designed to acquire and display data coming from your ECU, as well as from the GPS09c included in the kit (dash loggers version only), analog/digital inputs and predefined math channels. Performance and data acquired can also be increased adding up to eight expansion modules.

The table here below shows the difference among the loggers.

MXT 1.3 TFT Dash Logger (10.0") Features

• 10.0" TFT Display, 800x480 Resolution
• ECU connection (CAN, RS232 and K-Line)
• 1 speed input
• 1 RPM input
• 8 analog/digital inputs
• 2 analog video camera inputs
• Up to 8 configurable display pages
• Huge track database to automatically selects the track you are racing on
• From 5 to 8 alarm LEDs
• 10 RGB LEDs that you may configure to clearly show if you are improving or not

What about ECU connection?
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge  database includes more than 1500 ECU protocols.

Is MX Strada Series an expandable device?
Yes. MX Strada series can be connected to various AiM expansions like GPS Module, Channel Expansion, TC Hub (necessary to connect thermocouple sensors) and LCU-One CAN to maximize your engine performances and to AiM SmartyCam to see your track performances on your PC with all the values you need in overlay

CAN, K-Line & RS232 ECU Connection
MX Series manages CAN, K-Line and RS232 ECU communication lines and its huge database includes more than 1,500 ECU protocols.

Tracks
More than 4,000 tracks in database. Thanks to Track Manager function of RaceStudio 3, tracks can be created, deleted and modified, transmitted and received to/from MX Series.

Lap Time Manager
MX systems calculate lap times and record data, track name and time of the test making your life easier when you analyze your data. In case the track is not in the database, no problem: MX dash loggers automatically understand the characteristics of the track and give the lap time anyway.

Position & Speed on Track
For Strada and Strada Light versions the optional GPS09c allows to sample lap times. Strada Logger switches Strada and Strada Light device into a complete MX dash logger, giving the chance to record your session.

Data Recall
At the end of the test sampled data can be recalled. MX dashes and dash loggers will show you the latest test with date and place. Histogram test summary will show all laps of the  session moving the cursor so to immediately analyze your performance.

Expansions
MX Series can be connected to a lot of AiM expansions like GPS09c, Channel Expansion, TC Hub and LCU-One CAN to get the best from your engine and - with AiM SmartyCam 3 family - to see your track performances on your PC with all the values you need in overlay. Furthermore, the Strada Logger transforms the Strada and Strada Light device in a complete MX dash logger, giving the chance to record your session.

Rear Camera
You may connect up to two additional optional rear cameras to the dedicated input in order to show a reverse mirror image directly on the logger display.

Custom Dashboard
You can define all the custom pages you wish, choosing among a wide library of page styles, defining which data to be shown, their end of scale and measure units. You can show the data via bargraph, ringbar, icons, and much more.

Flexible Alarms, Shift Light Array & Icons Manager
Configurable RGB alarm LEDs: you choose the conditions, you choose the colors. Select a solid alarm or a flashing one and the flashing frequency; choose to have an accompanying text message and set the alarm priorities. You can customize the RGB shift light patterns as you like and select the icons you need among a wide list on RaceStudio 3.

RACESTUDIO 3
RaceStudio 3 is the heart of MX series, managing all your activities related to configuration.  With RaceStudio 3 you can create, modify, delete, import and export configurations of:

• All channels
• ECU drivers
• Math channels
• Display pages
• Digital outputs
• Alarms
• Shift lights
• Expansions

In RaceStudio 3 you can also analyze all data recorded by MX dash loggers (or Strada equipped with Strada Logger) and downloaded to your PC. Graphs, histograms and tables will help you studying your performance, providing an objective support to avoid mistakes and improve your performance as well as tuning the engine and adjust the setup of your vehicle. You will also be able to manage the map of all your racing tracks and compare two laps watching the video recorded by SmartyCam 3 cameras.
