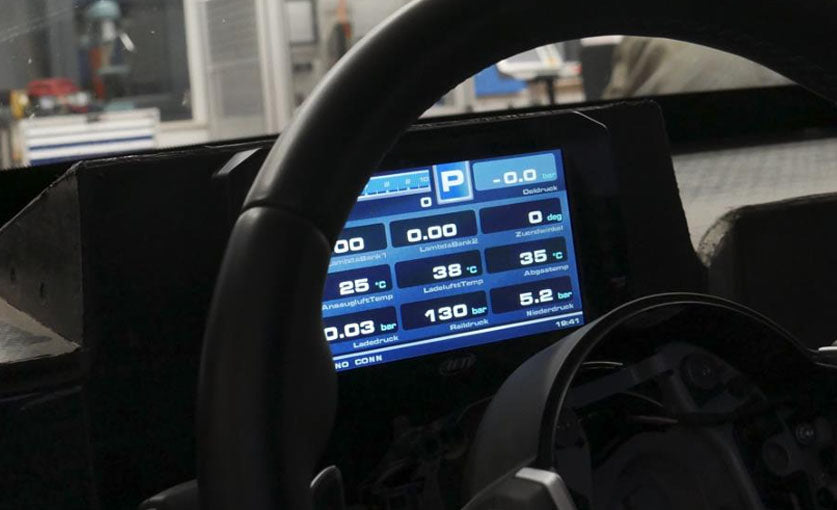

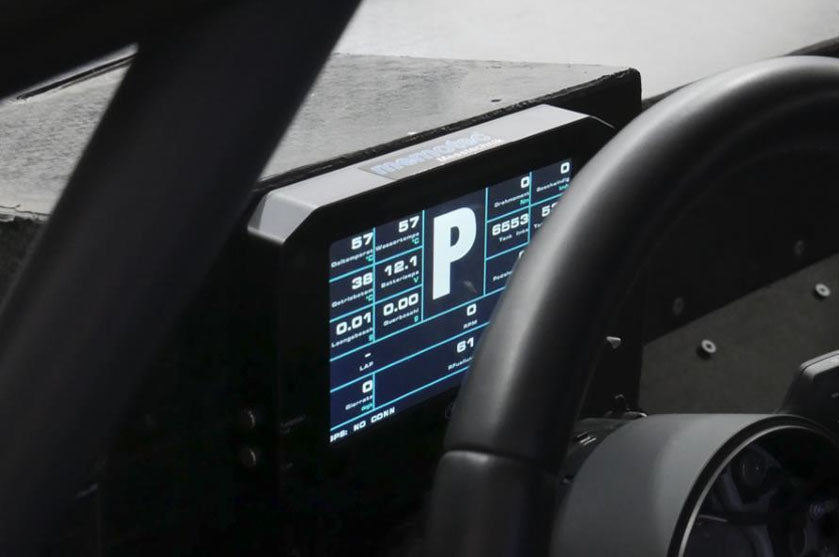

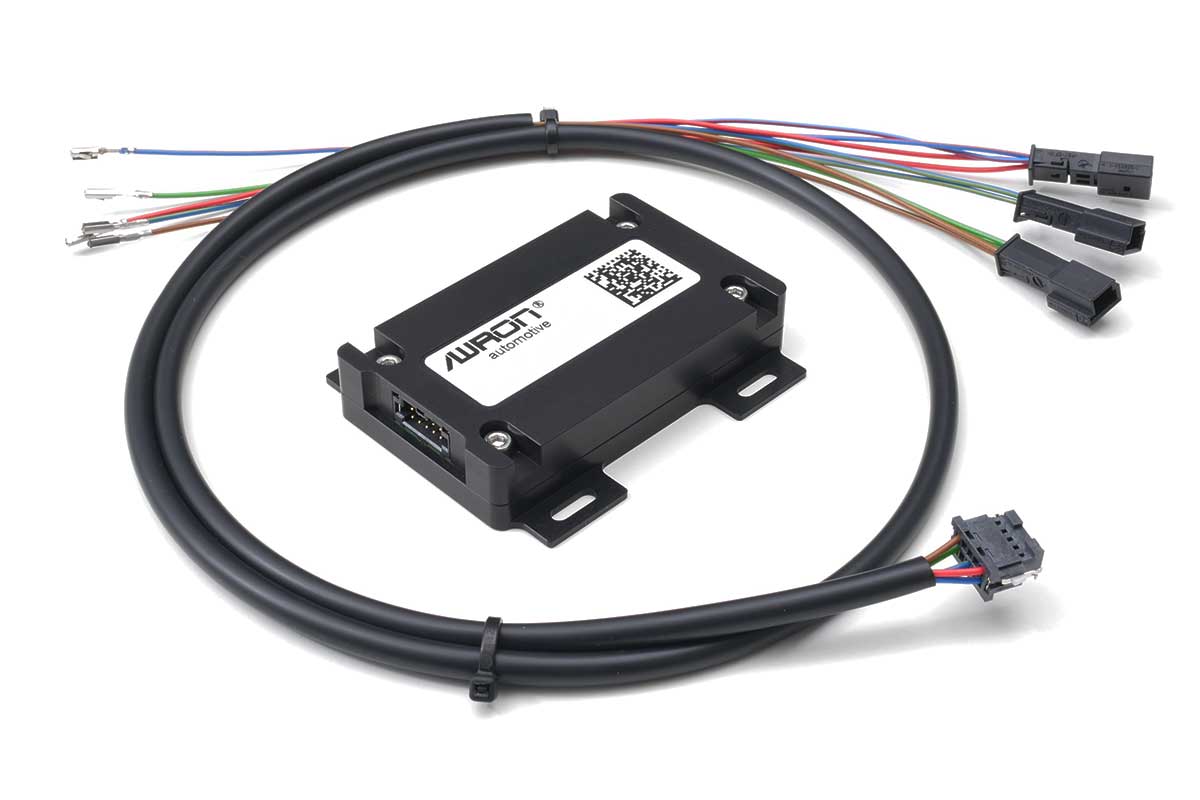

AWRON CAN Bus Clair Module integrates into the CAN bus and translates factory CAN data to a AiM race display or CAN logger. The scope of delivery also includes an AIM configuration file and a CANdb in vector format.
AiM display available separately.
| Measure
|
LED Trigger Status
|
RPM
|
DSC status |
| Torque |
Traction Status
|
Vehicle Speed
|
Check Engine Status
|
Longitudinal Acceleration
|
Battery Control Charge Status
|
Lateral Acceleration
|
Sport Mode Status
|
Yaw Rate
|
Turn Signal Status
|
Throttle Position
|
Oil Pressure Status
|
Steering Angle
|
MIL Status
|
Brake Light Switch
|
|
Battery Voltage
|
|
Power
|
|
Gear
|
|
| Tank capacity (resistance left) |
|
| Tank capacity (resistance right) |
|
| Lambda Bank 1 |
|
| Lambda Bank 2 |
|
Intake Air Temperature (IAT)
|
|
Charge Air Temperature
|
|
Ignition Angle
|
|
Relative Feeling
|
|
Oil Pressure
|
|
Boost Pressure
|
|
Fuel Pressure
|
|
Exhaust Gas Temperature (from model)
|
|
Coolant Temperature
|
|
Oil Temperature
|
|
Transmission Temperature
|
|
Vehicles Supported
BMW F87 M2 Competition
BMW F8X M3/M4, including Competition
