Build the ultimate tune for your S58 powered vehicle and go from stock to full race calibration, and everywhere in between, with a map switch in the provided mobile app. bootmod3 calibrates the factory vehicle modules over the OBD port in just 3 minutes, switching among maps in seconds, in the convenience of your driveway or anywhere internet access is available.
Our latest development includes the addition of the bootmod3 CustomROM features that add advanced end user and tuning features such as:
Map Switching: On-The-Fly Map Switching using steering wheel cruise control buttons. Flash the vehicle once and have access to 4 switchable maps on the steering wheel changing the calibration entirely from one map slot to the next. Its like getting 4 tunes for the price of one!
Flex Fuel Tuning: Tune for any Ethanol blend by having a Flex Fuel sensor report Ethanol % to the engine control unit (DME) and have it manage the tune from regular petrol (0% Ethanol) to 100%, without re-flashing
AntiLag: Build boost while stationary or rolling by using steering wheel cruise button press and the Accelerator pedal allowing for insta-boost when roll racing or launching

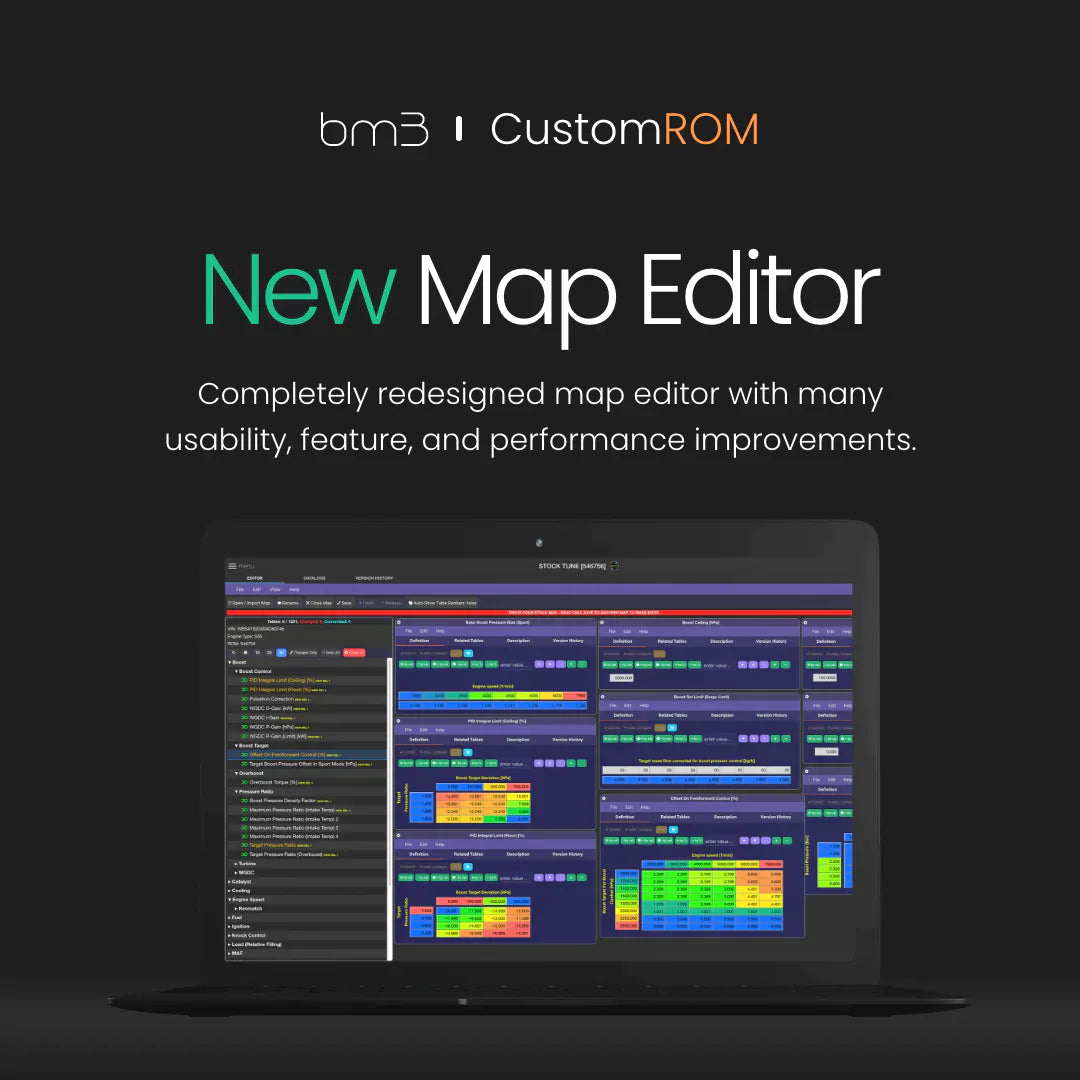

New Map Editor: advanced tuning editor with close to 5000 tuning tables available

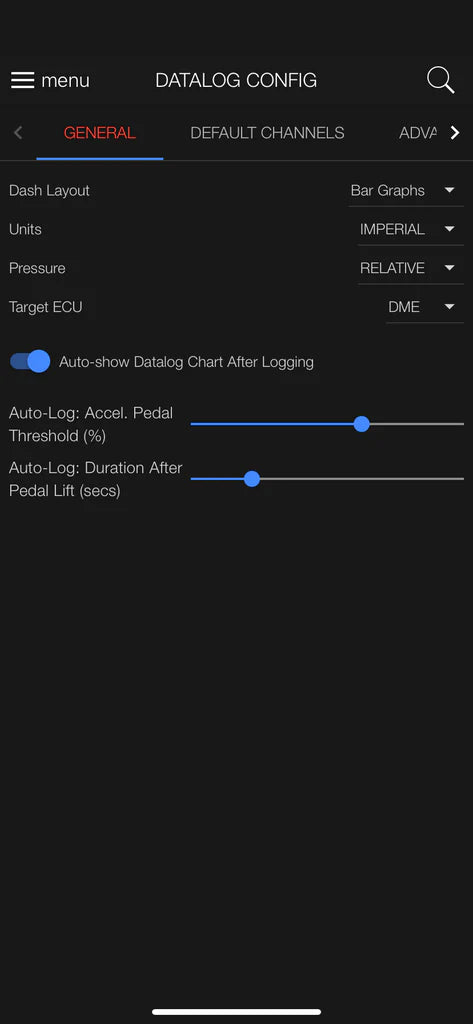

Datalogging: Datalog over 80 advanced (RAM) channels and hundreds of others available at highest throughput of any tool available on the market today
Ethanol In-Dash Indicator: software changes applied to the DME to allow checking of your Ethanol content as reported by the Flex Fuel Sensor in the vehicle's dash on the RPM gauge (e.g. 2000rpm = 20% ethanol, 5500rpm = 55% ethanol)

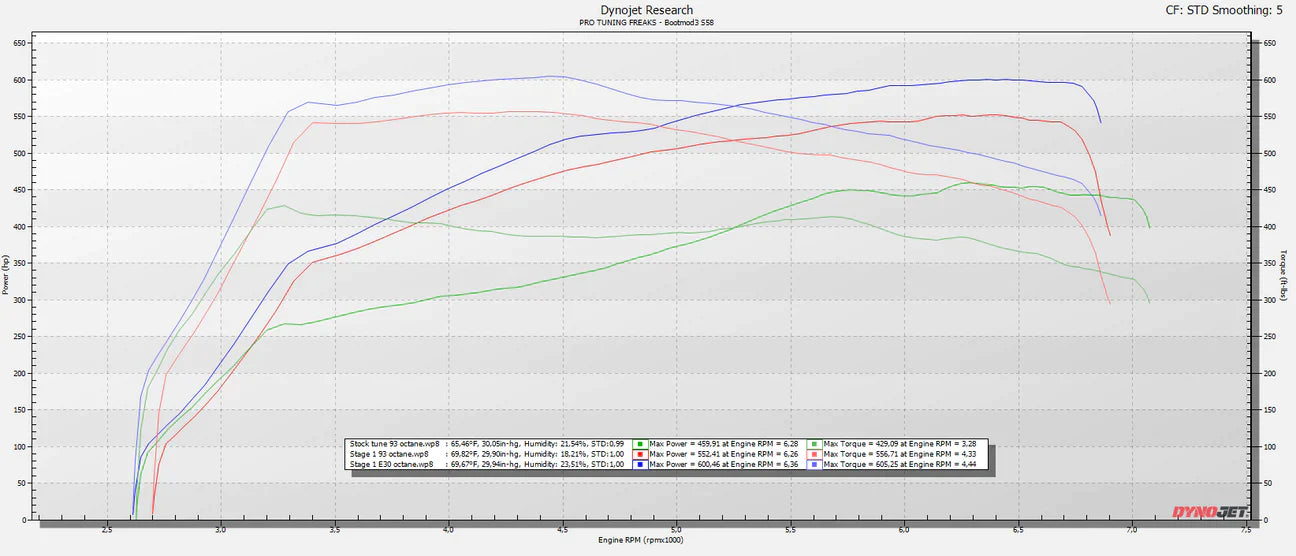

Stage
Fuel
HP increase
TQ increase
Stage 1
ACN91
~11%
~25%
Stage 1
91 AKI
~17%
~28%
Stage 1
93 AKI
~21%
~31%
Stage 1
E30
~31%
~41%
Stage 2
ACN91
~13%
~28%
Stage 2
91 AKI
~20%
~30%
Stage 2
93 AKI
~23%
~34%
Stage 2
E30
~33%
~44%
Stage 2
Race
~33%
~44%
ACN91 maps are for vehicles that fill up with 91 octane that in some places around the Globe can be of questionable quality and not up to 91 (95 RON) standards. Lower than 95 RON (US 91 octane) cannot be used.
Power gains depending on variables such as engine health, temperature, fuel quality and supporting mods. Stage 2 AGG (Aggressive Burble) versions of maps also available.
Bootmod3 app and cloud services offer many unique features not found in any other flash tune including and currently available:

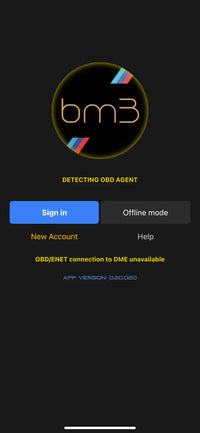

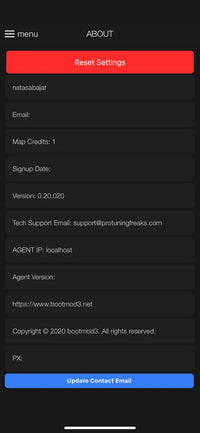

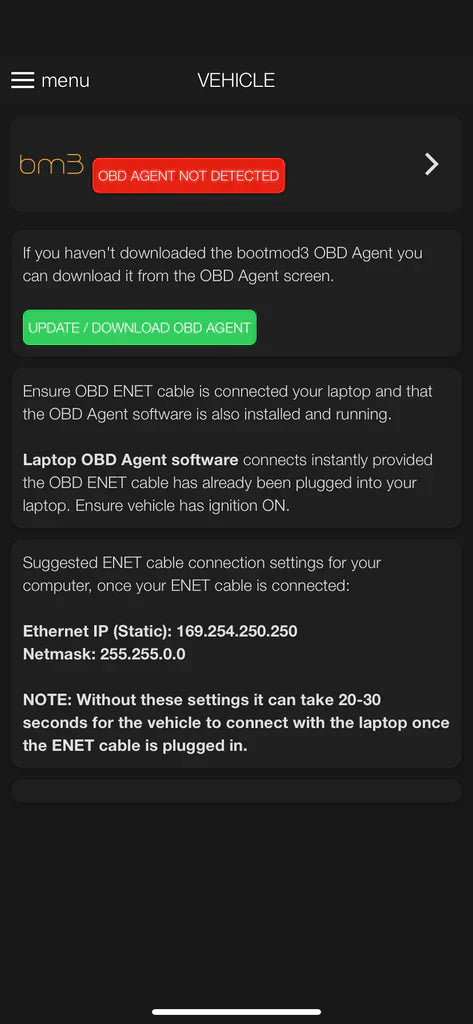

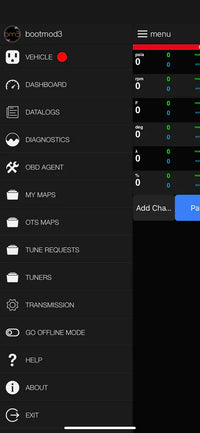

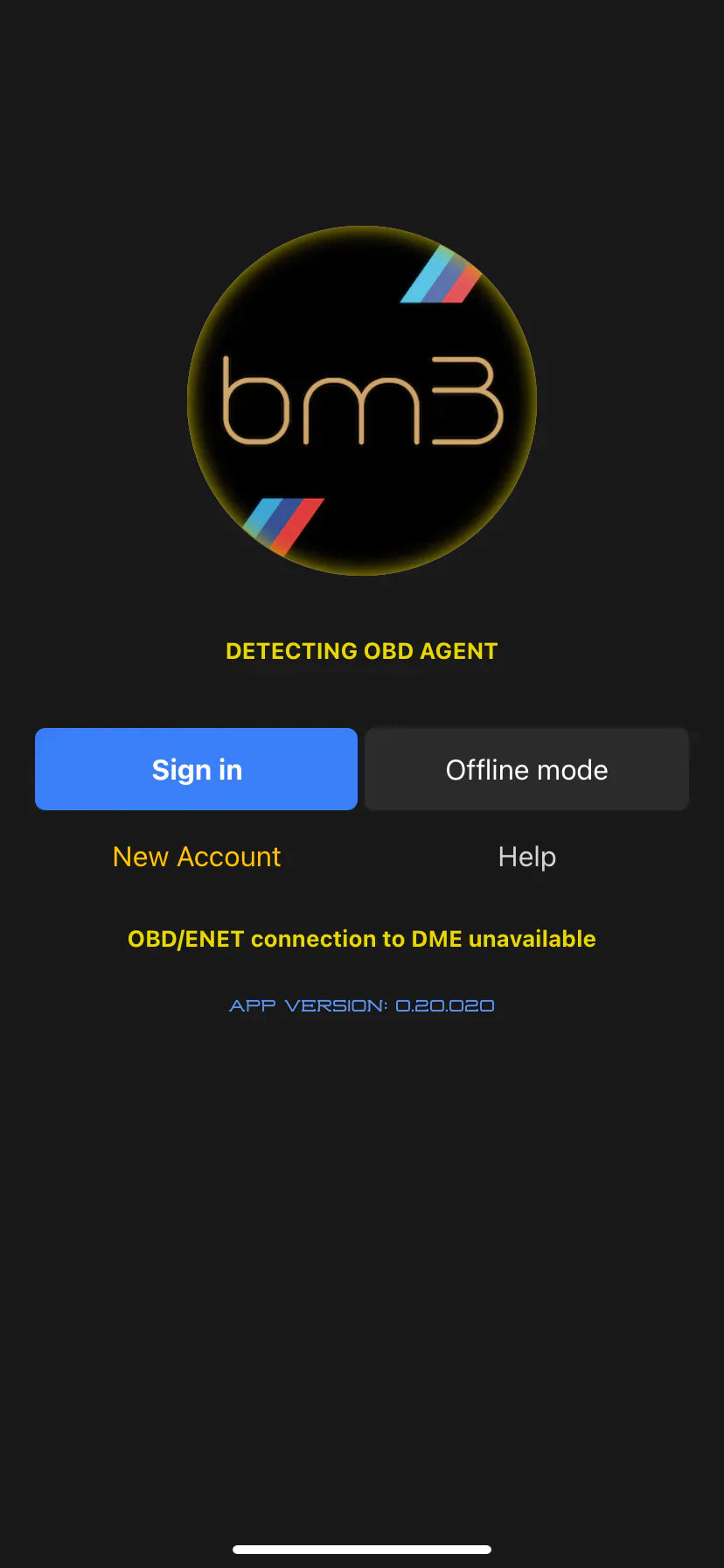

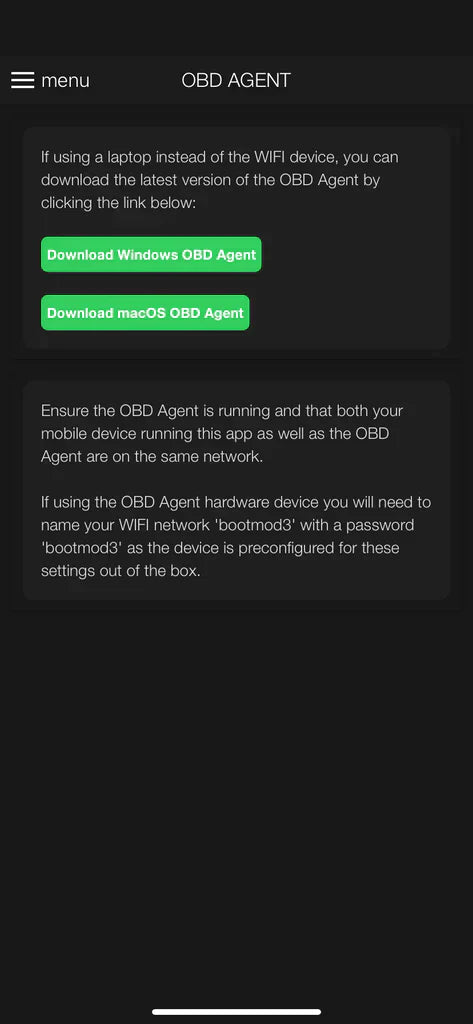

Mobile app (iOS and Android) and Web, including Windows and macOS support

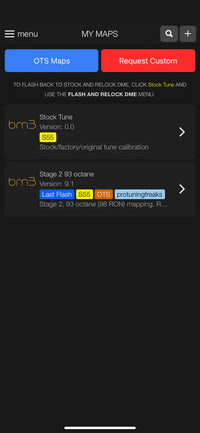

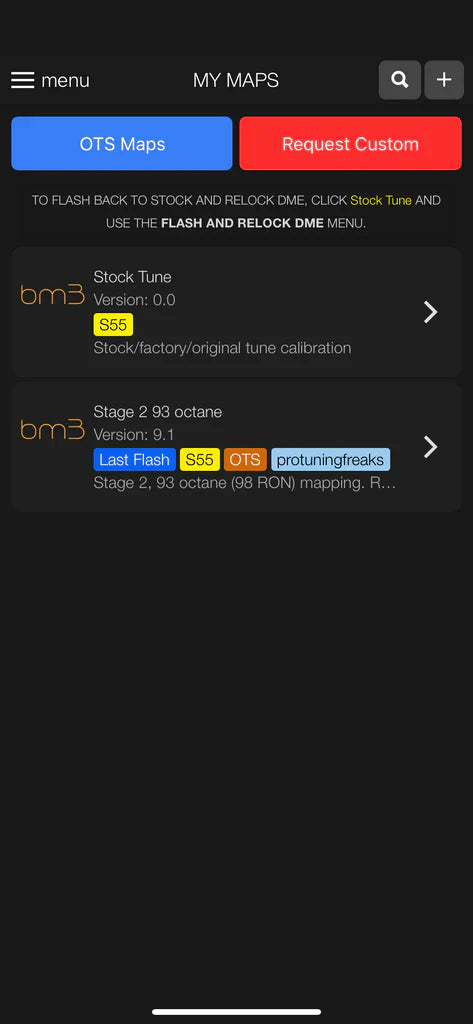

One OTS map/tune included with the purchase and any other maps labeled as "FREE"

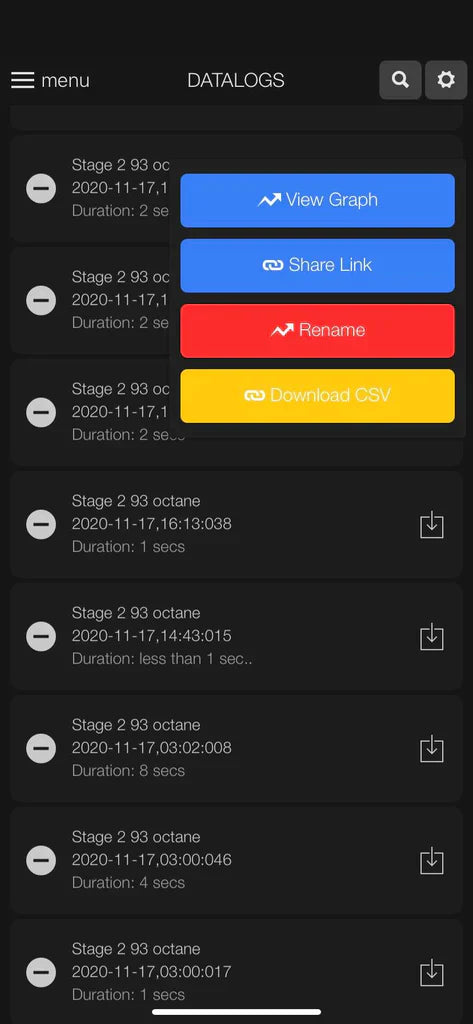

Datalogging hundreds of diagnostic channels, up to 80+ channels concurrently with the highest throughput and sample rates available
Datalog sharing and charting without a need to upload to 3rd party websites or apps using the mobile app or web browser
Ability to log any internal RAM variable values with a number of preset ones available
Cloud-based storage for map data and datalogs
Ability to log any internal RAM variable values with a number of preset ones available

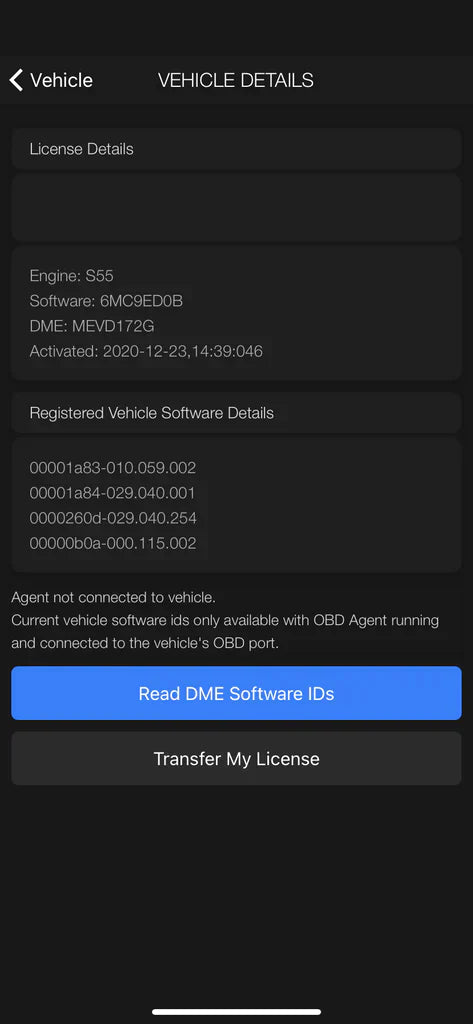

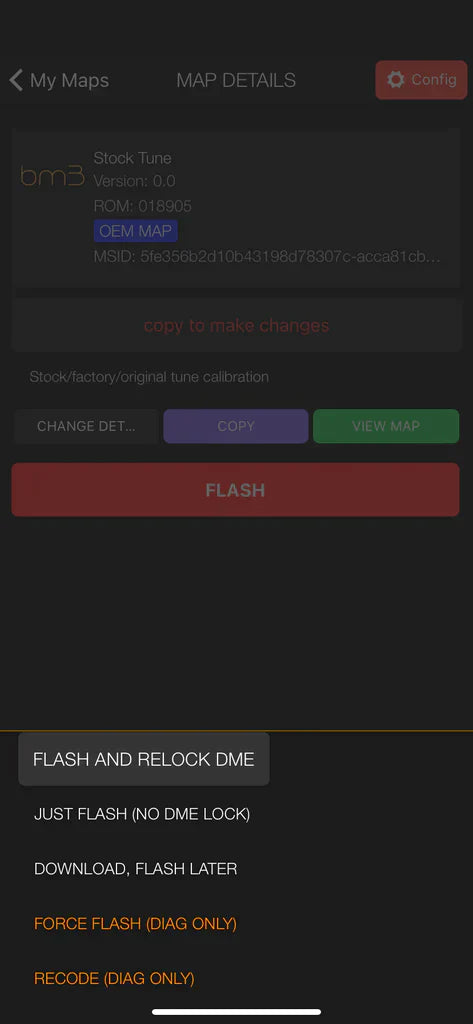

Reverting back to stock performance map and re-locking the DME to stock programming

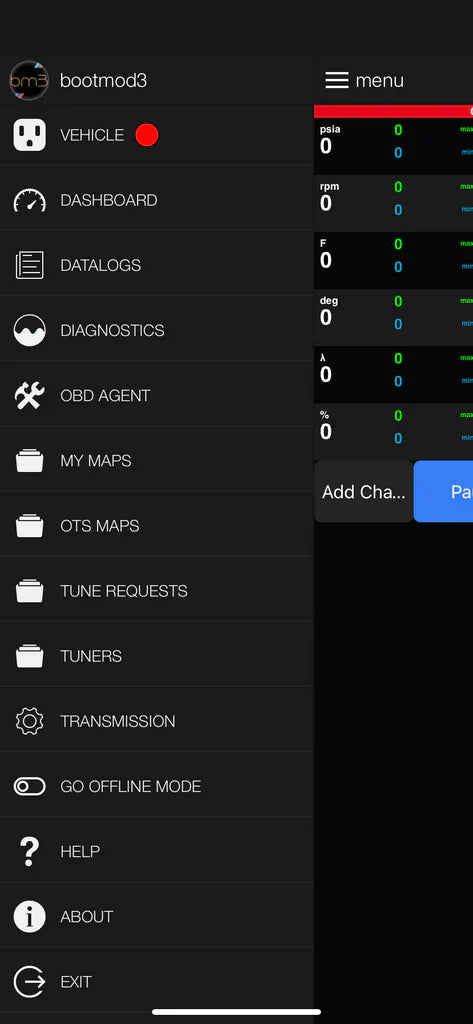

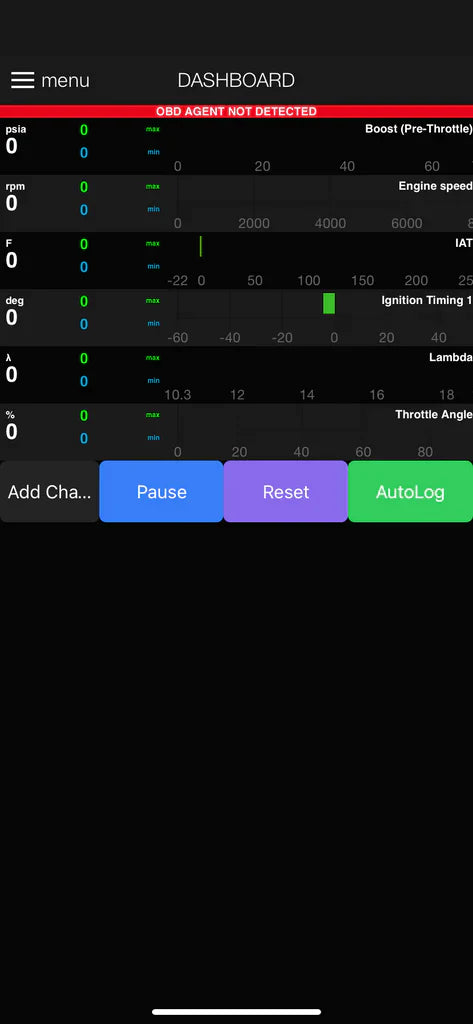

Live Dash - real-time vehicle parameter monitoring via in-app gauges

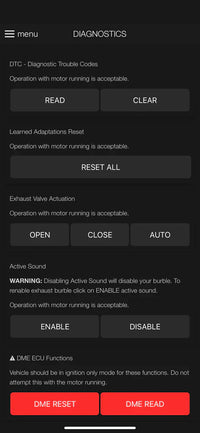

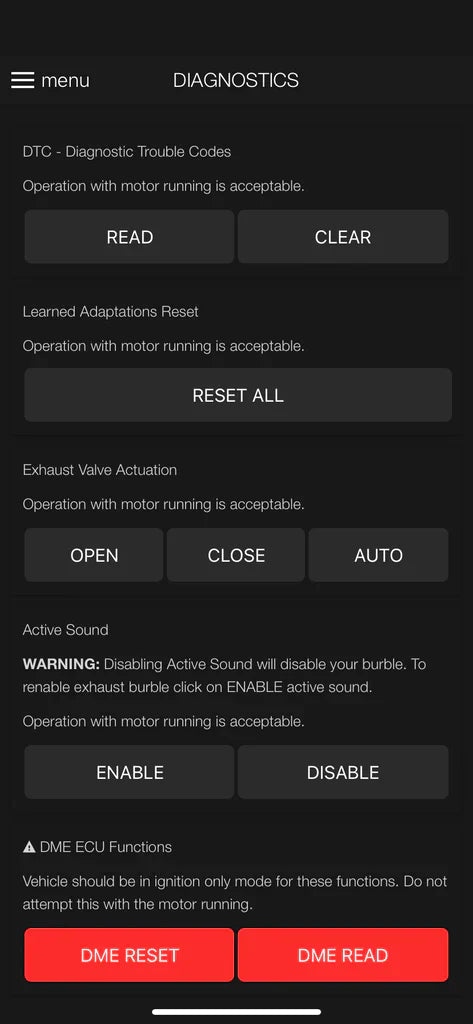

Diagnostics
Read and clear trouble codes in all vehicle modules
Optional Off the shelf (OTS) tunes for 91/93/Race gas/E85 octane

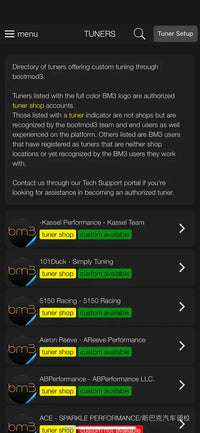

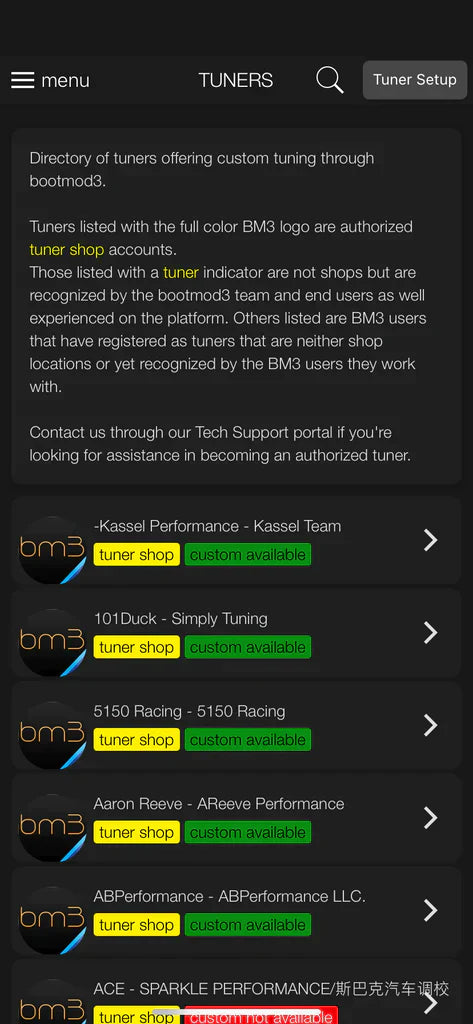

Optional Custom tuning available through tuners in the bootmod3 Tuner Directory. Bootmod3 contains a full map editor so you can tune your car yourself or with your local tuner of choice as well.
Some of the OTS and possible aftermarket turbo upgrade custom map features provided by the bootmod3 platform:

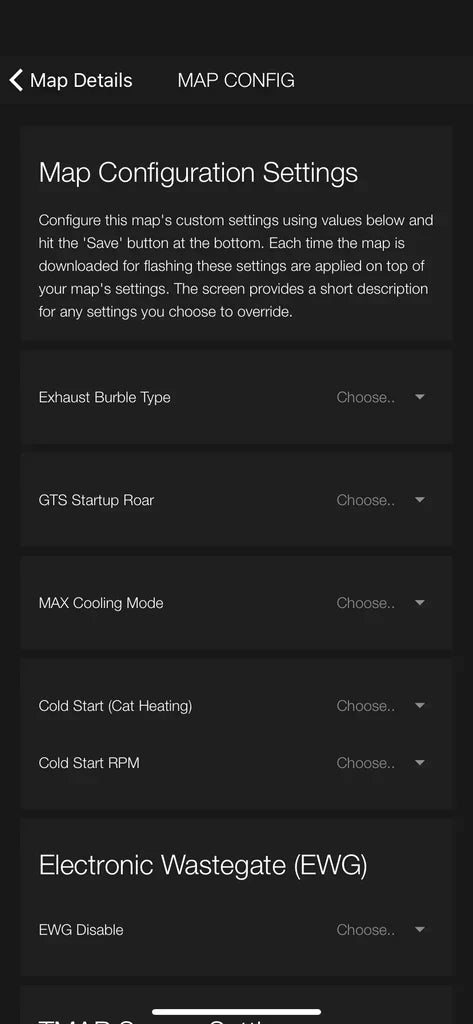

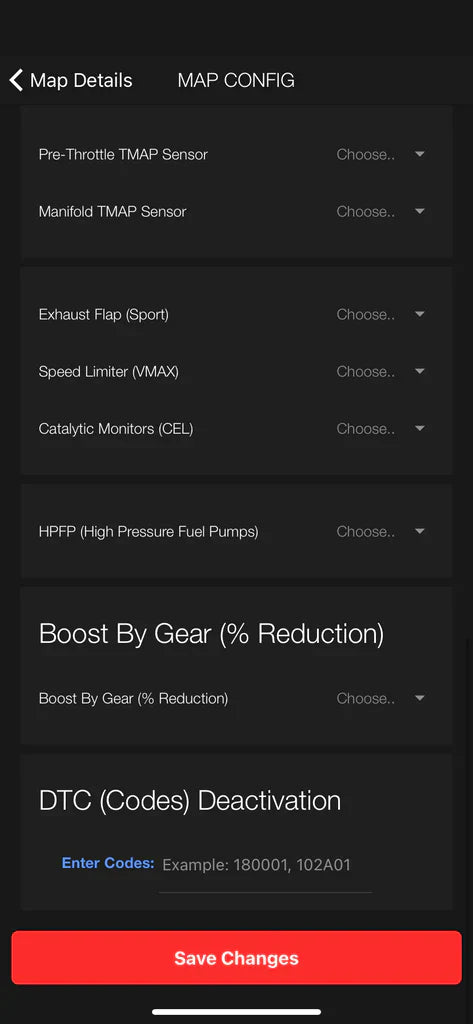

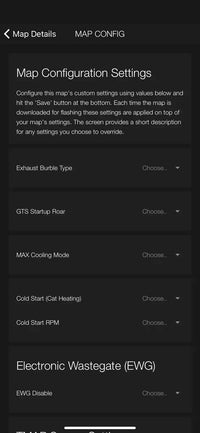

Map Customization through Map Editor
Transmission Torque Limiter disabled in software
Exhaust Burble adjustments on any map (OTS & Custom)
Max Cooling Mode
Cold start (cat heating on startup) removal for quieter cold start
Exhaust Flap Adjustments (Sport Mode)
Top Speed Limiter Removal
Boost By Gear % Reduction
Re-calibrated Sport Gauges on iDrive
Maps for upgraded turbos
E85/blend, RaceGas, and Meth Injection Tuning
Custom Throttle Mapping
Backend Flash Maps for Piggyback Use
Note: F9X models with November 2019 iLevel Software require Bench Unlock. For vehicles produced after 6/2020, you must use the Femto Bench Unlock process.
