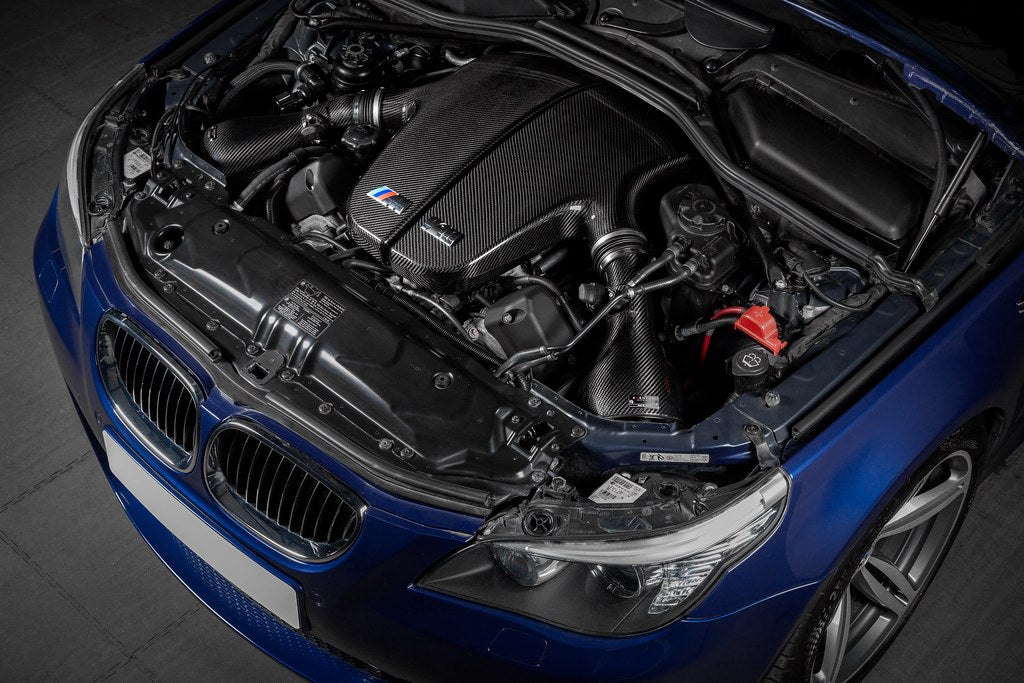

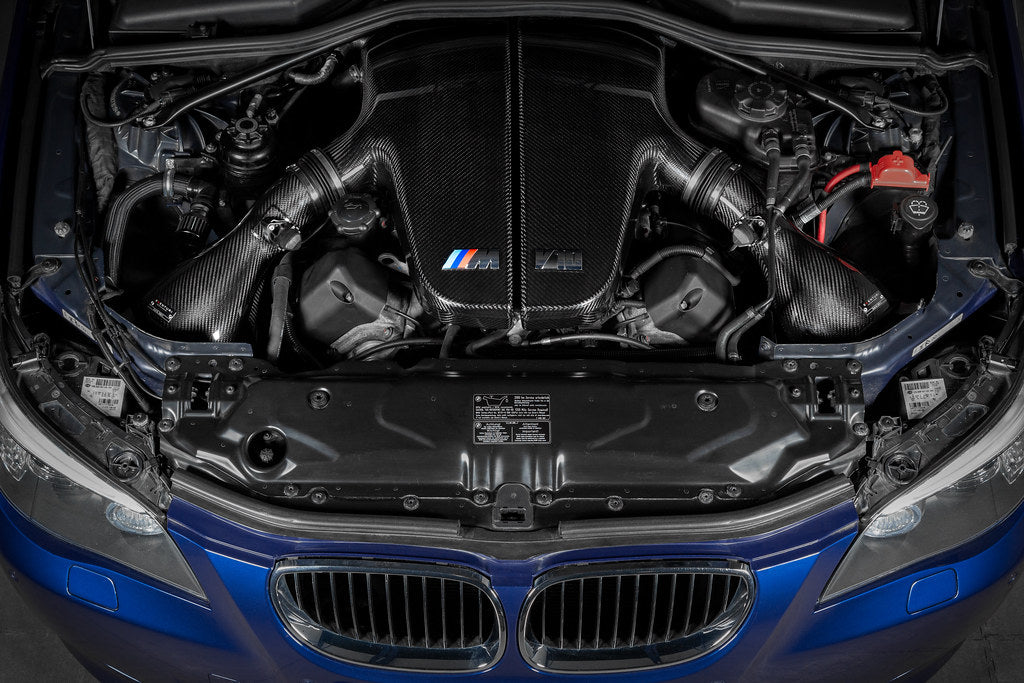

Eventuri's updated E60/E63 M5/M6 intake system retains the performance gains of their original system and benefits from the experience we have gained over the years to accomplish a more integrated design. By integrating the MAF tube into the carbon housing and replacing the OEM flexible hoses with our custom made shorter versions, the system now has a seamless aesthetic. This intake is designed to make a positive impact to the whole driving experience. By taking advantage of aerodynamic principles and using computational fluid dynamics to optimize the airflow, we have engineered an intake system which delivers on all fronts – sharpened throttle response, more torque and power, improving drive-ability and of course, an intoxicating V10 induction sound.
The Eventuri Difference
The S85 Eventuri system uses our Patent Pending Carbon fiber Housing which provides an aerodynamically efficient airflow path from the filter to the MAF tube. Not just another cone filter with a heat shield but a unique design which invokes the Venturi affect.

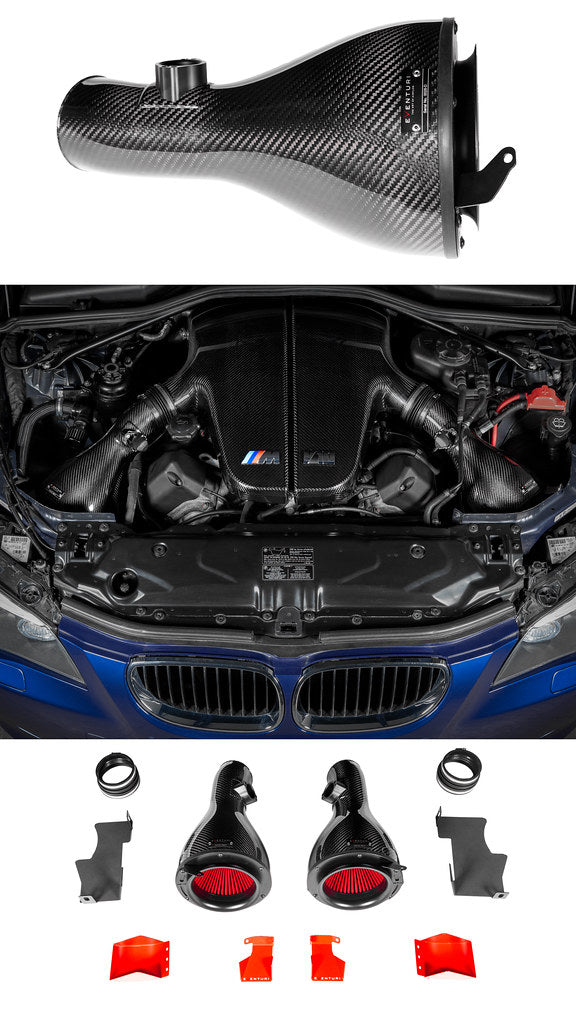

The Eventuri E6X M5/M6 intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards.

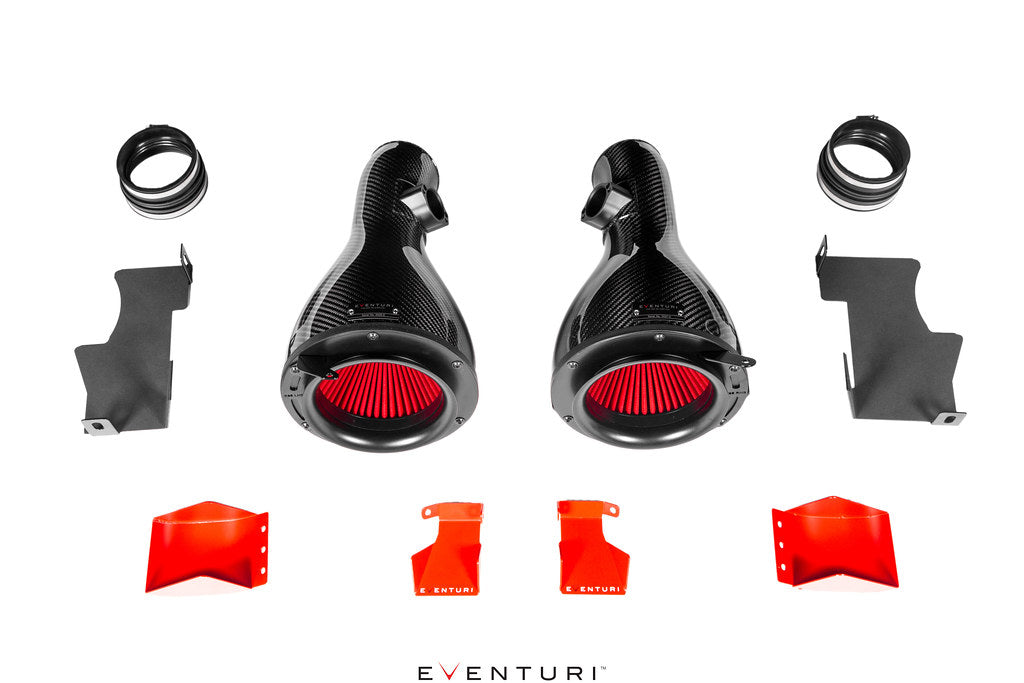

Intake Components
- 100% Pre Preg Carbon Fiber Housings with Integrated MAF Tubes
- Custom High Flow Air Filters

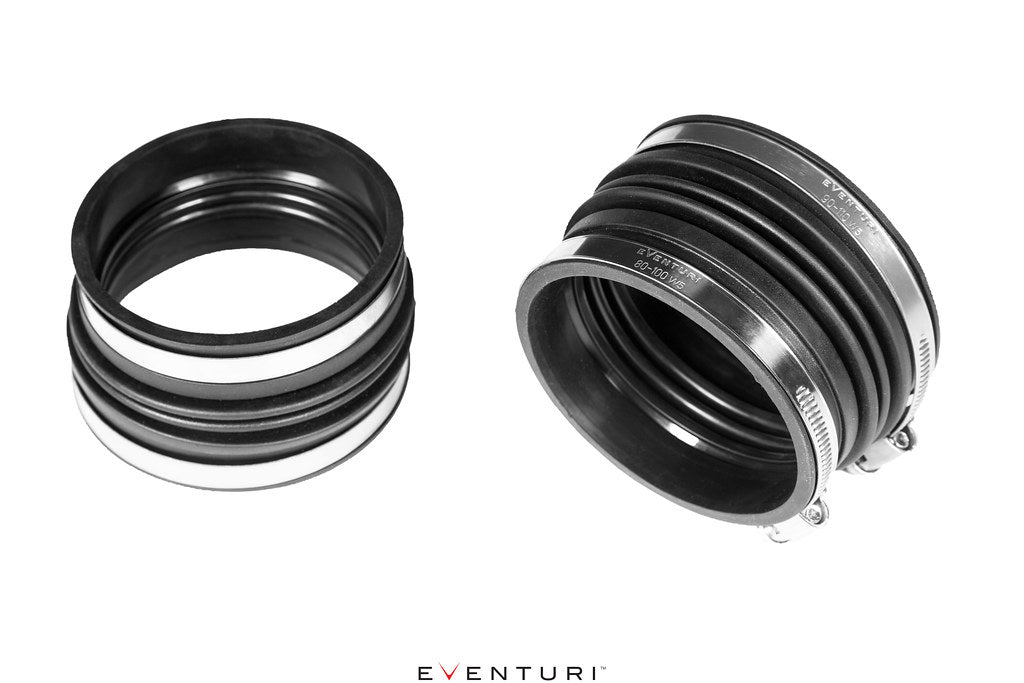

- Custom made EPDM Couplers
- CNC Machined Secondary Air Flow Breather Adapter
- Aluminum Intake Cowls
- Laser Cut Mounting Brackets
- Laser Cut and Neoprene Lined Heat Shields
- Coated Aluminum Upper and Lower Air Scoops
- OEM Spec Hose Clamps with High Quality Silicon Couplers
- OEM Quality Anti Vibration Mounts

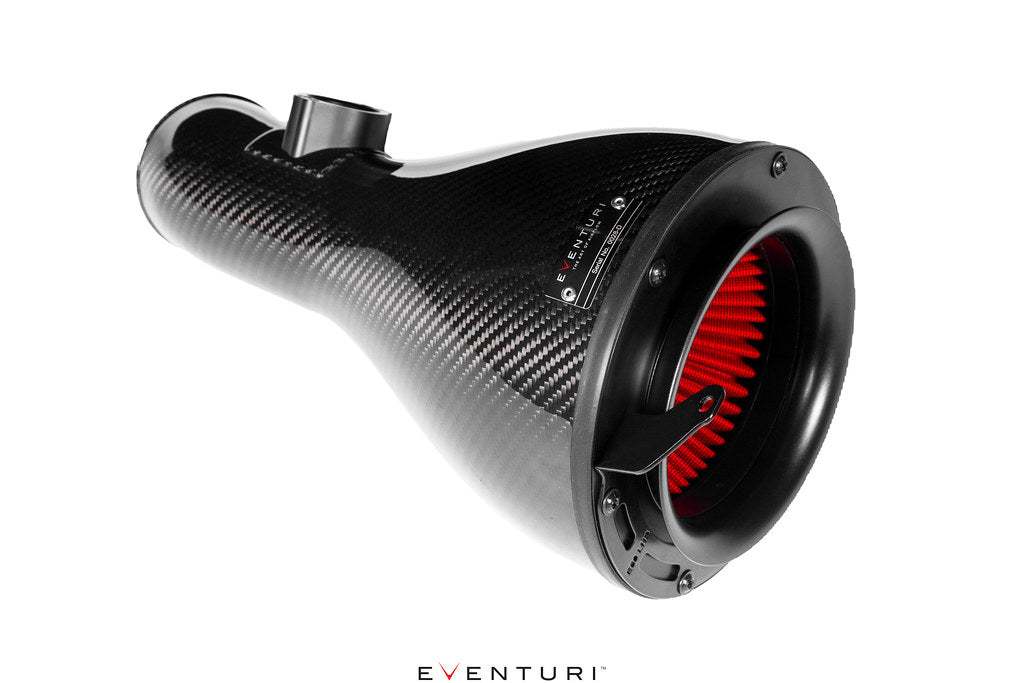

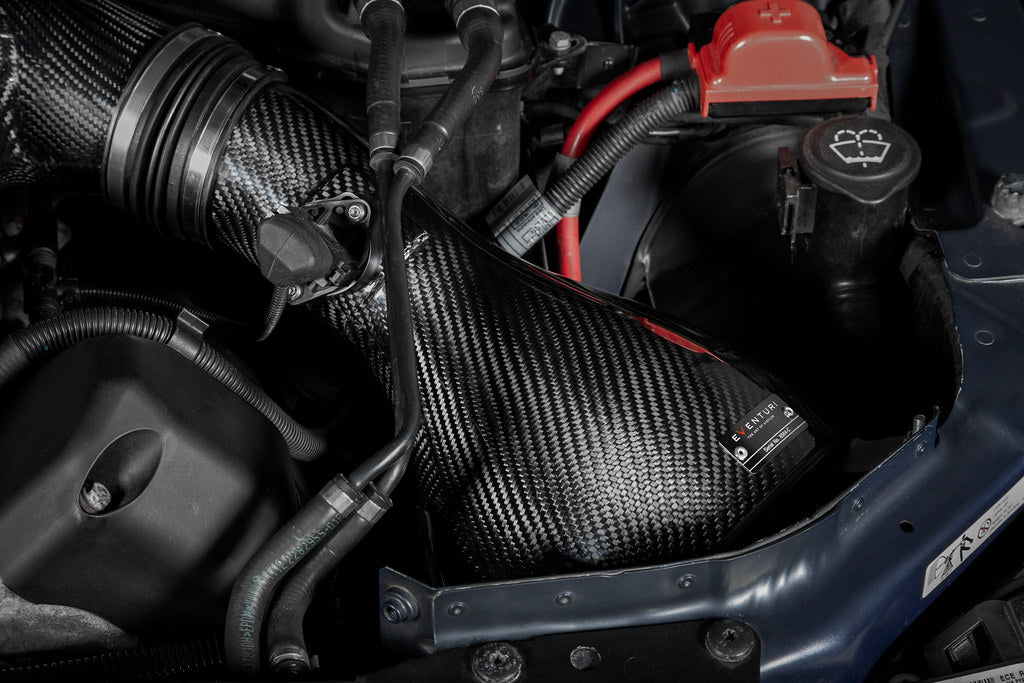

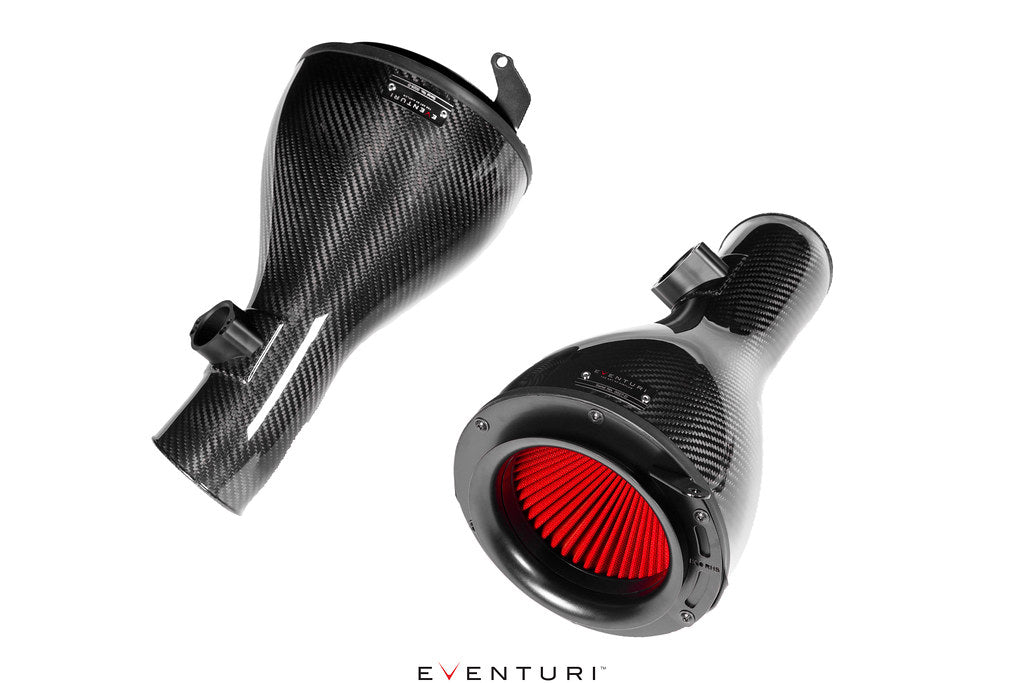

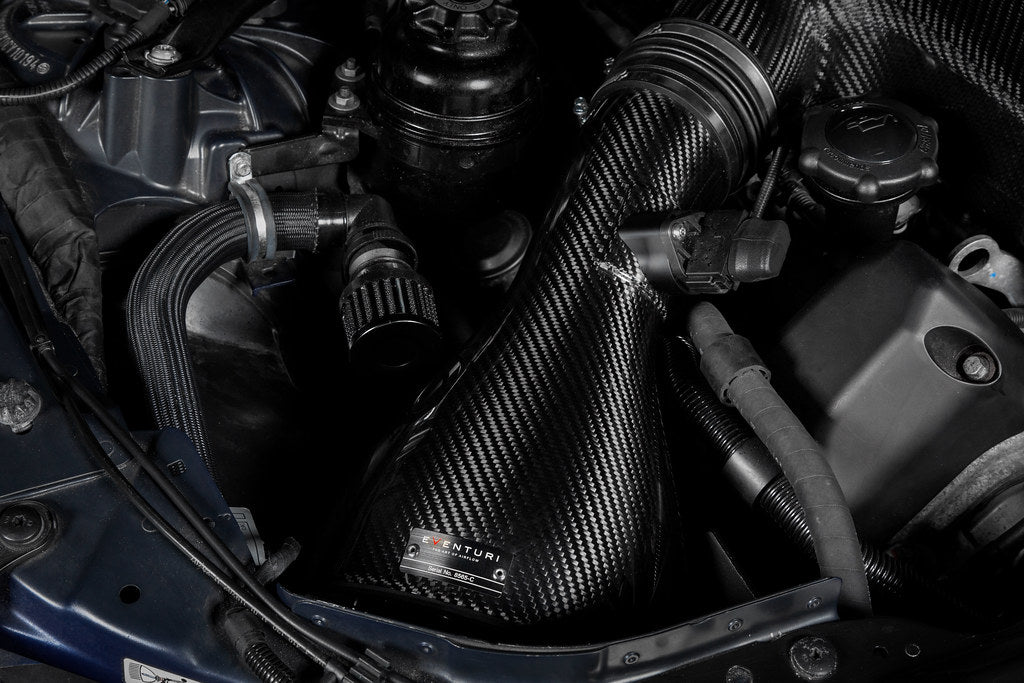

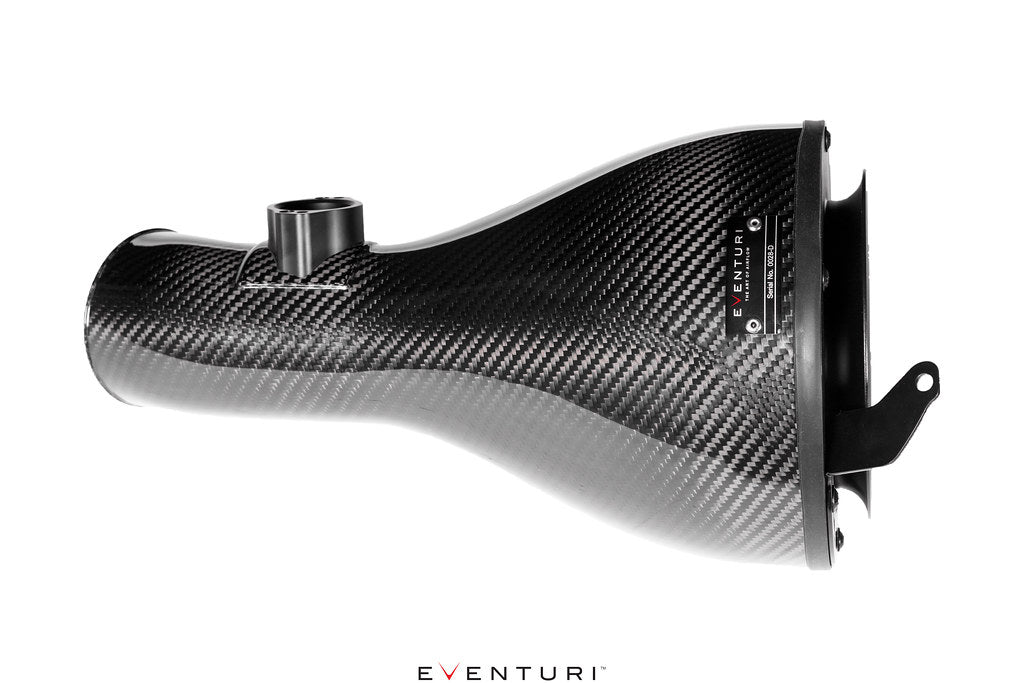

Carbon Intake Housing Assembly
Made from 100% Prepreg Carbon Fiber of the highest quality, the craftsmanship on our filter housings is second to none. This encapsulates the filter and is mated to an aluminum inlet cowl to ensure a smooth inlet flow path.

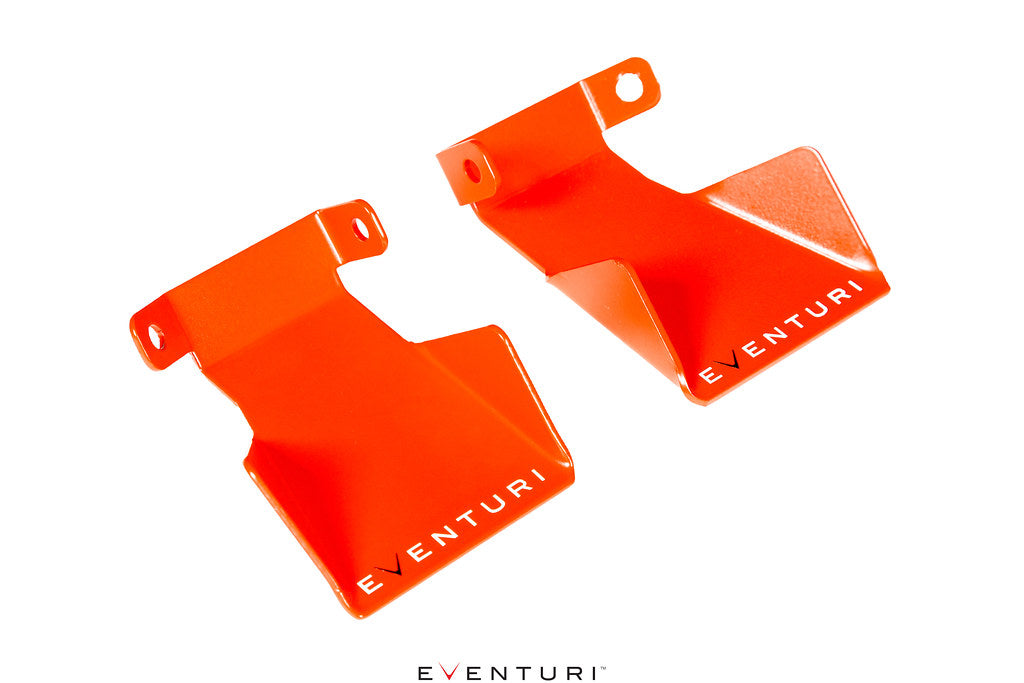

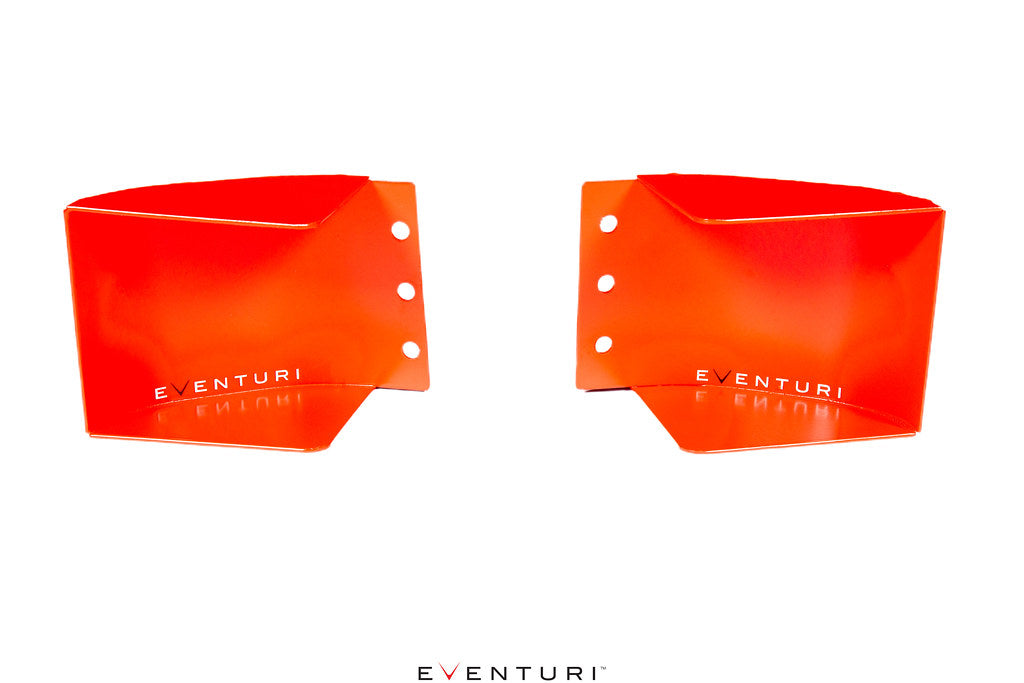

Air Scoops
Laser cut from aluminum and then powder coated, there are 2 scoops which located behind the front nose grills and another 2 which locate in the lower brake ducts. The front scoops are curved to smoothly direct ambient air into the stock ducting which then displace heated air from the intake area. The 2 lower scoops direct ambient air directly into the mouths of the intakes.
MAF tubes
The MAF tubes are CNC machined from aluminum and then anodized. The MAF boss itself is machined from an engineering plastic to minimize the heat soak into the sensor through conduction. All dimensions are tightly toleranced to ensure the MAF sensor works as intended.
Heat Shields
There are 2 aluminum heat shields with neoprene lining. They locate on the engine side of each intake and effectively deflect hot air from the radiator - especially when the fan comes into operation.
Mounting Brackets
The mounting brackets are precision made to ensure a secure and exact fit. Both housings secure to anti-vibration mounts and the third bracket is to secure the washer filler on the E6X M5/M6.

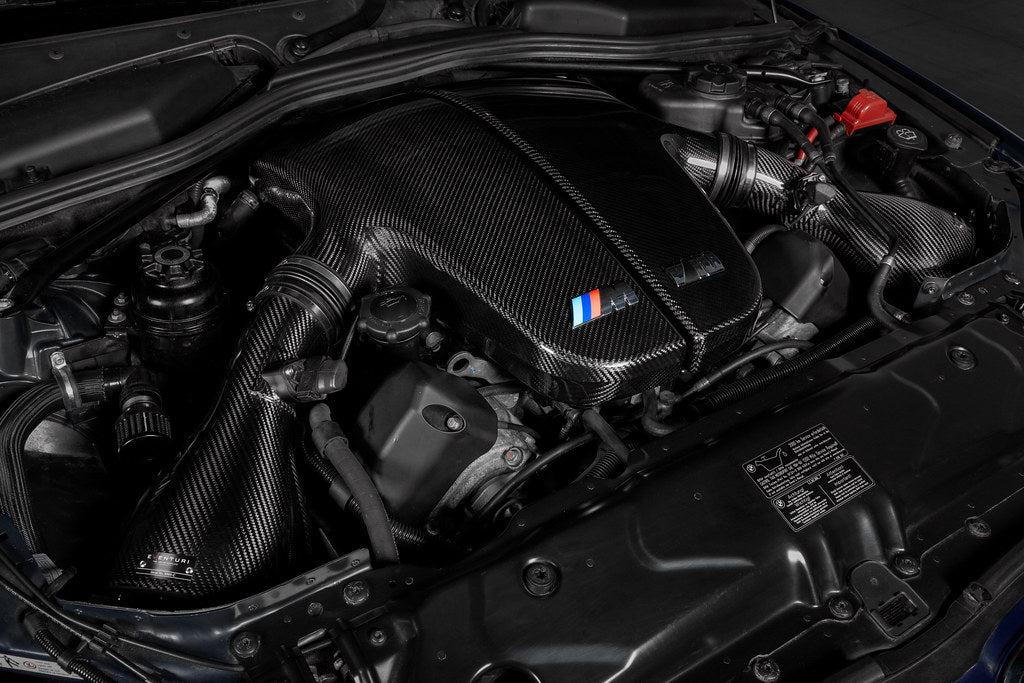

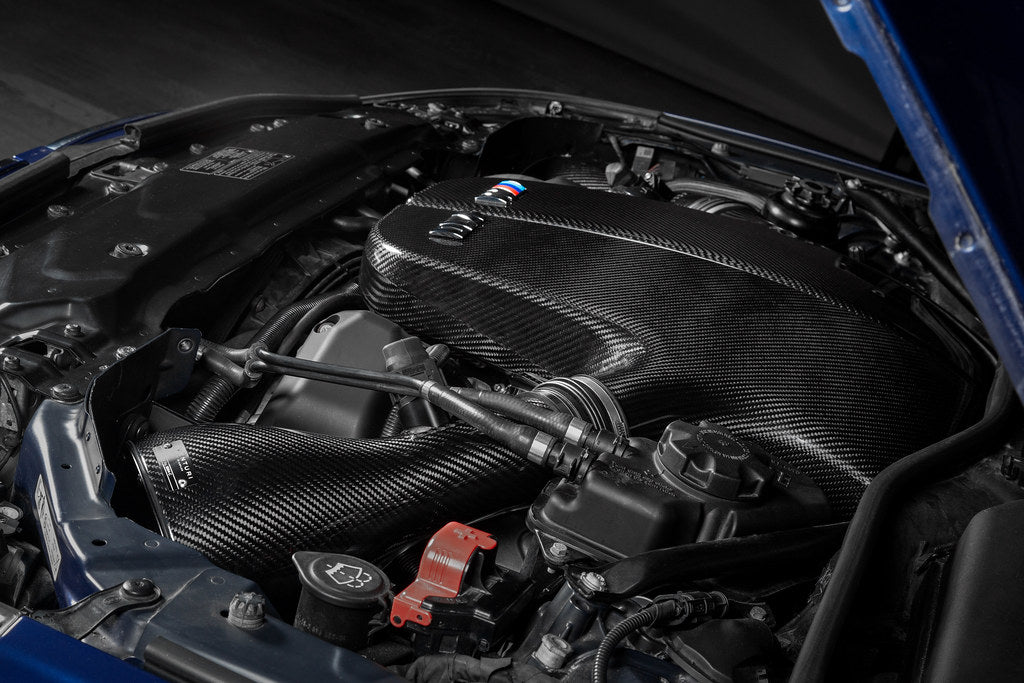

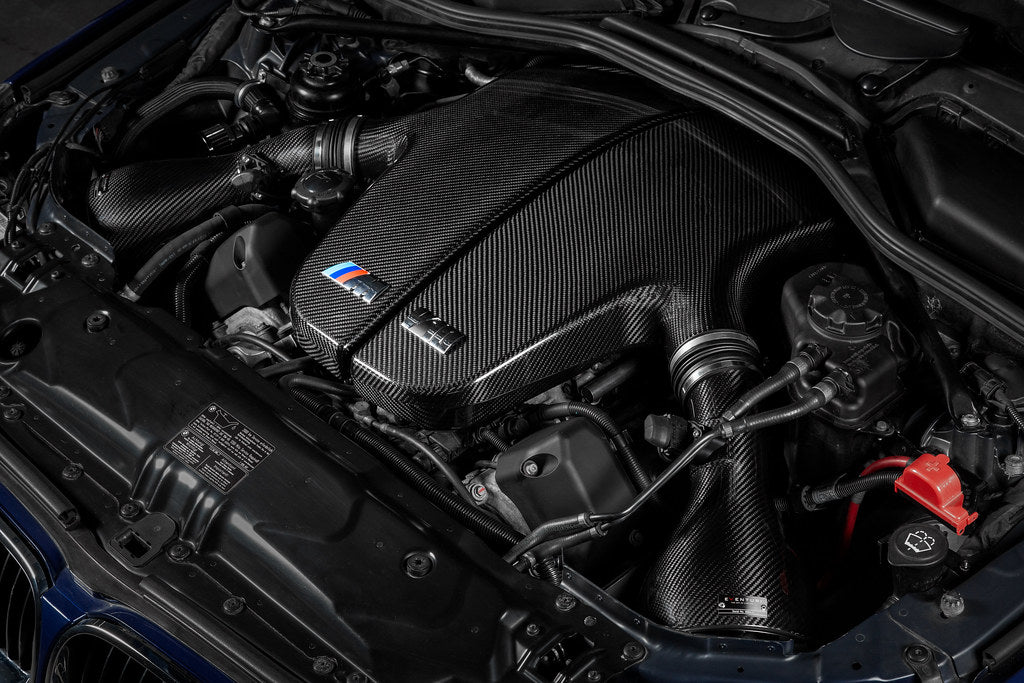

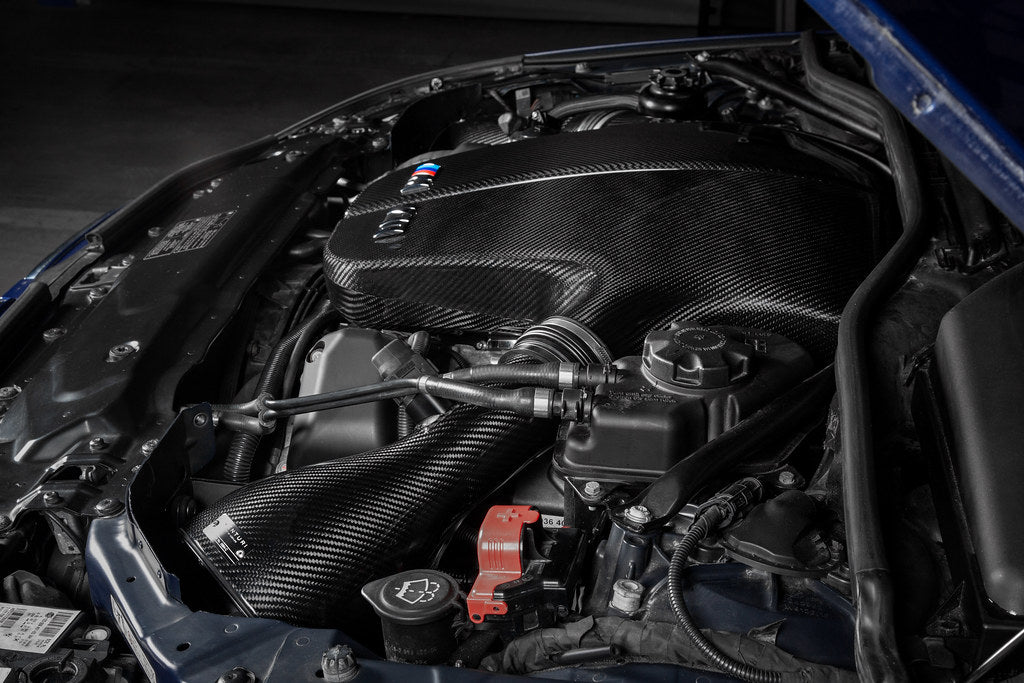

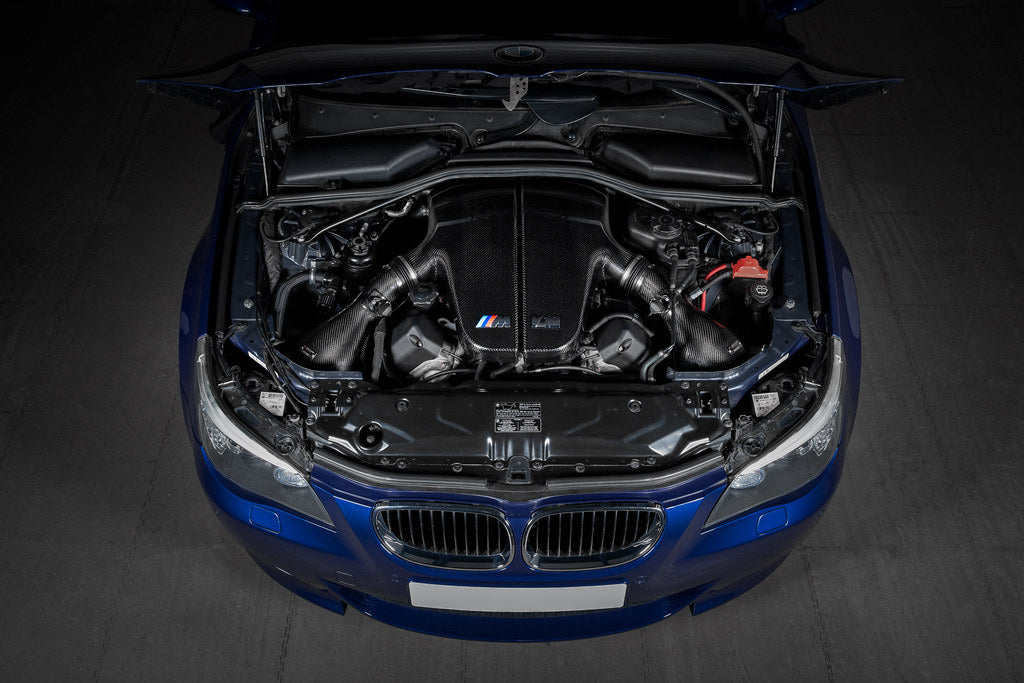

Note: Some images shown with optional S85 Carbon Fiber Plenum
Vehicles Supported
BMW E60 M5
BMW E63/E64 M6
