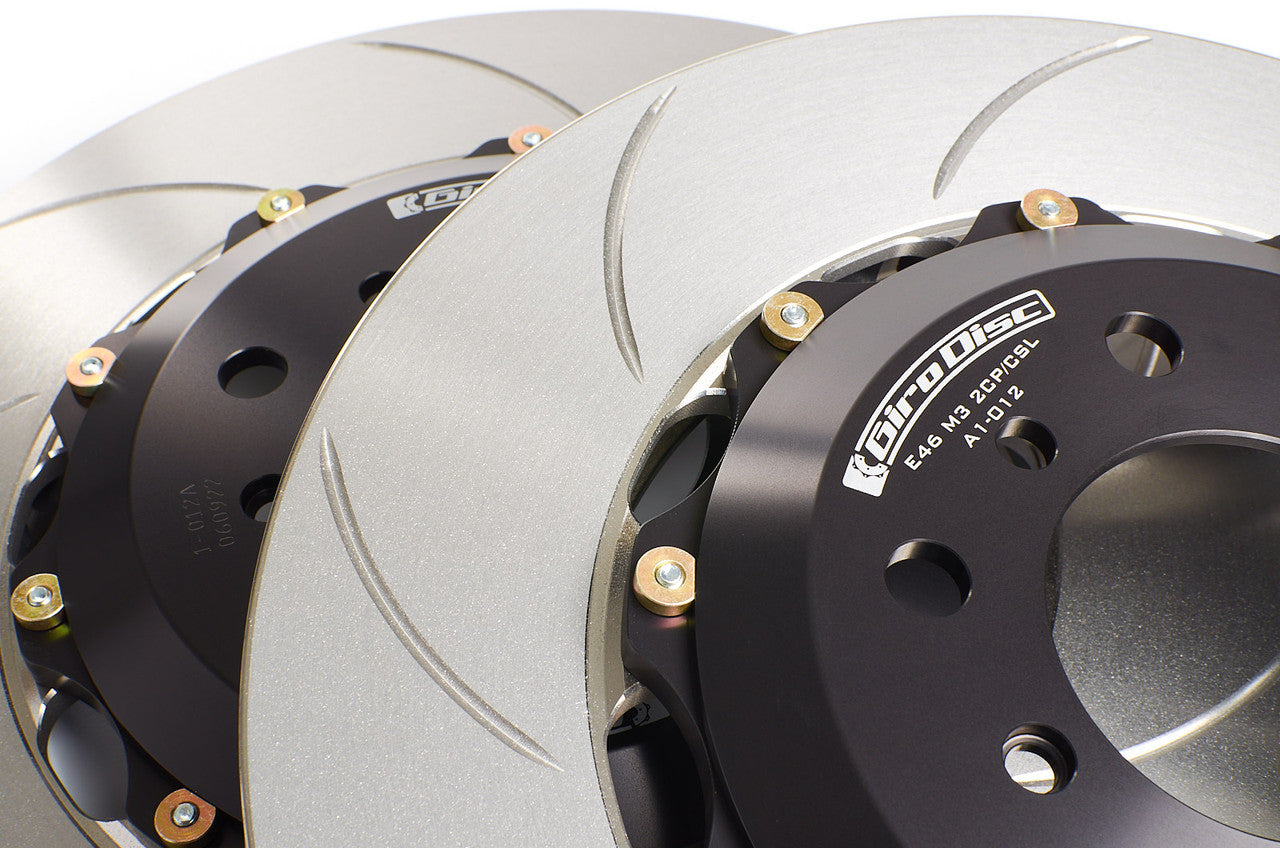

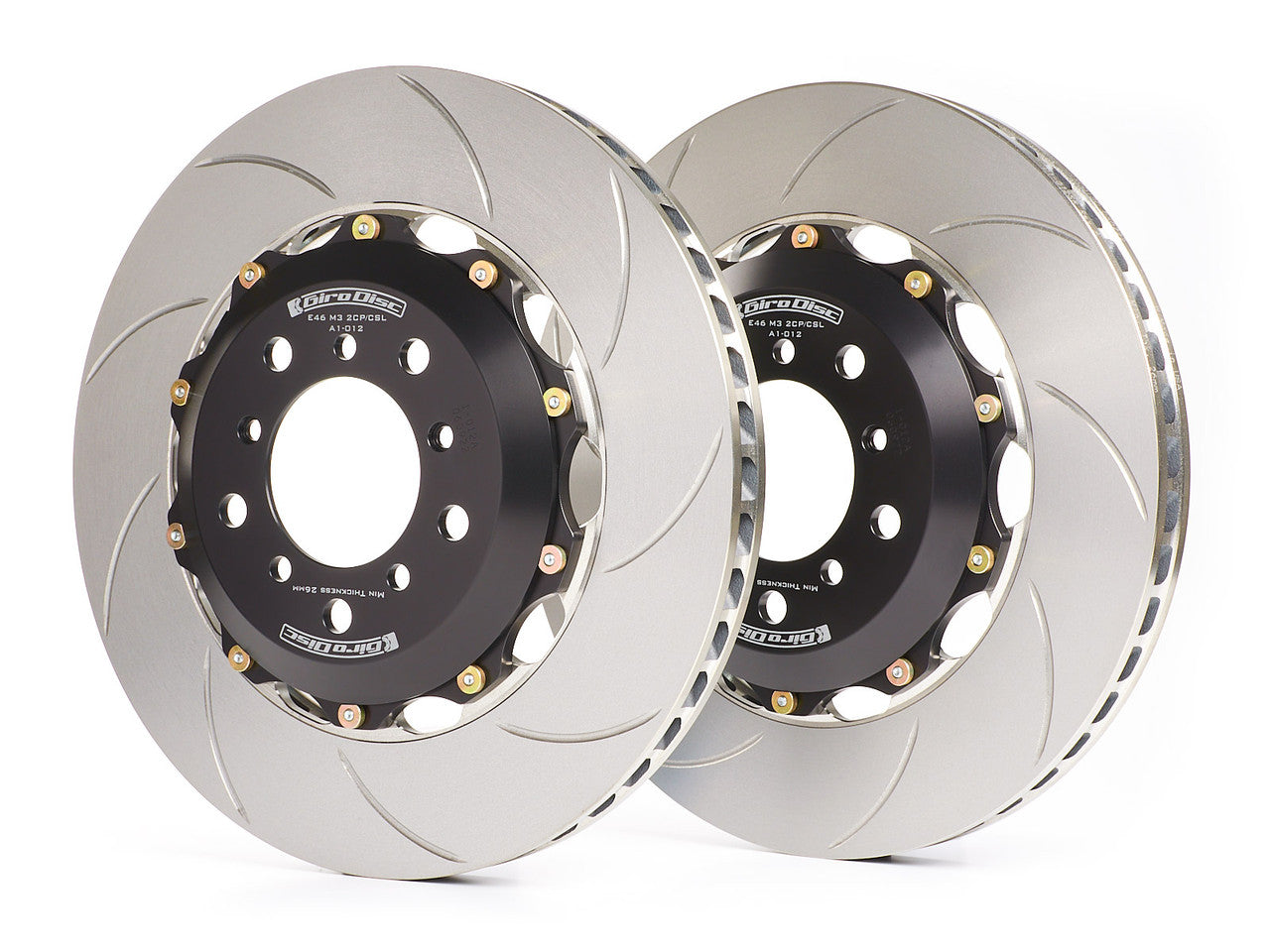

GiroDisc - 2-Piece Performance Front Rotors - BMW E46 M3 ^Sale

The Girodisc system is a direct replacement for the OE disc. No modifications are necessary. The disc will bolt directly to the car and work with OE calipers perfectly. By upgrading your brakes with lightweight high performance replacements as opposed to a big brake kit, your factory bias is maintained as well as your ABS efficiency.

The central hat section of our rotor is made from strictly U.S. sourced 6061-T6 aircraft specification aluminum.  The disc is made from our own proprietary cast iron, poured in the USA and machined from start to finish in house at Girodisc.  The rotor utilizes 48 curved directional vanes, developed in racing to act as a centrifugal pump to force cooling air through the disc.

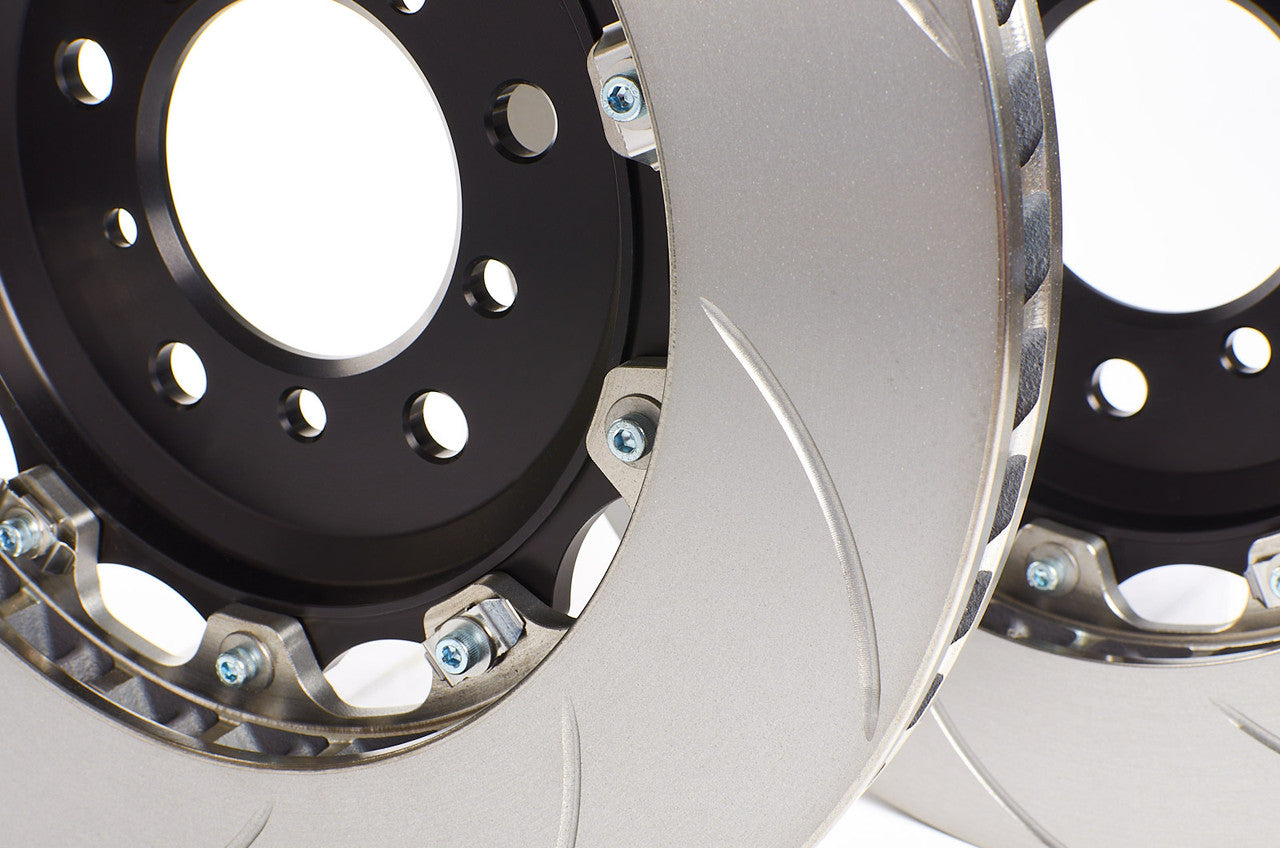

The rotor and hat have a floating mount system, which utilizes 8 or 10 high strength alloy steel drive pins, manufactured by Girodisc in the USA to our own specifications and cadmium plated for a long lasting corrosion resistance. These pins take the load from braking actions while maintaining the axial and radial float between the hat and disc. The pins are secured by grade 12 cap screws with hardened washers. In order to keep the rotors from making noise when cold, the pins are mounted with anti-noise spring washers on the rotor side which allow the rotor to grow with heat expansion but eliminate the rattle and noise associated with floating rotors. This float also allows the rotor to self center between the pads.

GiroDisc E46 M3 rotors have been designed with common aftermarket caliper setups in mind, in addition to the stock sliding calipers available on ZCP and CSL cars. Combo setup examples include the Brembo calipers from both the Porsche 996 and Megane RS swaps.

Diameter: 345mm
Thickness: 28mm
Weight: 17.5 lbs per rotor assembly

Sold/priced per pair. Once the Girodisc system is in place, simply replace the cast iron rotor rings when needed.

Vehicles Supported
BMW E46 M3
