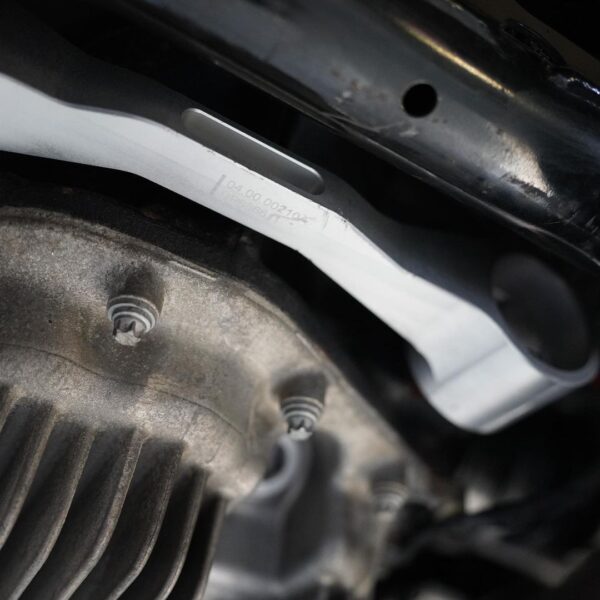

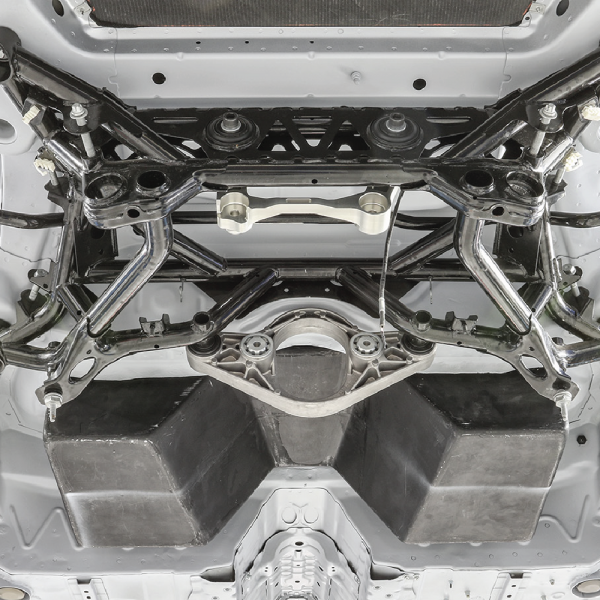

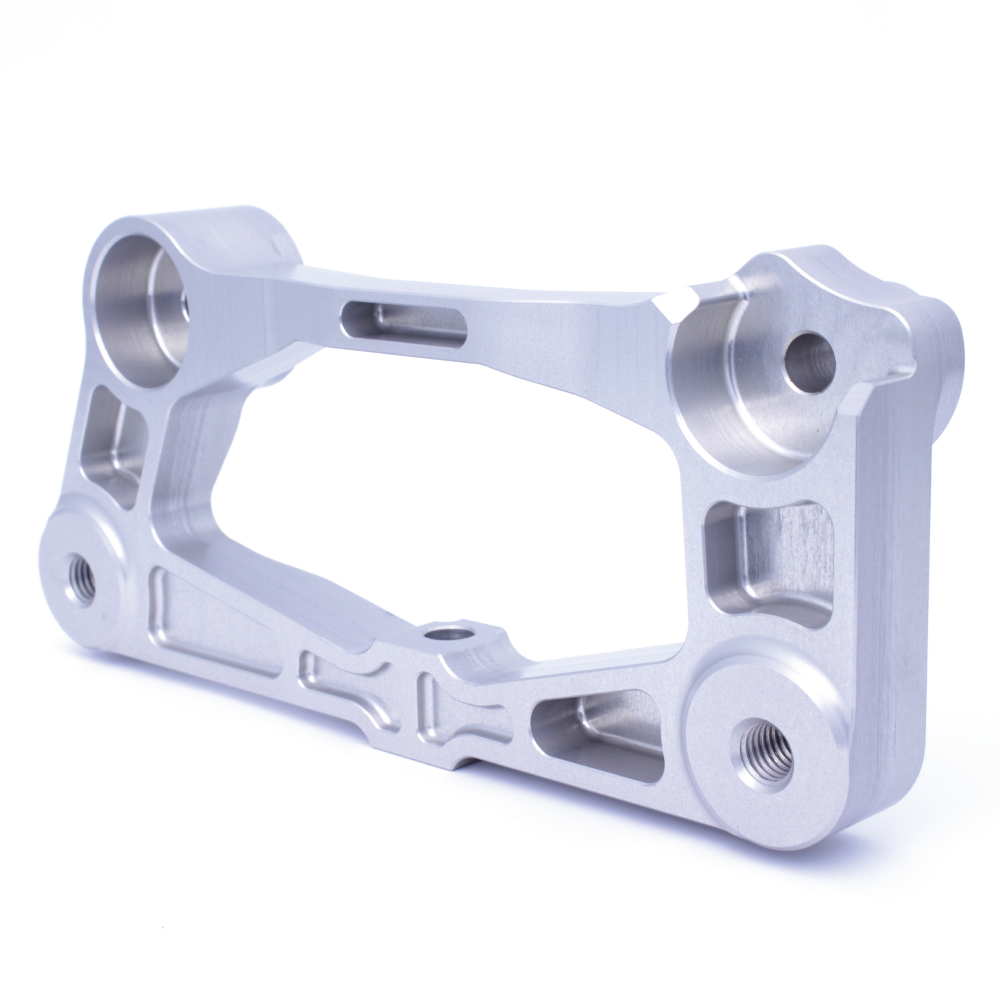

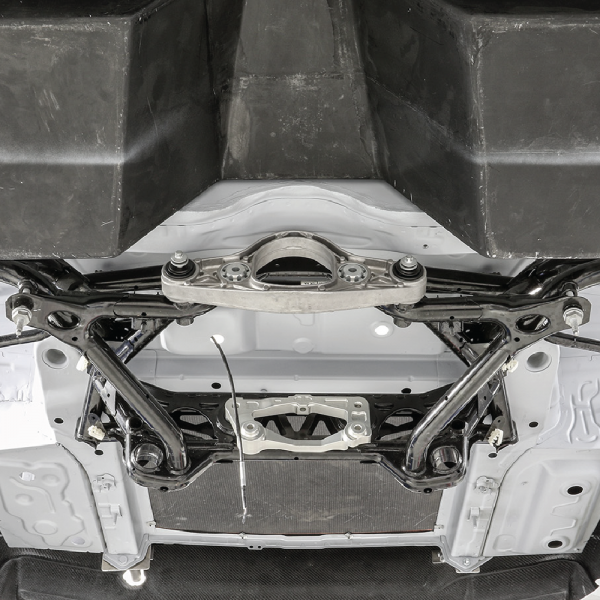

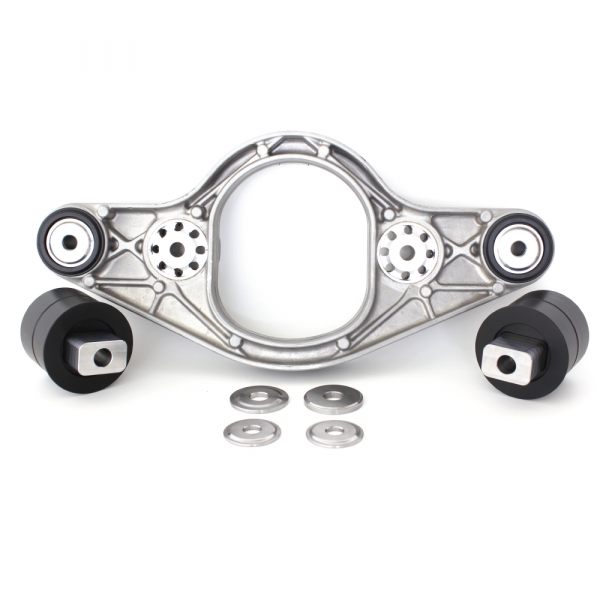

Improve your differential mounting by creating 2 mounting points, combined with replacing the OEM rubber mounts. The OEM differential mount has only 1 rear mounting point. If higher strength is needed, especially for motorsport usage, a second mounting point can be used with KMP's BMW F-Series (M2/M3/M4) differential bracket kit.
Our BMW differential mounting sets are designed to keep one degree of freedom with sliding bushes. You will have all benefits from a rigid mount, but avoid the high forces which normally occurs with a 100% rigid mount. The POM bushes will reduce peak forces, but the steel inserts will allow you to mount the differential with appropriate bolt torques (no deformation of the material). This type of bushings can absorb slight chassis deformations (eg. when hitting curbs).
Offset type

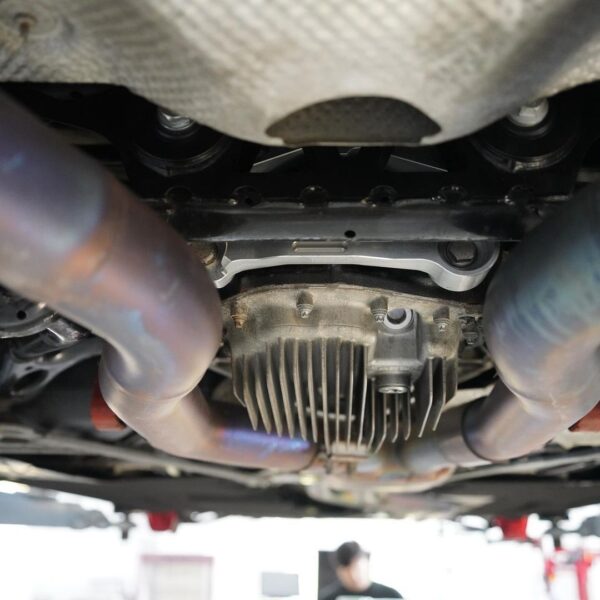

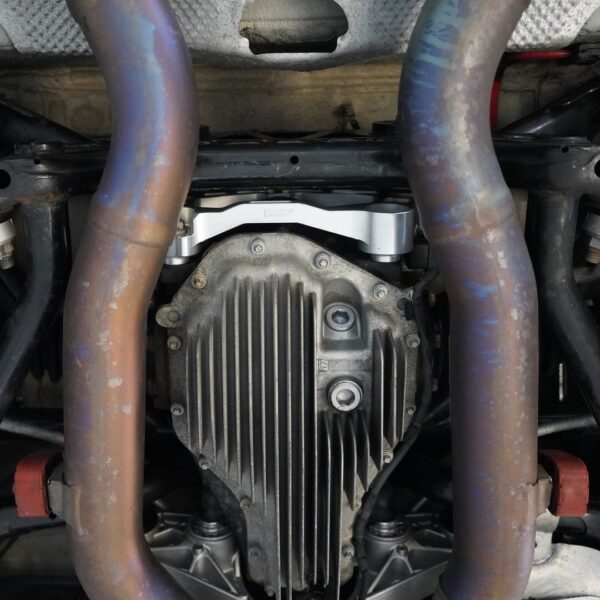

Usually when the car has been lowered, the driveshafts angle will change as well. This bracket kit will lift the differential by 10mm (towards the subframe). With this height adjustment, the driveshafts/axles will be more horizontal again, which will improve the running life of these shafts.

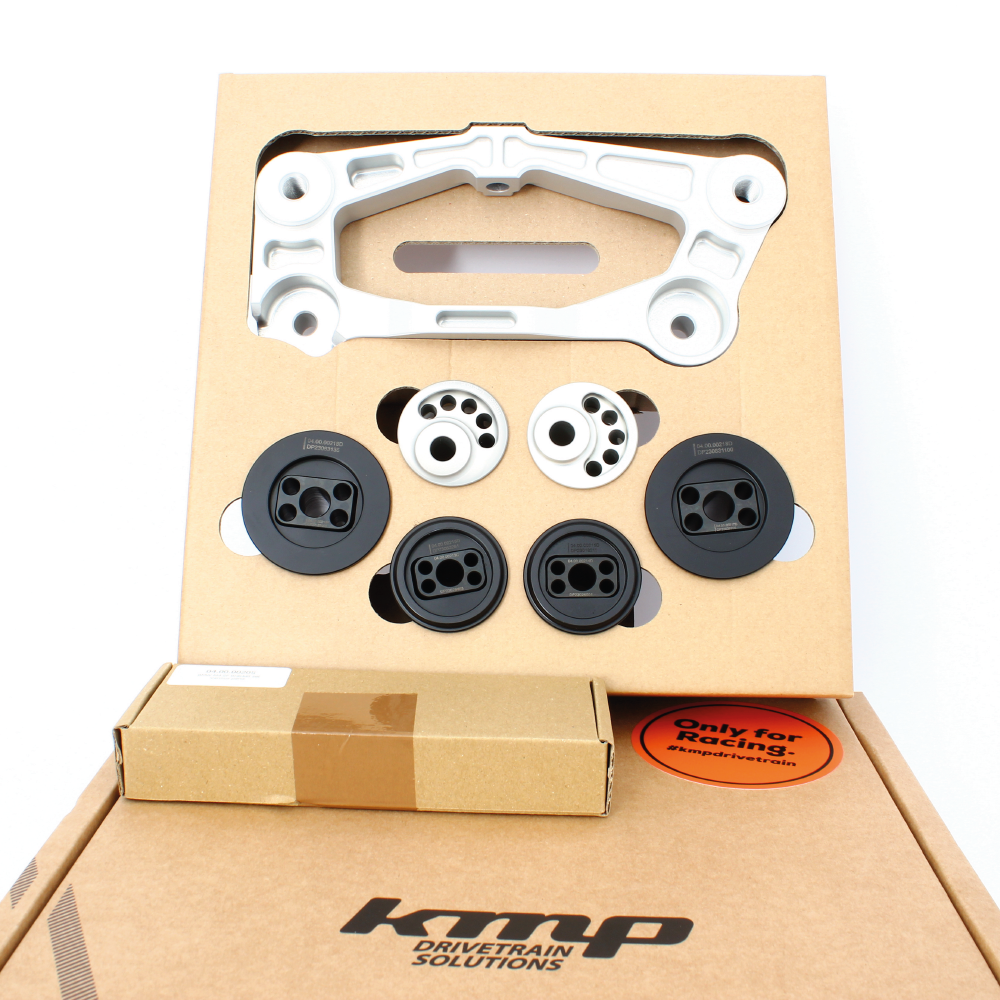

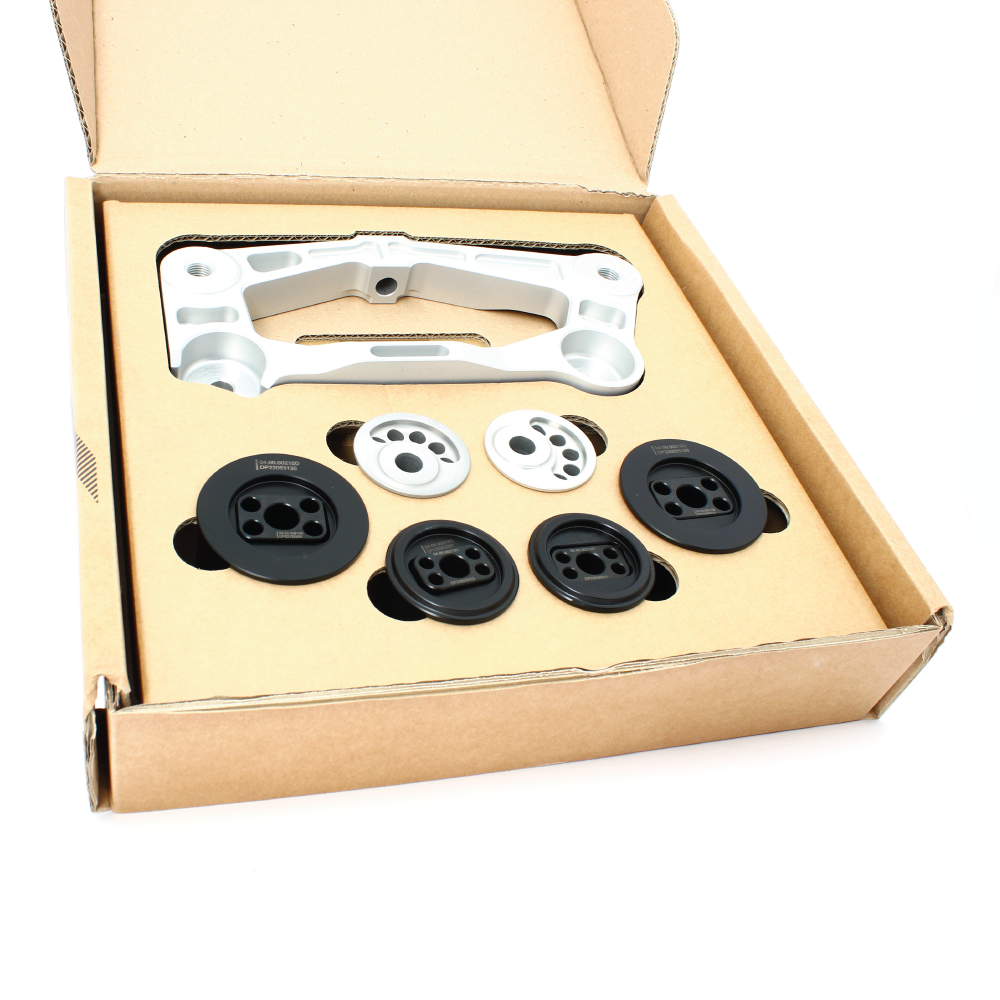

This complete set contains all you need (washers, bolts etc.) to upgrade your differential mounting.
Vehicles Supported
BMW F87 M2 Competition
BMW F8X M3/M4, including Competition
