The NTR R1 system offers unrivaled performance and value with a design that gives drivers a wide range of effective, easy to use damping control.
2-Way combined damping adjustment. Developed from our full race suspension and sharing many components with the R3 system, the R1 offers exceptional performance, reliability and value for both road and track use. Widely praised by drivers around the world and respected for out-performing considerably more expensive suspension kits.
R1 kits provide uncompromising quality, reliability and performance without the need for a remote canister. Fade-resistant and hand built with ultra-low friction components, the R1 shock is made to last on the road and track. The high-grade materials protect against corrosion whilst reducing weight. Every R1 kit is custom built, sprung and fully serviceable. Titanium and hard-anodized parts are hand built to last not only season after season, but also the harshest of winters.
All Nitron shocks are hand made to order to each individual customer's requirements. Lead times are normally 2 -3 weeks, but at certain times may be slightly longer. If you would like a more accurate delivery time please inquire beforehand.

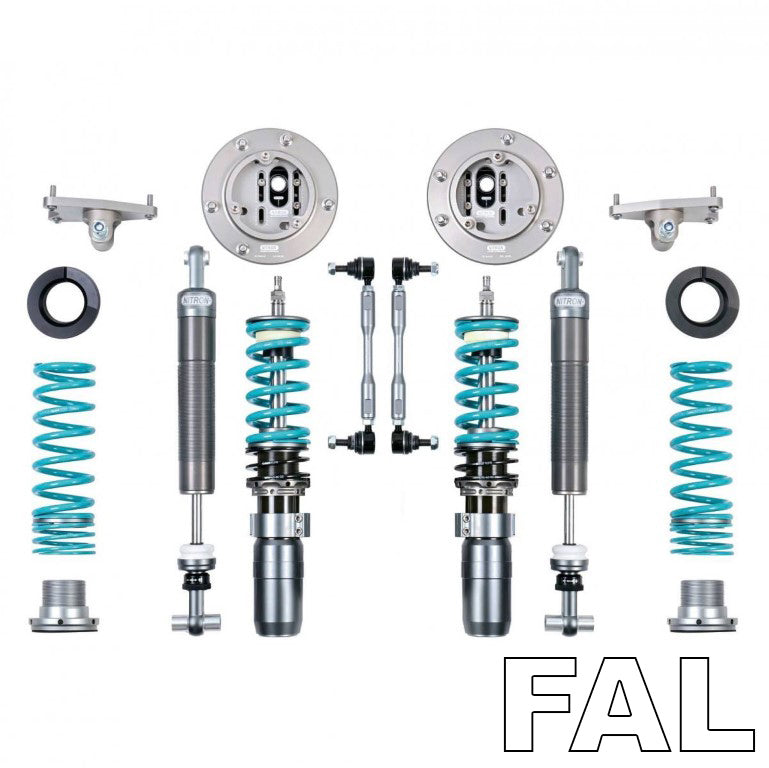

Front Axle Lift (FAL)
FAL is a hydraulic based system fitted on the front axles and allows ~1" lifting of the vehicle. The hydraulic cylinder unit is located on top of the coilover body between the spring and spring perch. This allows for instant lift (within ~5 seconds) and operates completely independent of the shock/strut resulting in no unwanted additional suspension movement while driving. This allows vehicles with low ground clearance to clear obstacles (including driveways and trailer ramps) easily and can be activated from inside the vehicle via user-mounted switch.
Features
- Height adjustable (F/R: 20-25mm)
- 2-Way Combined Adjustment
- Combined 24 Clicks
- Front Adjustable Camber Plates included
- Nitron Springs & Helper springs included
- Fast Road Spring Rates (F: 685 lbs-in, CR: 400 lbs-in DR: 742 lbs-in)
- Track Day Spring Rates (F: 799 lbs-in CR: 513 lbs-in DR: 913 lbs-in)
Specifications
- Preload Adjuster
- 40/46mm Piston design
- Nitrogen Gas Charged
- 14/16/22mm Piston Rod
- Coilover Rear Suspension Type
- Full Alloy Body
Nitron boasts over a decade of success, celebrating prestigious race wins and lap records around the world. Designed, developed and manufactured in the UK, Nitron’s worldwide headquarters are based in England’s prestigious ‘Motorsport Valley’, Oxfordshire.
All Nitron shocks are hand-built to order to each individual customer's requirements. Lead times are normally 2-3 weeks, but at certain times may be slightly longer. If you would like a more accurate delivery time please inquire beforehand.
Vehicles Supported
BMW F87 M2 (excluding Competition)
